Steering Control Module: Service and Repair

Remove/Install Electronic Stability Program (ESP) Control Module

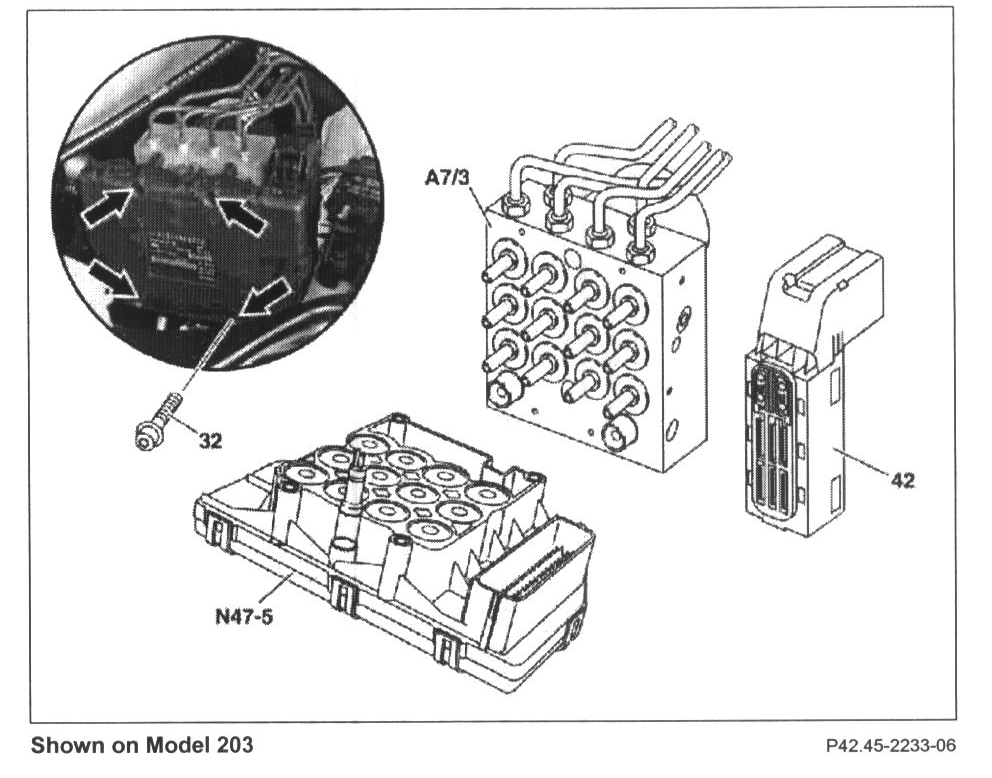

Shown On Model 203:

1 Ignition OFF
2 Unlock and remove coupling (42) at ESP control module (N47-5)
3 Unscrew screws (32) from control module
4 Remove ESP control module (N47/5) from the hydraulic unit (A7/3) from the front
5 Install in the reverse order
