Electrical Diagrams

Steering Column Module Control Module PE46.10-U-2101BA
- control module N80

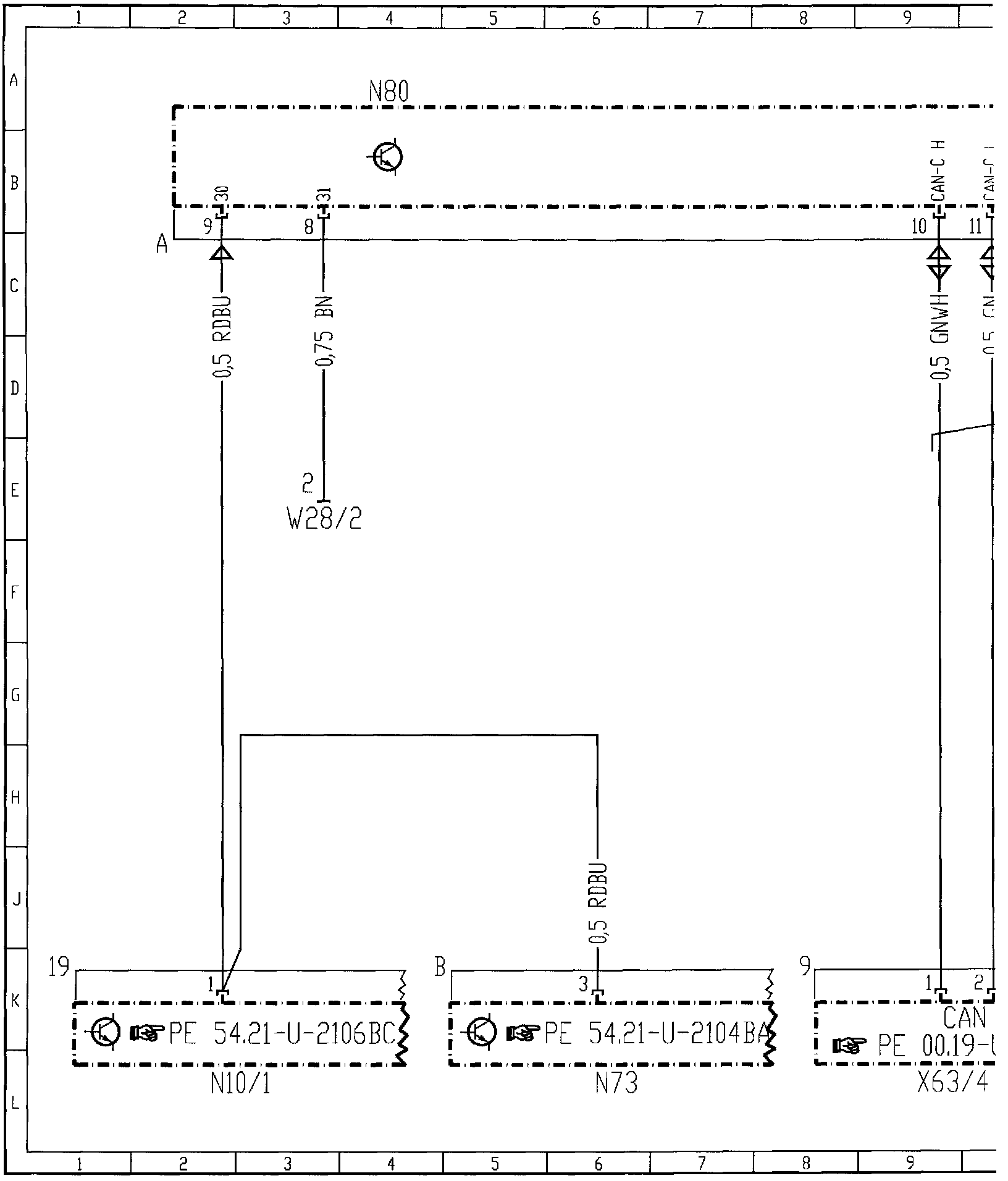

Diagram, Part 1:

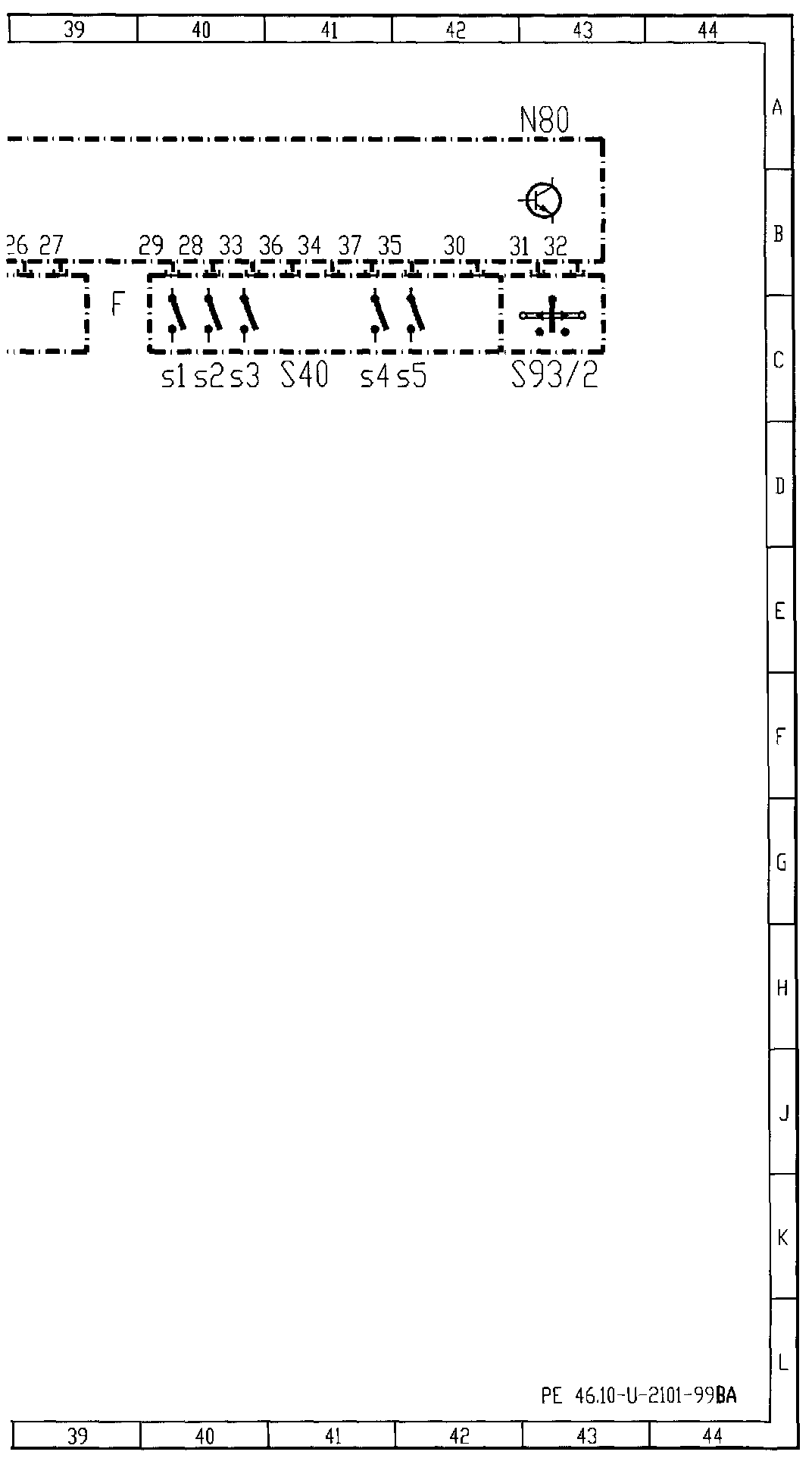

Diagram, Part 2:

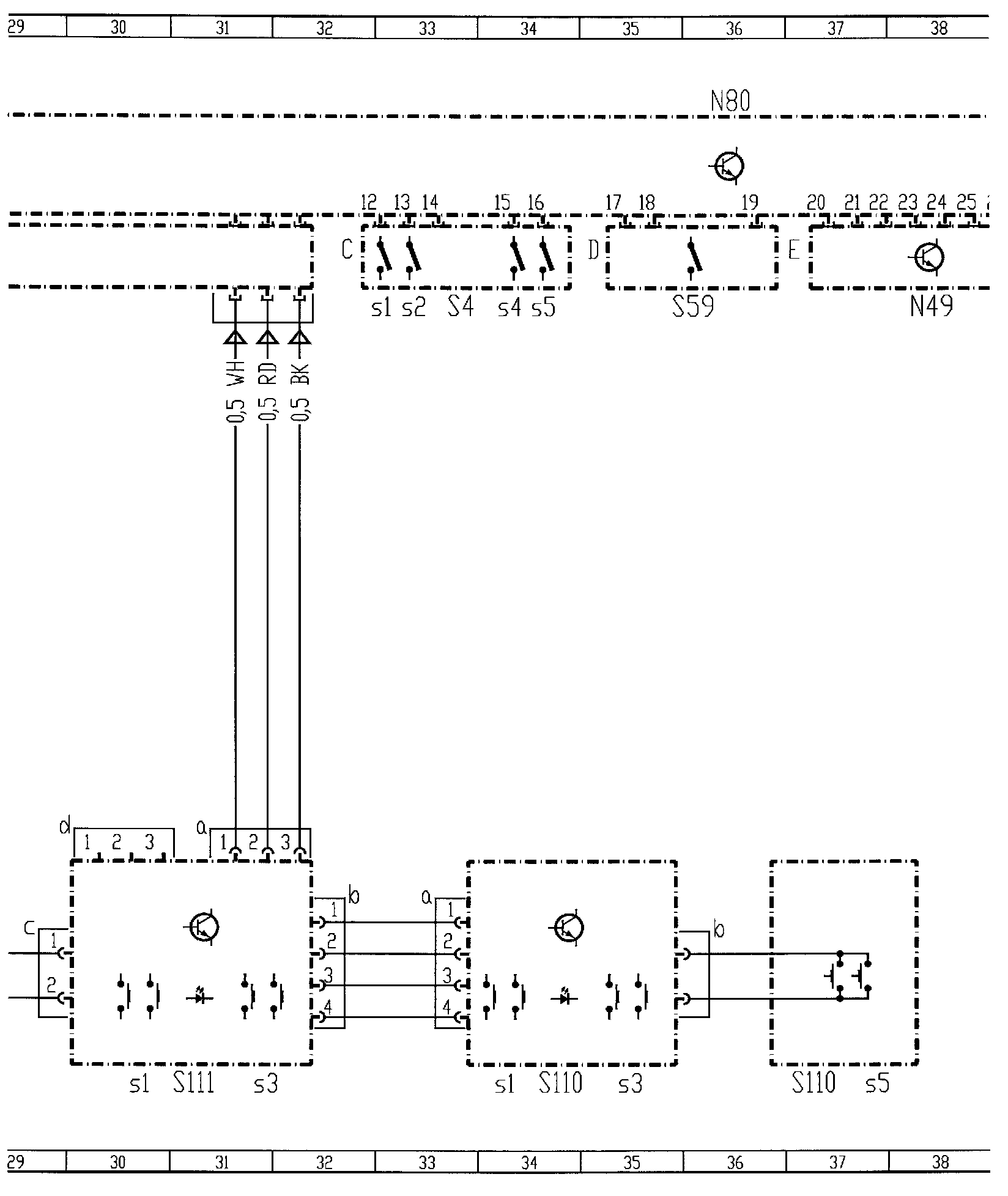

Diagram, Part 3:

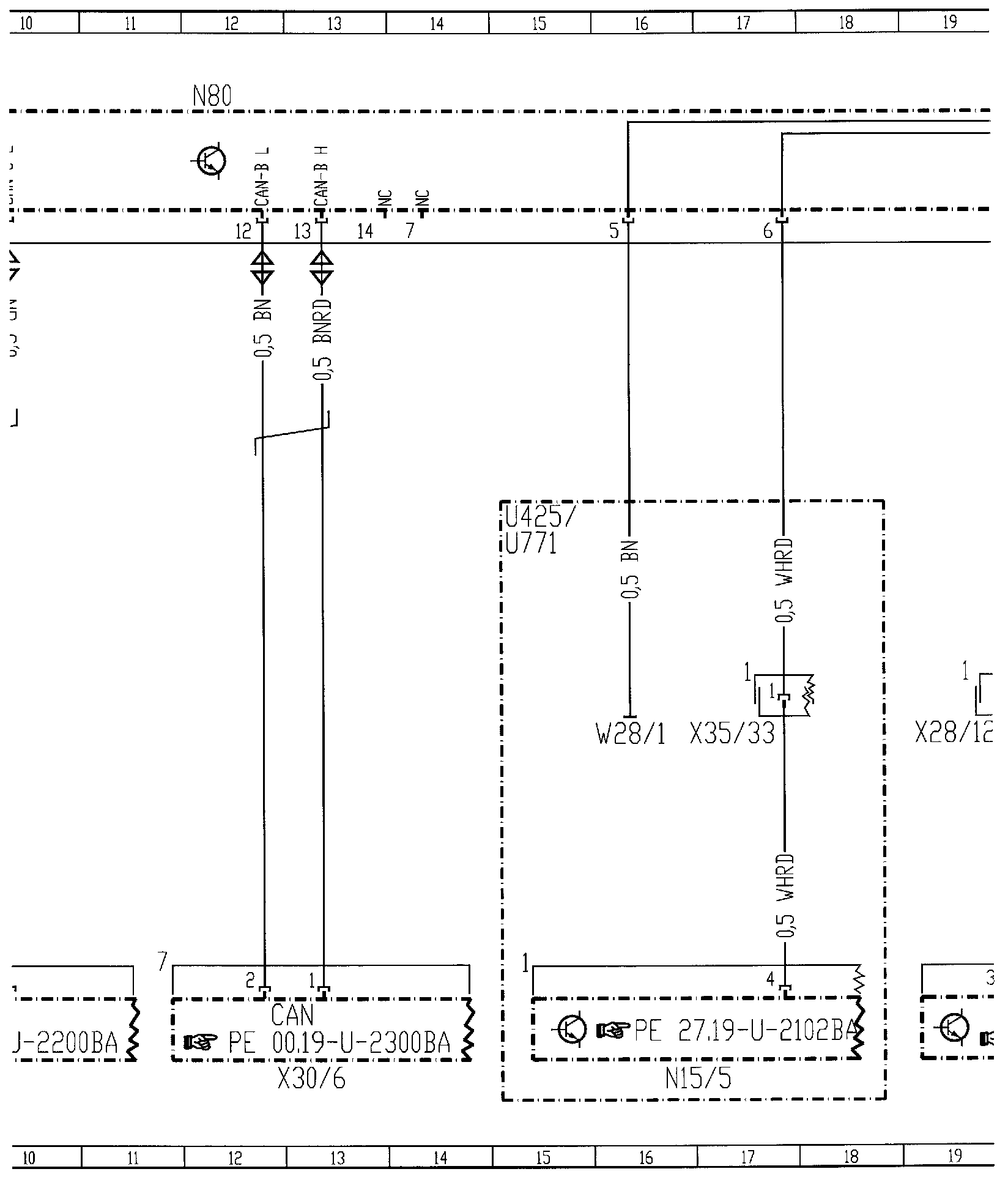

Diagram, Part 4:

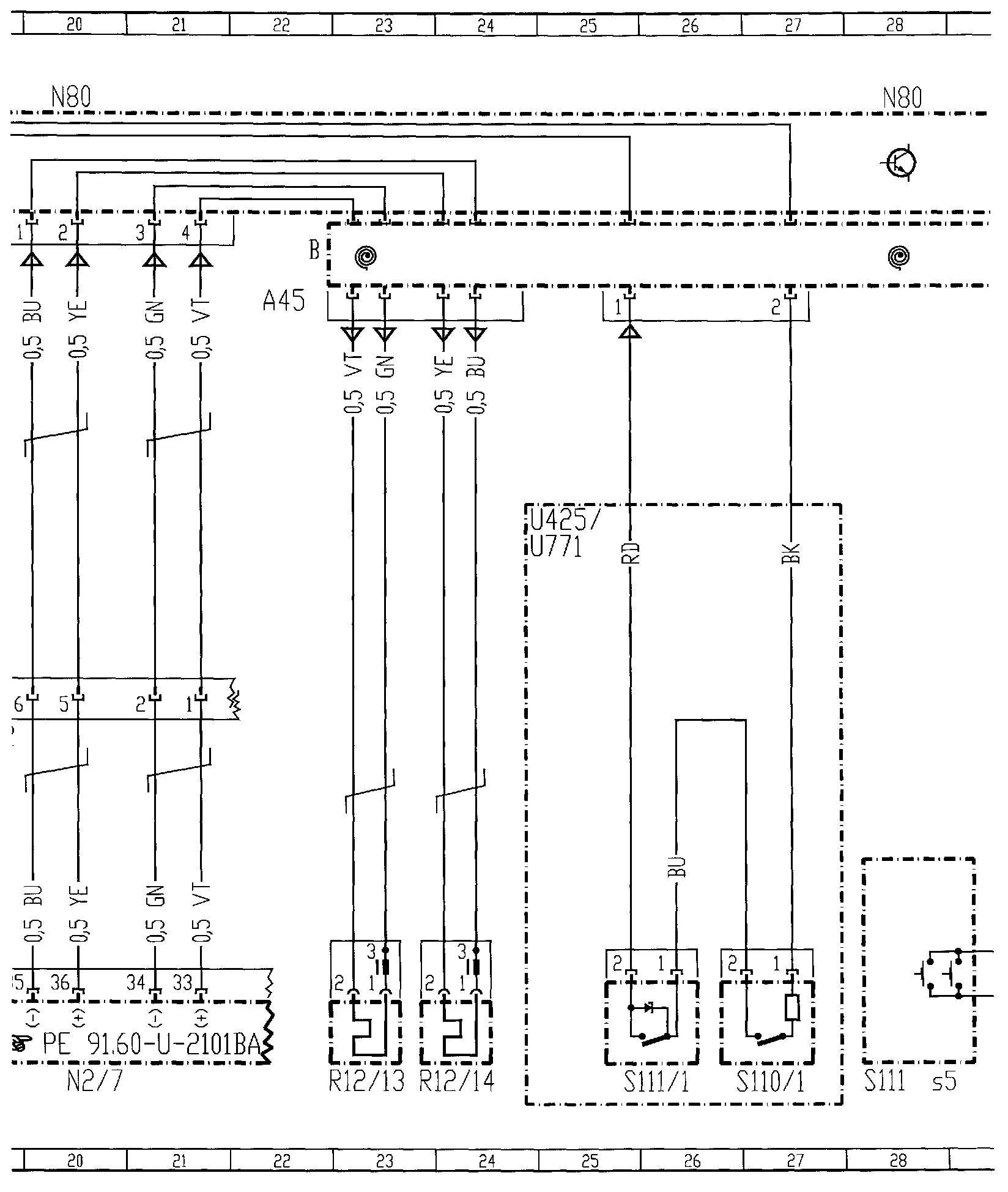

Diagram, Part 5:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
