Home
>>
Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Restraints and Safety Systems
>>
Air Bag Control Module
>>
Service and Repair
Air Bag Control Module: Service and Repair

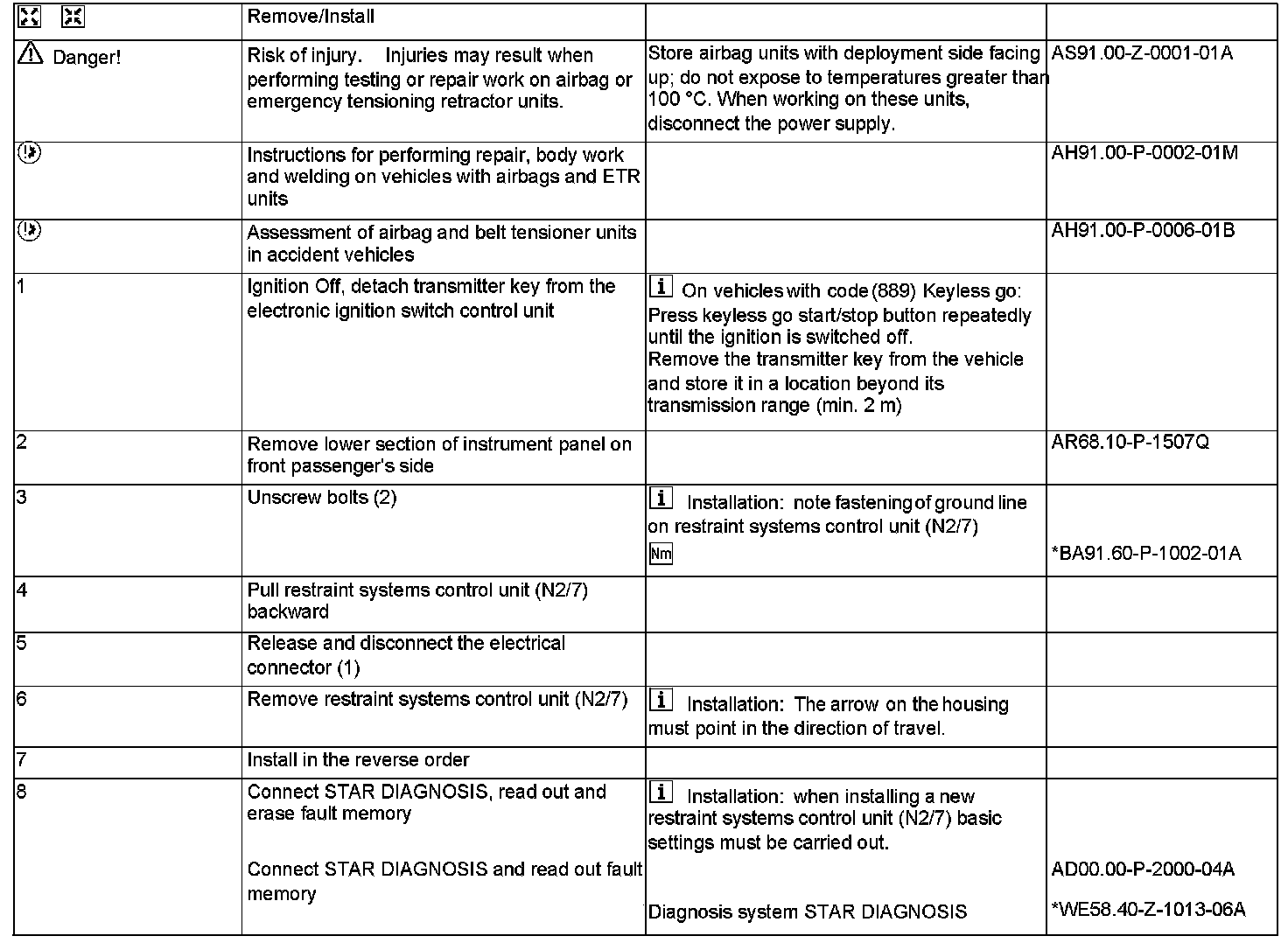

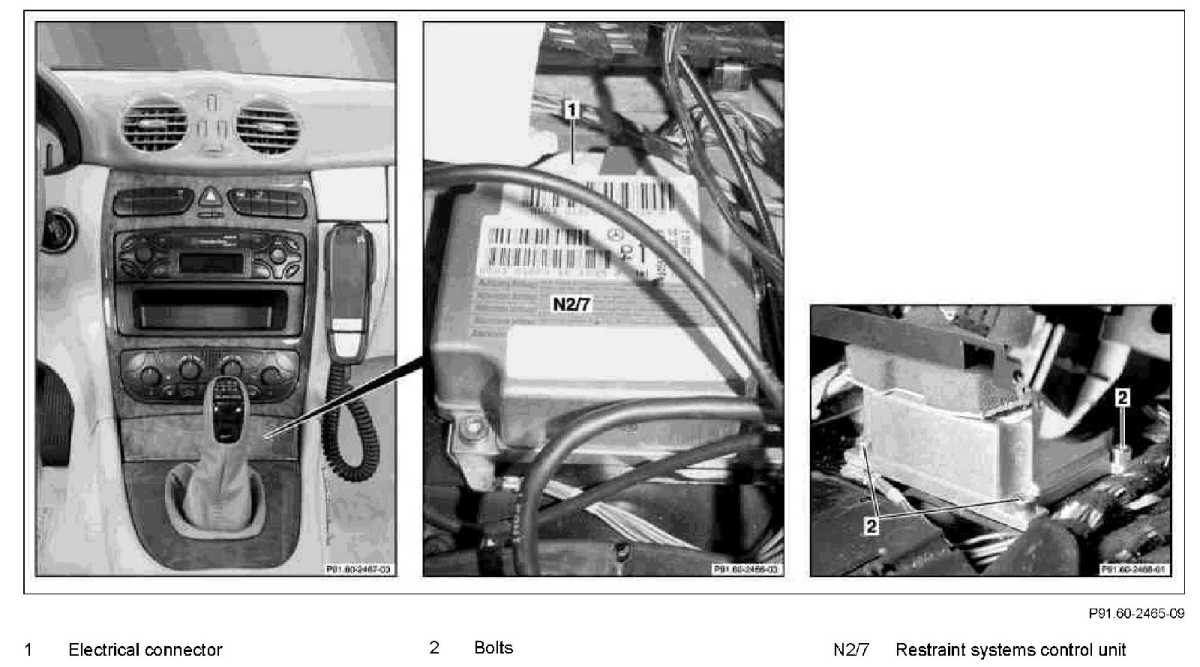

AR91.60-P-0622Q Remove/Install Airbag/Emergency Tensioning Retractor Control Unit

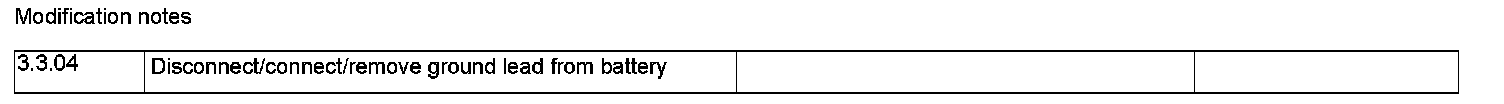

Modification Notes:

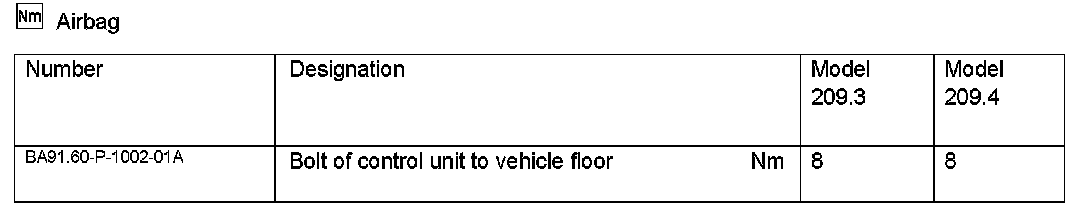

Airbag:
