AR82.10-P-4633P Remove/Install Xenon Lamp Ignition Module



AR82.10-P-4633P Removing And Installing Xenon Lamp Ignition Module
- 203.7## #A, 203.7### #E up to 035817
- with CODE (614) Bi-xenon headlamp unit [model 209]

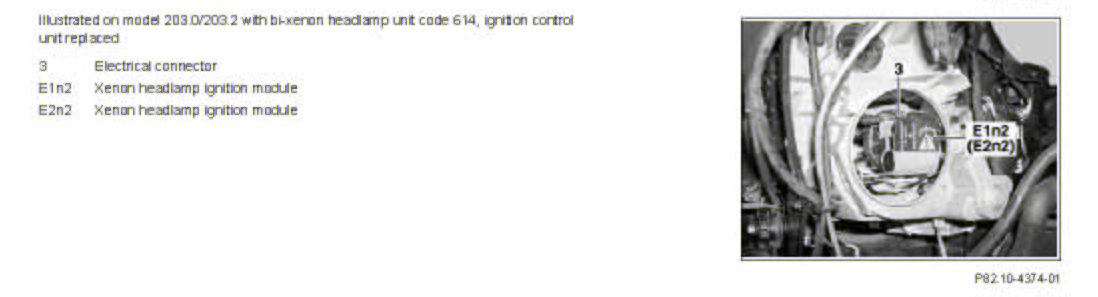

Component Identification:




Component Identification:

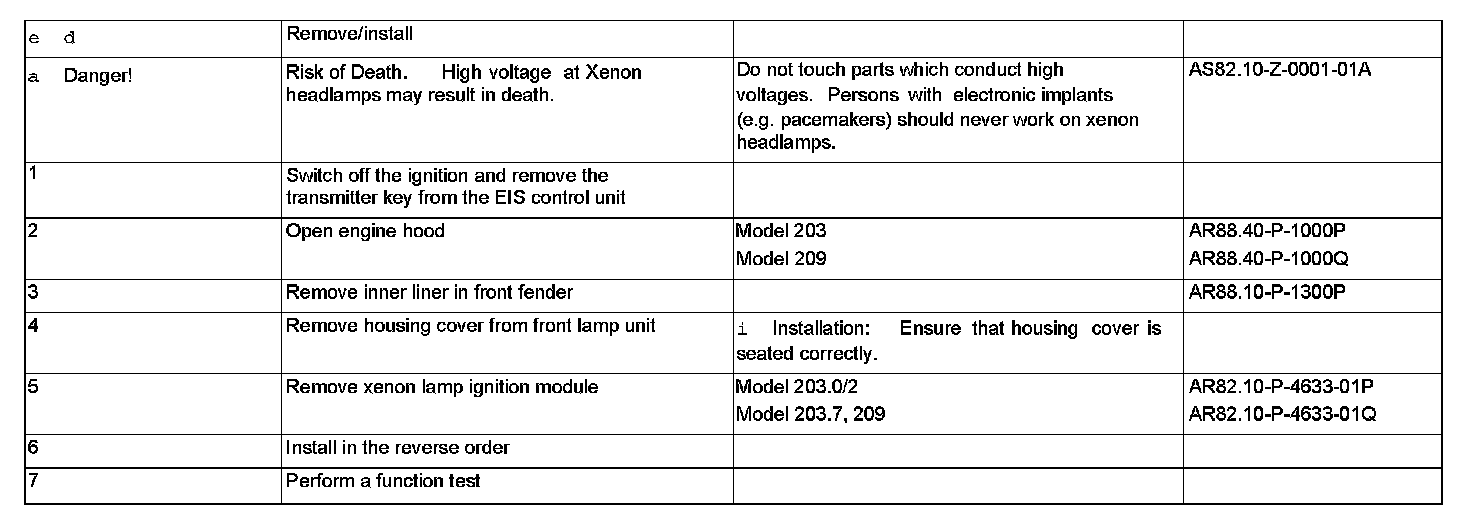

Steps 1 - 7:
