Instruments - Can't Adjust Time On Multifunction Display

Date: July 25, 2007

Order No.: P-B-54.30/183a

Supersedes: P-B-54.30/183 dated February 2, 2007

Group: 54

Revision History

Revision Date purpose

a 7/25/07 STAR Diagnosis Version and Patch No. Updated

- 2/2/07 Initial issue

SUBJECT:
Model 209.356/365/372/375/376/456/465/472/475/476/477
Not Equipped with SA code 530 (COMAND with navigation)

Time Cannot Be Adjusted Via the Multifunction Display

If you receive customer reports in the above model vehicles of the inability to change the time via the multifunction display, this may be due to a software error in the instrument cluster. To resolve, perform the following.

1. Using STAR Diagnosis version 06/07 with patch 760 or later, navigate to the following menu: Control Units -> Information & Communication -> Instrument Cluster -> Troubleshooting by Means of Complaint or Symptom "The time cannot be adjusted via the multifunction steering wheel."

2. Set the following version coding:

Uhrsynchronisation mit HU possible

Menue 14 Umschaltung 12/24 disable

Menue 15 Einstellung Datum enable

Automatic summer/winter time change off

3. Reset the instrument cluster using STAR Diagnosis, navigate to the following menu: Control Units -> Information & Communication -> Instrument Cluster -> Actuation -> Control Module Reset.

Note:

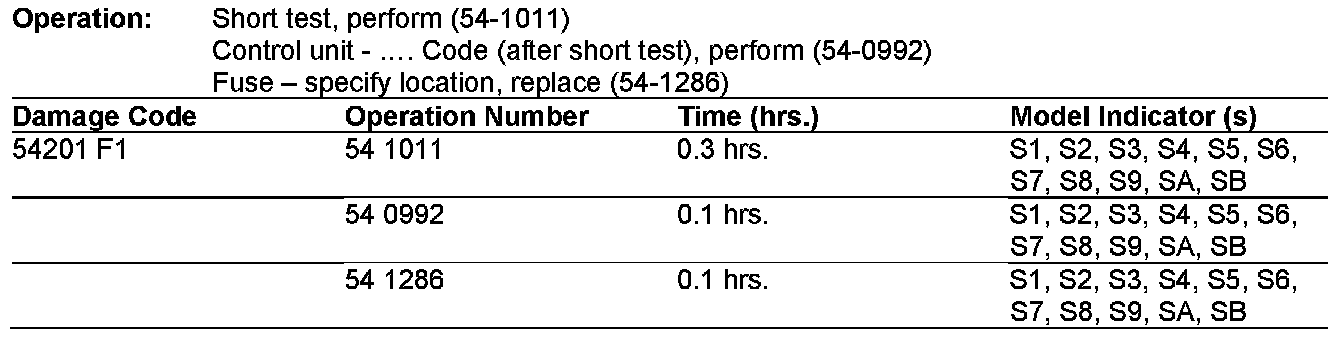

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on July 25, 2007. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
