Radiator Cooling Fan Control Module Relay: Locations



Fan Relay Module

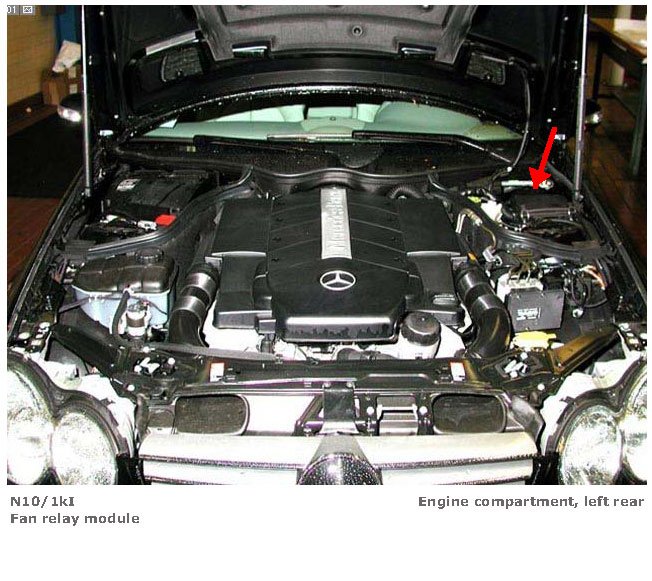

Fan Relay Module (View 1):

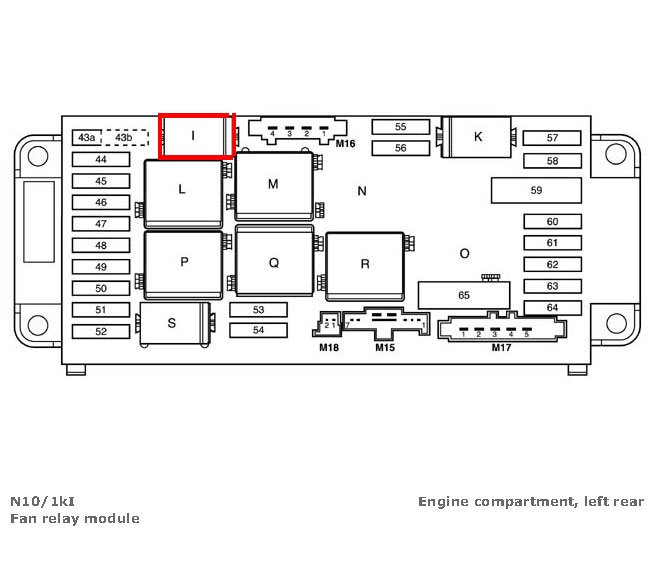

Fan Relay Module (View 2):

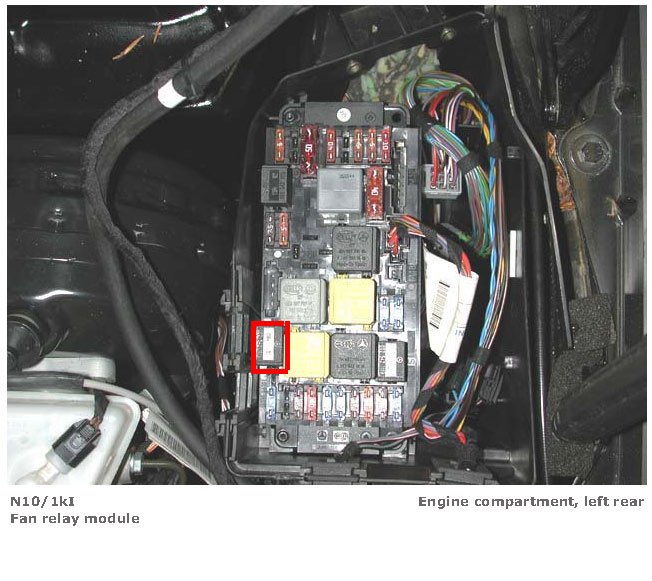

Fan Relay Module (View 3):
