ABS/TCS - ESP Visit Workshop Message/Code C1185
Date: March 11, 2009Order No.: P-B-42.45/98b
Supersedes: P-B-42.45/98a dated March 28, 2008
Group: 42
Revision History
Revision Date Purpose
b 3/11/09 WIS Document Reference Updated
a 3/28/08 Warranty Information Updated
- 3/26/08 Initial issue
SUBJECT:
Model 203, from series production 08/01/2001 to 02/01/2003
Model 209, up to series production 02/01/2003
ESP Visit Workshop with Fault Code C1185
If you receive customer reports in the above models vehicles of the "ESP Visit Workshop" being illuminated in the instrument cluster and fault code C1185 (A7/7b1 BAS diaphragm travel sensor electrical fault) is stored in the Electronic Stability Program (ESP) control module, this may be the result of a layer of oxidation on contact pins 3, 5 and 7 in the connector at the ESP electronic control module. This causes an increased contact resistance resulting in a fault in the membrane travel sensor. Replacing the ESP electronic control module will not result in a long-lasting solution. If the guided tests within STAR Diagnosis do not resolve this issue, perform the repair as outlined in WIS document SM42.45-P-0001B.
Note:

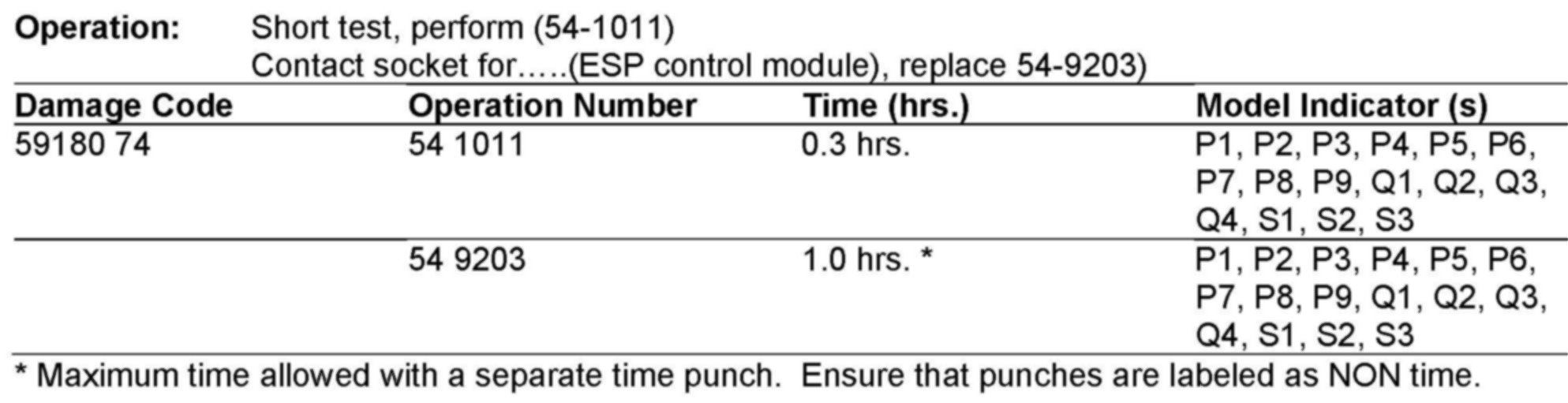

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on March 28, 2008. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.
In Case of Warranty, use the table.
