AZ54.65-P-0001-04Q Installing Control Module

AZ54.65-P-0001-04Q Installing Control Module

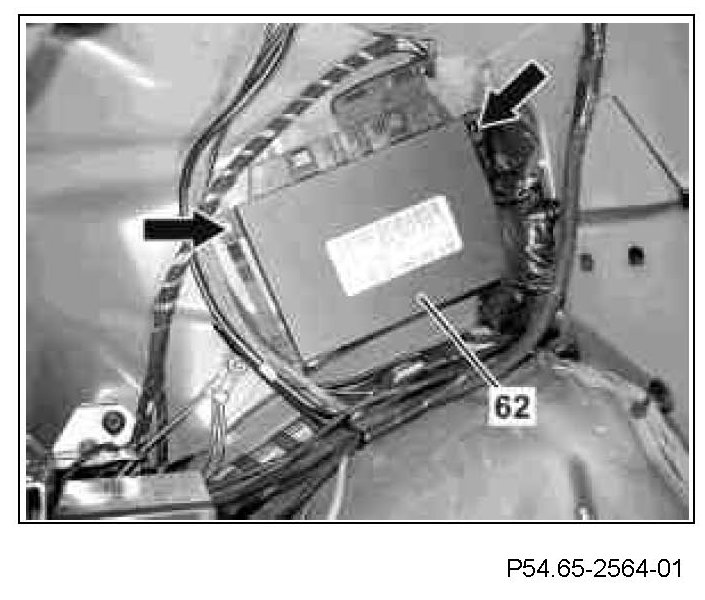

1. Use the EPH ultrasonic control module (62) as a template and transfer the drilled holes (arrow) onto the left trunk side panel.
2. Drill out holes to 3.5 mm dia. and treat with primer.

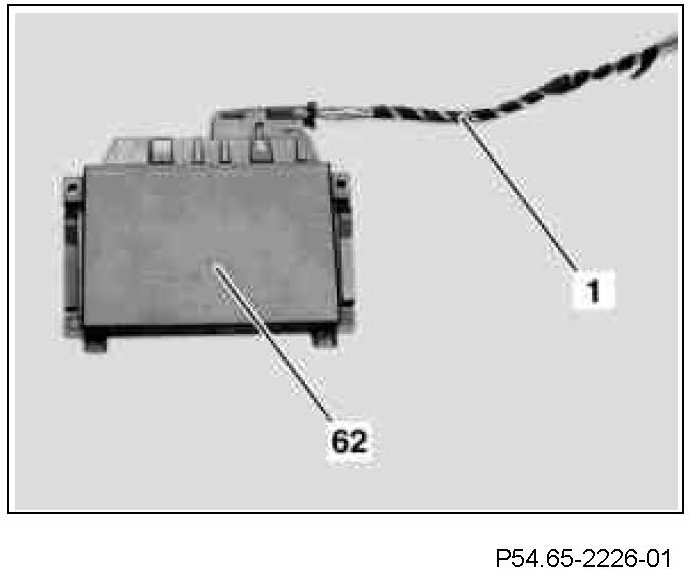

3. Insert connector for ultrasonic back-up assist wiring harness (1) into plug location for ultrasonic PTS control module (62).

Plug locations are coded and cannot be mixed up.

4. Fasten the EPH ultrasonic control module (62) with suitable sheet-metal screws.
