AR54.65-P-0006Q Remove/Install Parktronic System (PTS) Control Module

AR54.65-P-0006Q Remove/Install Parktronic System (PTS) Control Module
- with CODE (220a) Parktronic system (PTS)







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

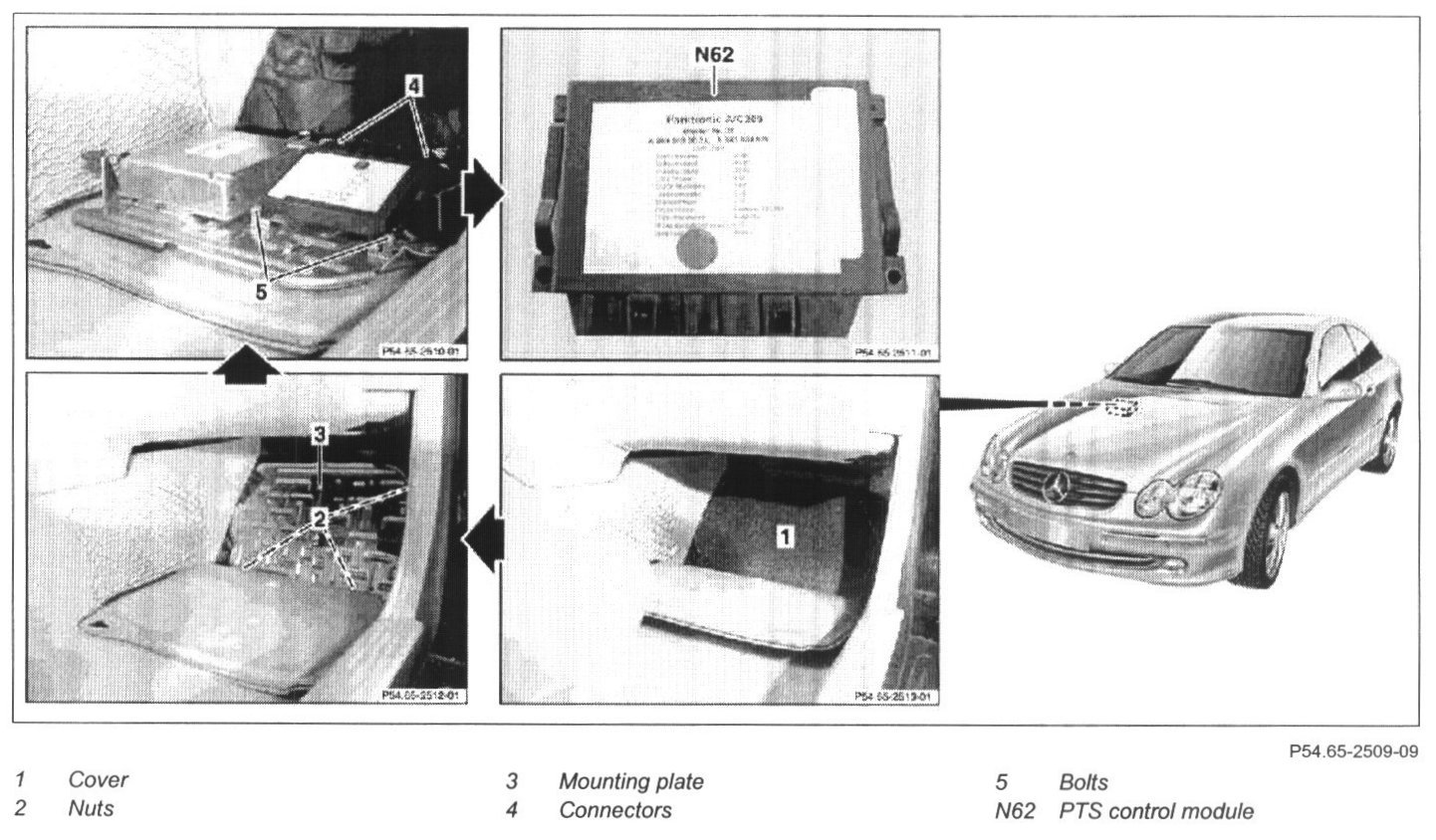

1 Disconnect ground cable of battery
2 Fold back floor covering in passenger footwell
3 Take out cover (1)
4 Unscrew nuts (2).
5 Remove mounting plate (3) from vehicle floor
6 Disconnect connectors (4)
7 Unscrew bolts (5).
8 Remove PTS control module (N62) from guides
9 Install in the reverse order
10 Perform basic programming
11 Read diagnostic trouble code memory and erase
12 Check for proper function
