Digital Tele Aid(R) - Control Module Overview

Date: December 2006
Order No.: S-I-82.95/541
Supersedes:
Group: 82

SUBJECT:
MODEL 129.068/076 from VIN F196862
MODEL YEAR 2001-2002
MODEL 163.154/157/172/174/175
MODEL YEAR 2001-2005
MODEL 170.449/465/466
MODEL YEAR 2001-2004
MODEL 199.376
MODEL YEAR 2005-2006
MODEL 203.040/061/064/065/081/084 [with SA CODE (349)]
MODEL YEAR 2001-2004
MODEL 203.261/264/281/284 [with SA CODE (349)]
MODEL YEAR 2002-2004
MODEL 203.740/747/764 [with SA CODE (349)]
MODEL YEAR 2002-2004
MODEL 208.365/370/374 [with SA CODE (801)]
MODEL YEAR 2001-2002
MODEL 208.465/470/474 [with SA CODE (801)]
MODEL YEAR 2001-2003
MODEL 209.365/375/376 [with SA CODE (349)]
MODEL YEAR 2003-2004
MODEL 209.465/475/476 [with SA CODE (349)]
MODEL YEAR 2004
MODEL 210.065/070/074/082/083 [with SA CODE (349)]
MODEL YEAR 2001-2002
MODEL 210.265/282 [with SA CODE (349)]
MODEL YEAR 2002-2003
MODEL 211.026/065/070/076/082/083 [with SA CODE (384)]
MODEL YEAR 2003-2005 (MY05 only 211.026)
MODEL 211.265/282/283 [with SA CODE (384)]
MODEL YEAR 2003-2004
MODEL 215.373/374/375/376/378 [with SA CODE (349)]
MODEL YEAR 2001-2003
MODEL 215.374/375/376 [with SA CODE (384)]
MODEL YEAR 2004
MODEL 220.170/173/174/175/176/178/183/184 [with SA CODE (349)]
MODEL YEAR 2001-2003
MODEL 220.170/174/175/176/183/184 [with SA CODE (384)]
MODEL YEAR 2004
MODEL 230.474/475/476 [with SA CODE (349)]
MODEL YEAR 2003-2004
MODEL 463.246/249/271
MODEL YEAR 2002-2006

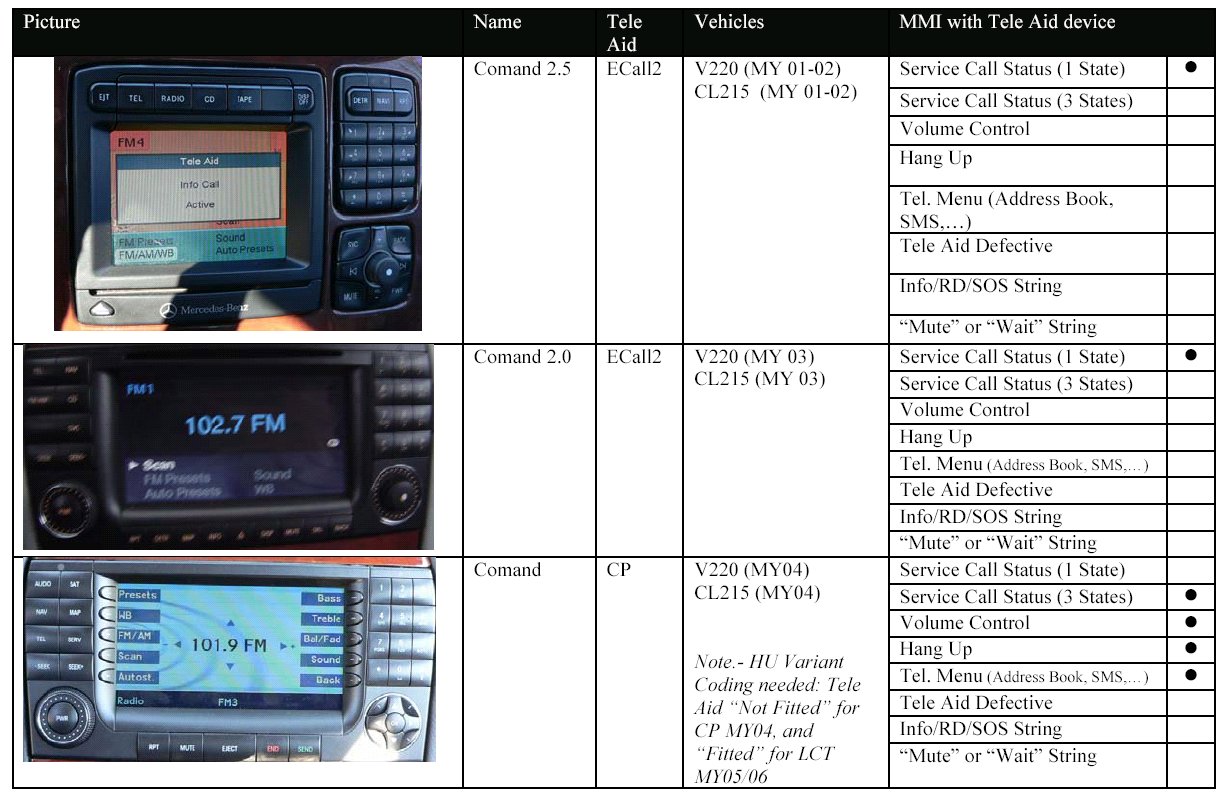

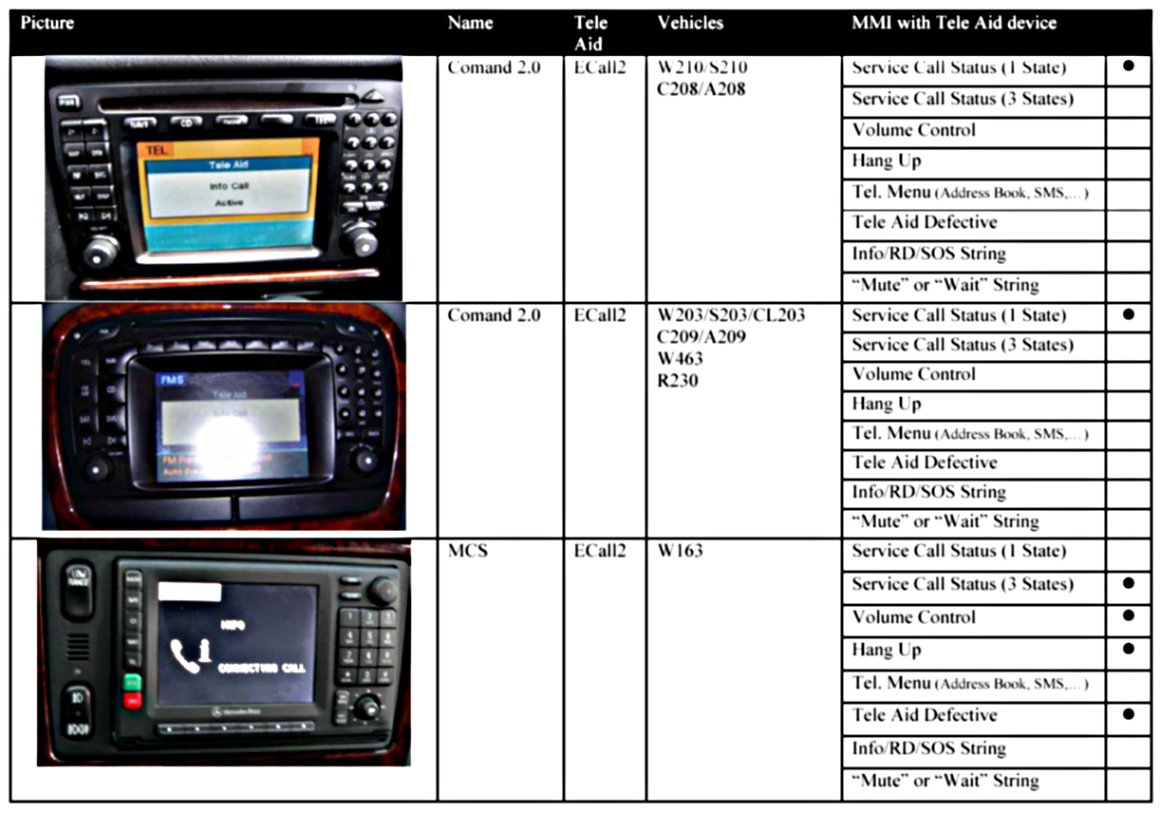

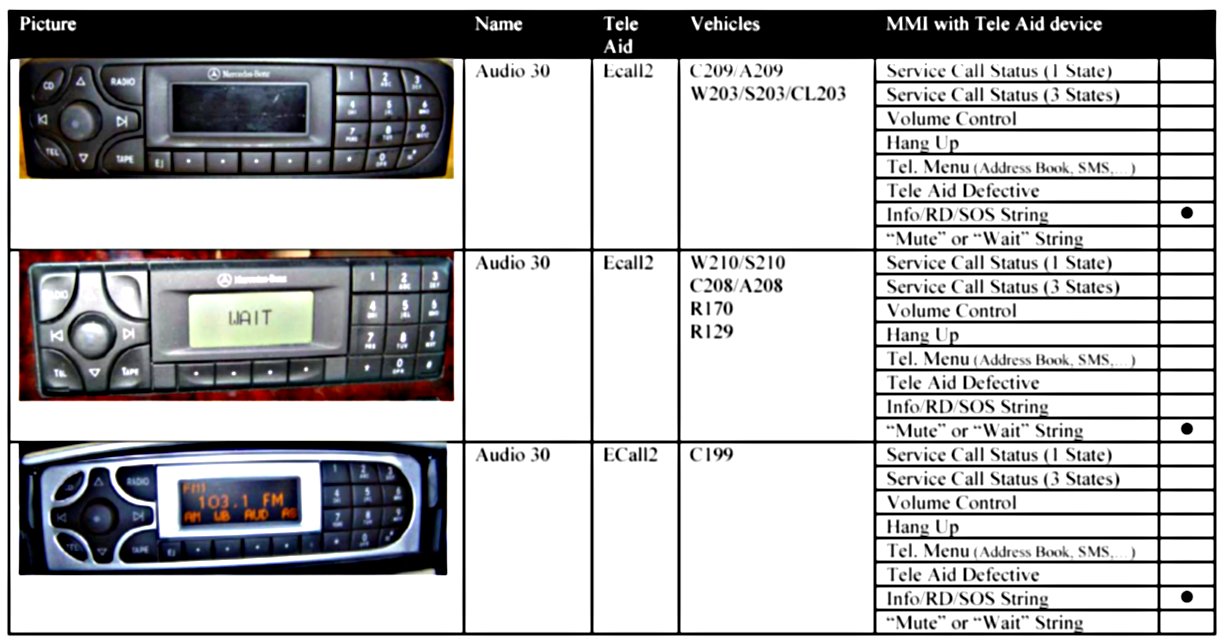

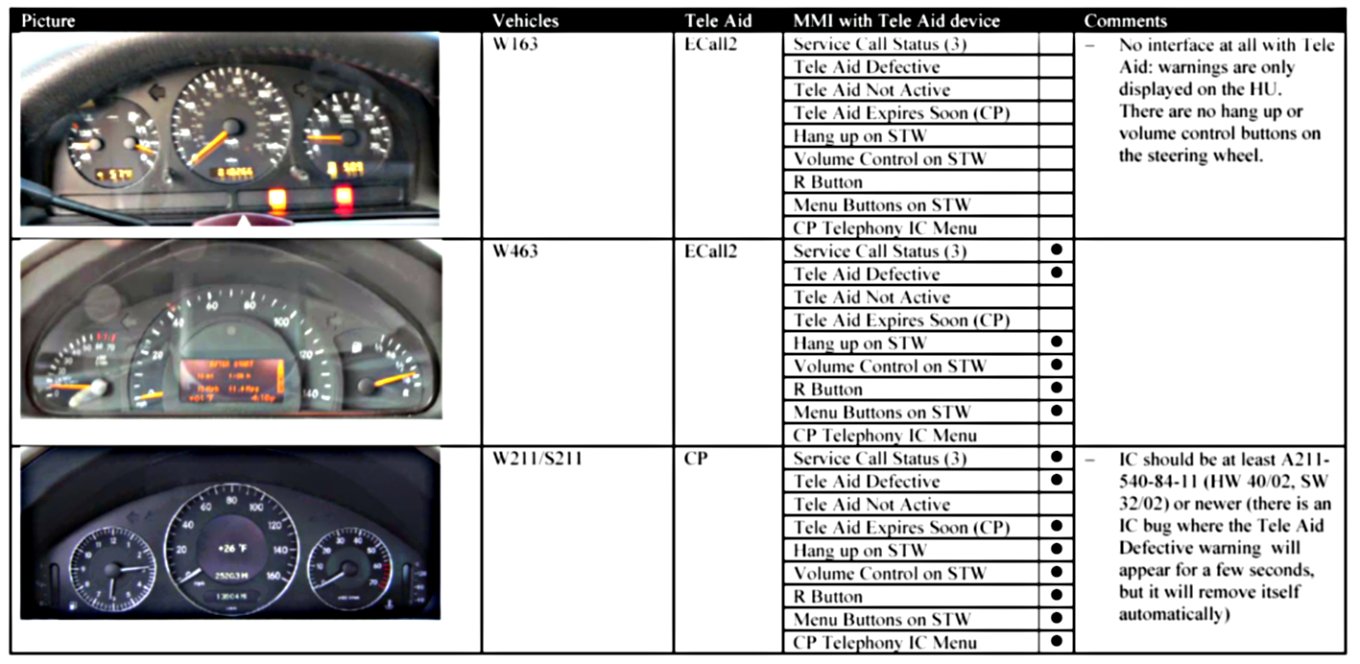

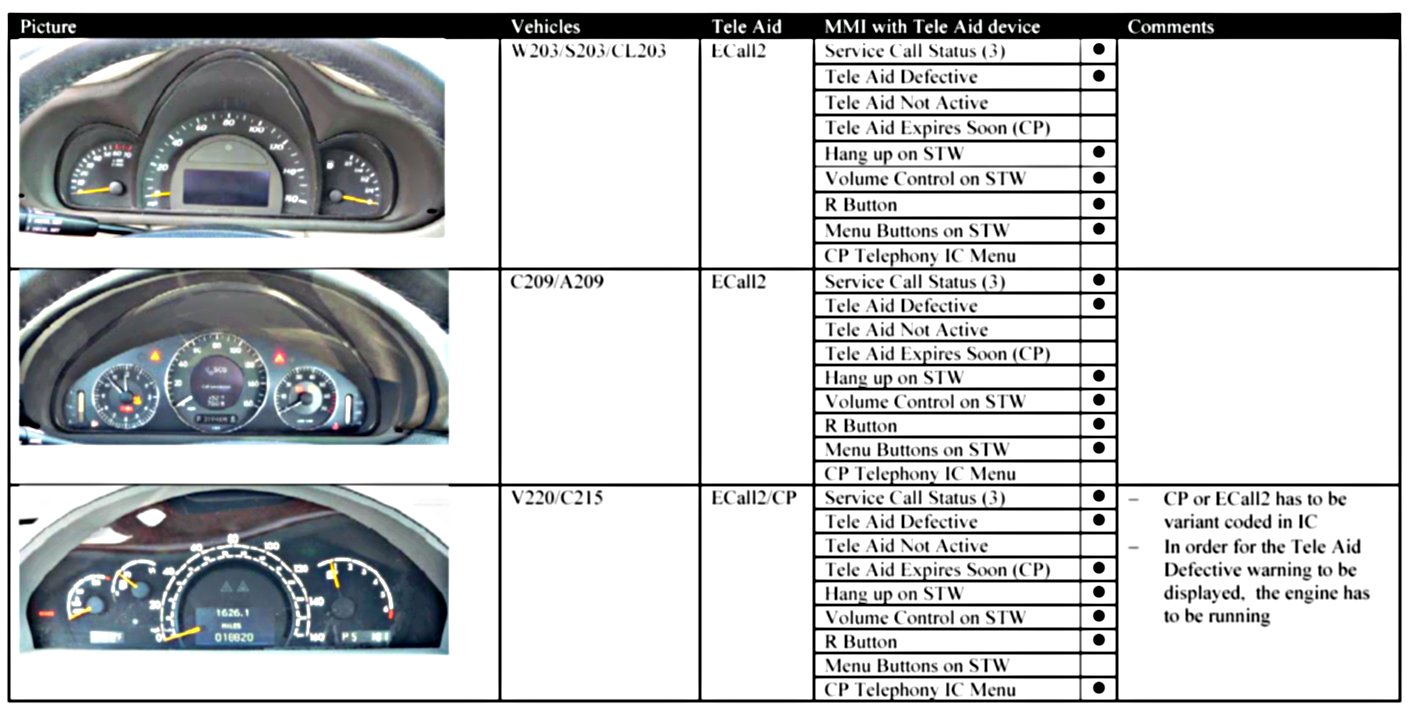

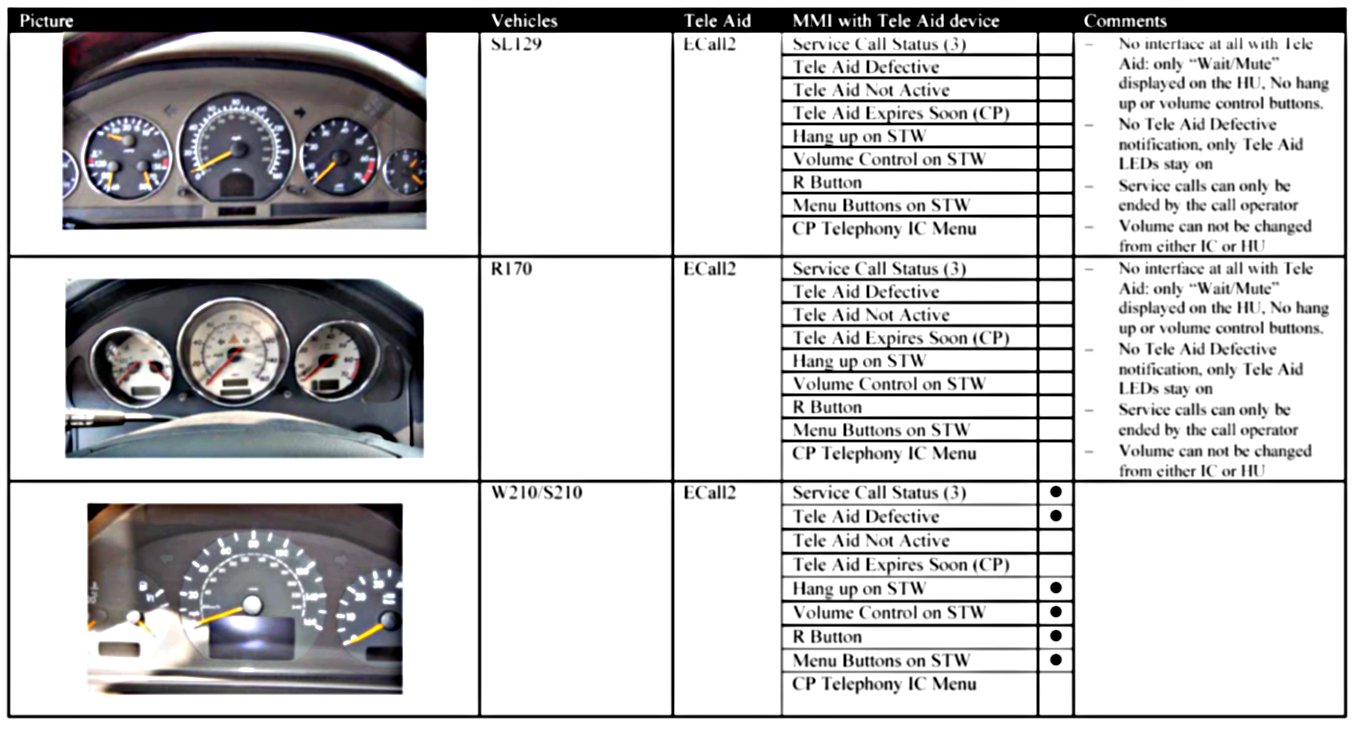

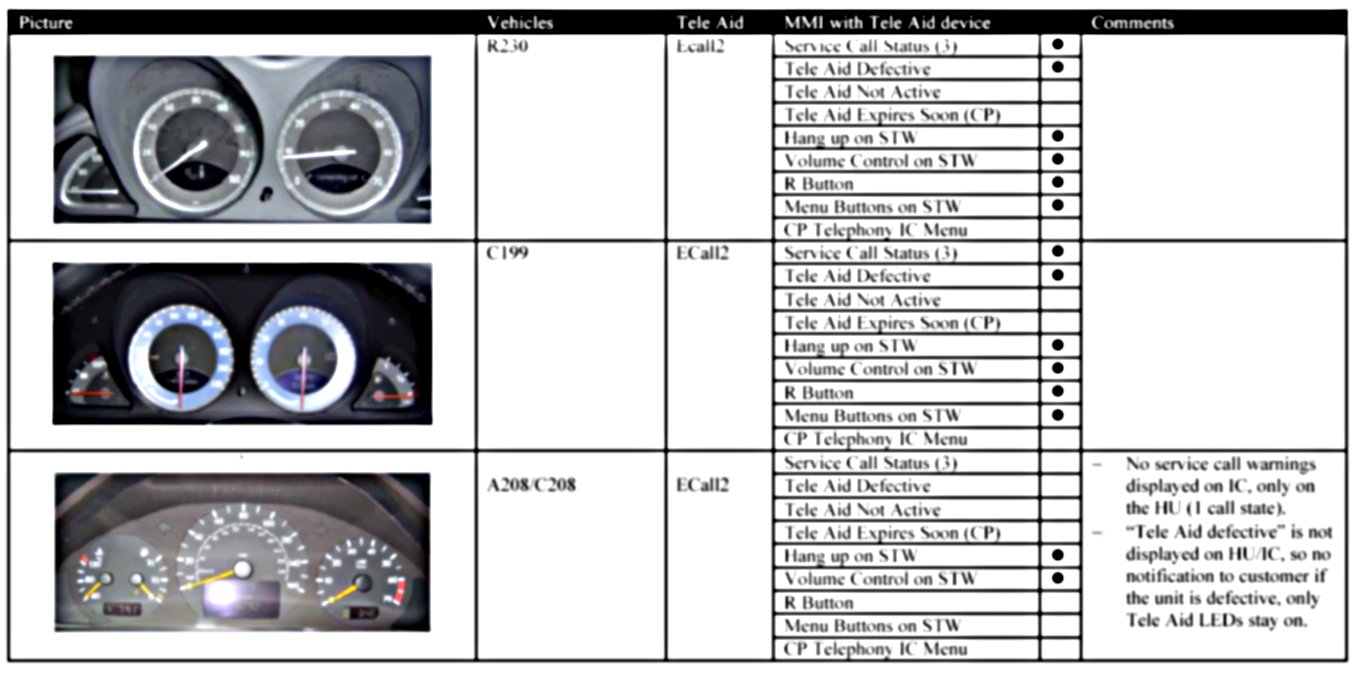

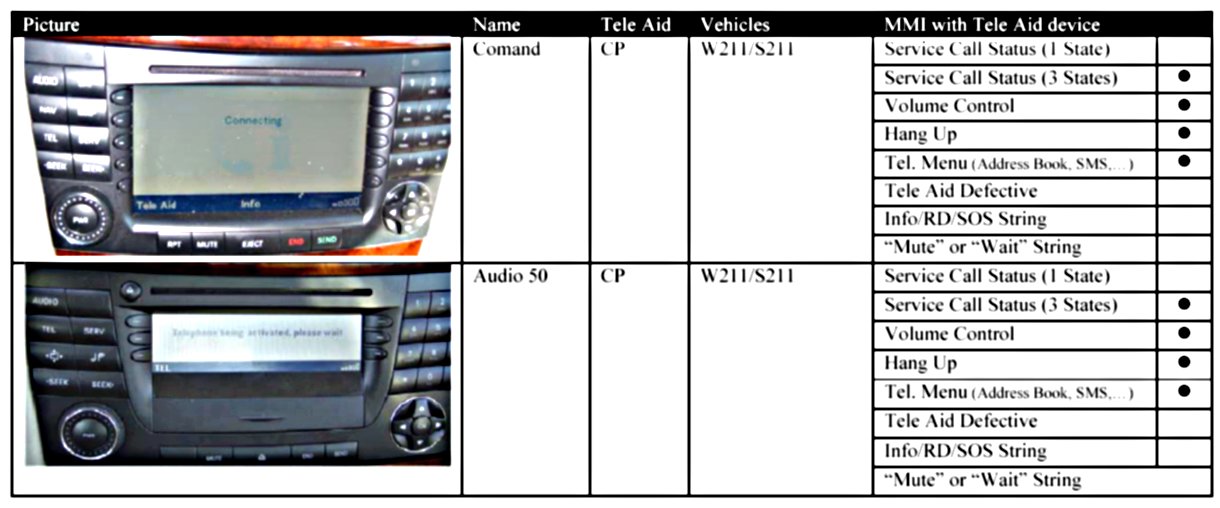

MMI OVERVIEW - DIGITAL TELE AID CONTROL MODULE


























Nomenclature:
MMI Man Machine Interface
HU Head Unit
IC Instrument Cluster
ECall2 Emergency-Call-2 Tele Aid
CP Communication Platform Tele Aid
Service Call Status (1 State) The display shows only that a Tele Aid service call is active but not the individual stages of the service call
Service Call Status (3 States) The display shows the individual stages of the service call such as "Call Connecting", "Call Connected" and "Call Failed"
Volume Control Whether the volume control dial on the MMI Component has control over the volume of the Tele Aid service call; The default Tele Aid volume settings can additionally be set/modified through the DAS tool.
Hang Up Whether the customer can terminate a Tele Aid Info/Road Side Call (Ignition has to be ON). SOS can only be terminated by the operator.
Tel. Menu (Address Book, SMS..) Whether the MMI Component has any access to the Telephone Address Book, SMS. When using Bluetooth Mobile Adaptor only restricted features available in the MMI component. Please refer to the corresponding Bluetooth Adaptor User Guide
Tele Aid Defective Whether the "TELE AID DEFECTIVE VISIT WORKSHOP" is displayed on the MMI component when the Tele Aid becomes defective.
Info/RD/SOS String There is only a string like "Info/RD/SOS" displayed on the MMI component during the Tele Aid service calls.
"Mute" or "Wait" String There is only a "Mute" or "Wait" string displayed on the MMI component during the Tele Aid service calls.
MY Model Year
Menu Buttons on STW Whether customer can select different IC menus (Radio, Tel, etc.) through the steering wheel buttons during a service call. Ignition has to be ON.
R Button Button on the instrument cluster (IC) to remove warnings from the display.
Tele Aid Not Active/ Expires Soon Display message on the MMI component indicating that the Tele Aid service is not active or it is going to expire soon.
CP Telephony IC Menu Menu on the instrument cluster to display the hands free telephone operations of the communication platform.
