Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Emergency Contact Module >> Description and Operation >> GF82.95-P-4200QU E-Call Control Module, Location/Task/Design

GF82.95-P-4200QU E-Call Control Module, Location/Task/Design



GF82.95-P-4200QU E-CALL Control Module, Location/task/design
- with CODE (349) E Call emergency call system

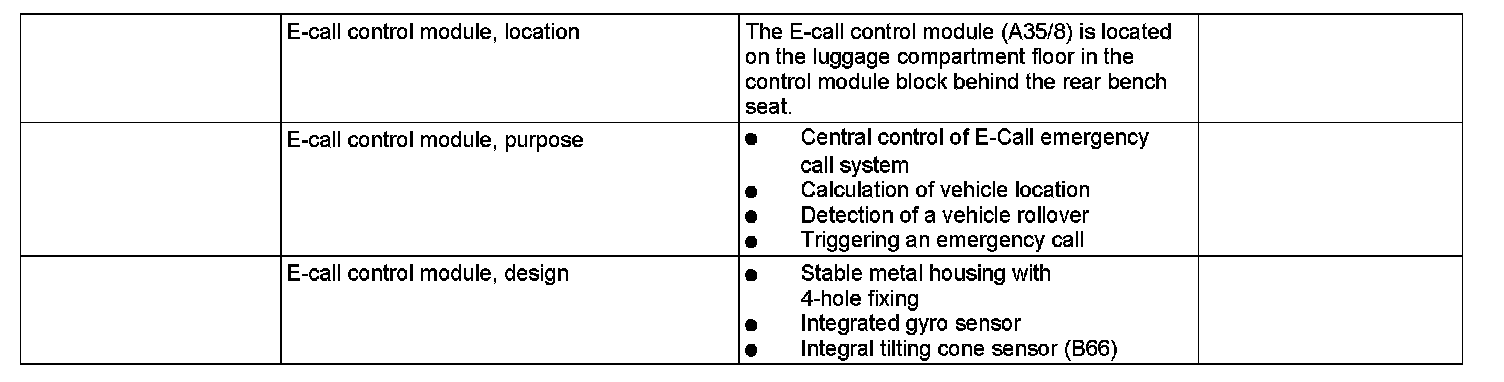

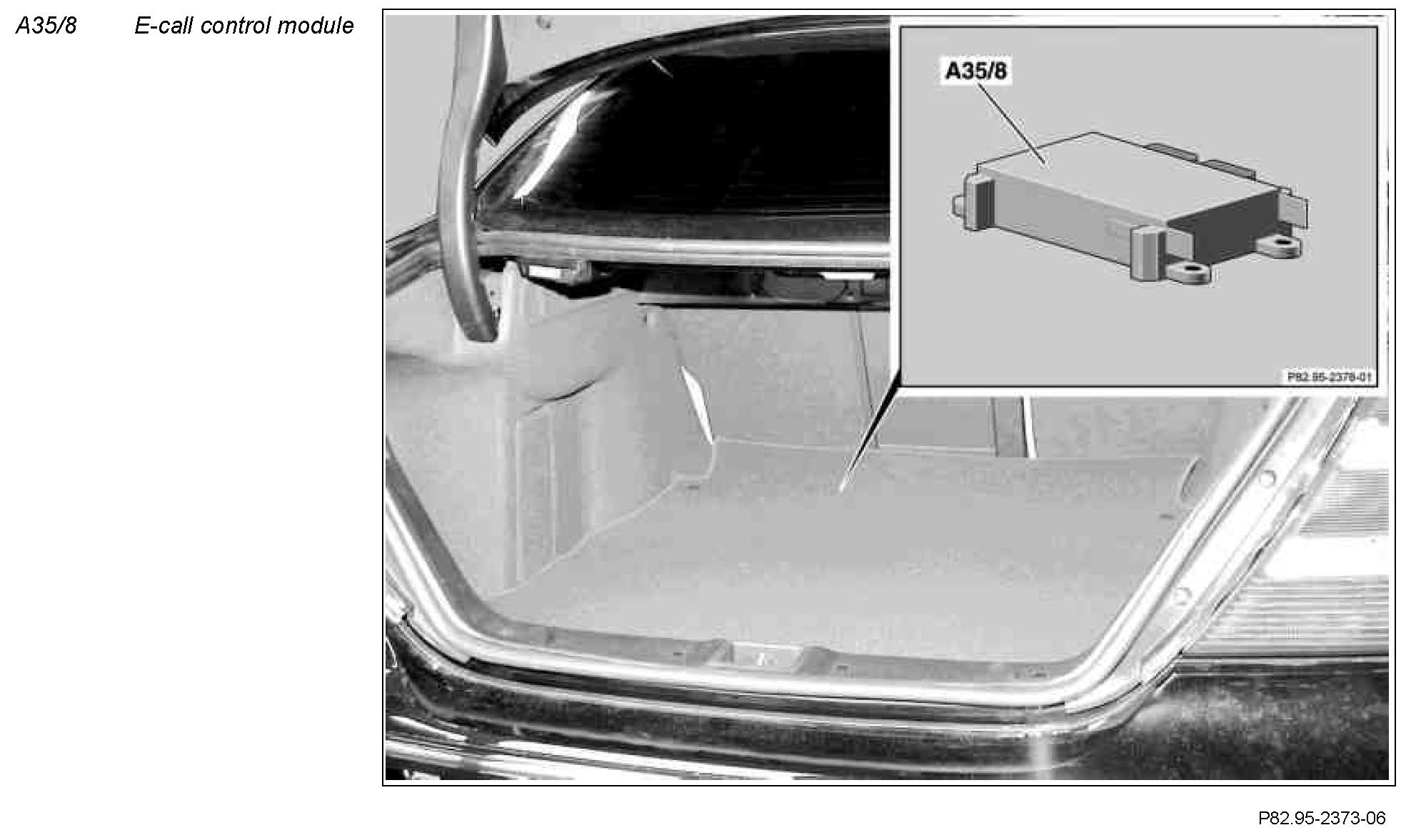

Component Identification:
