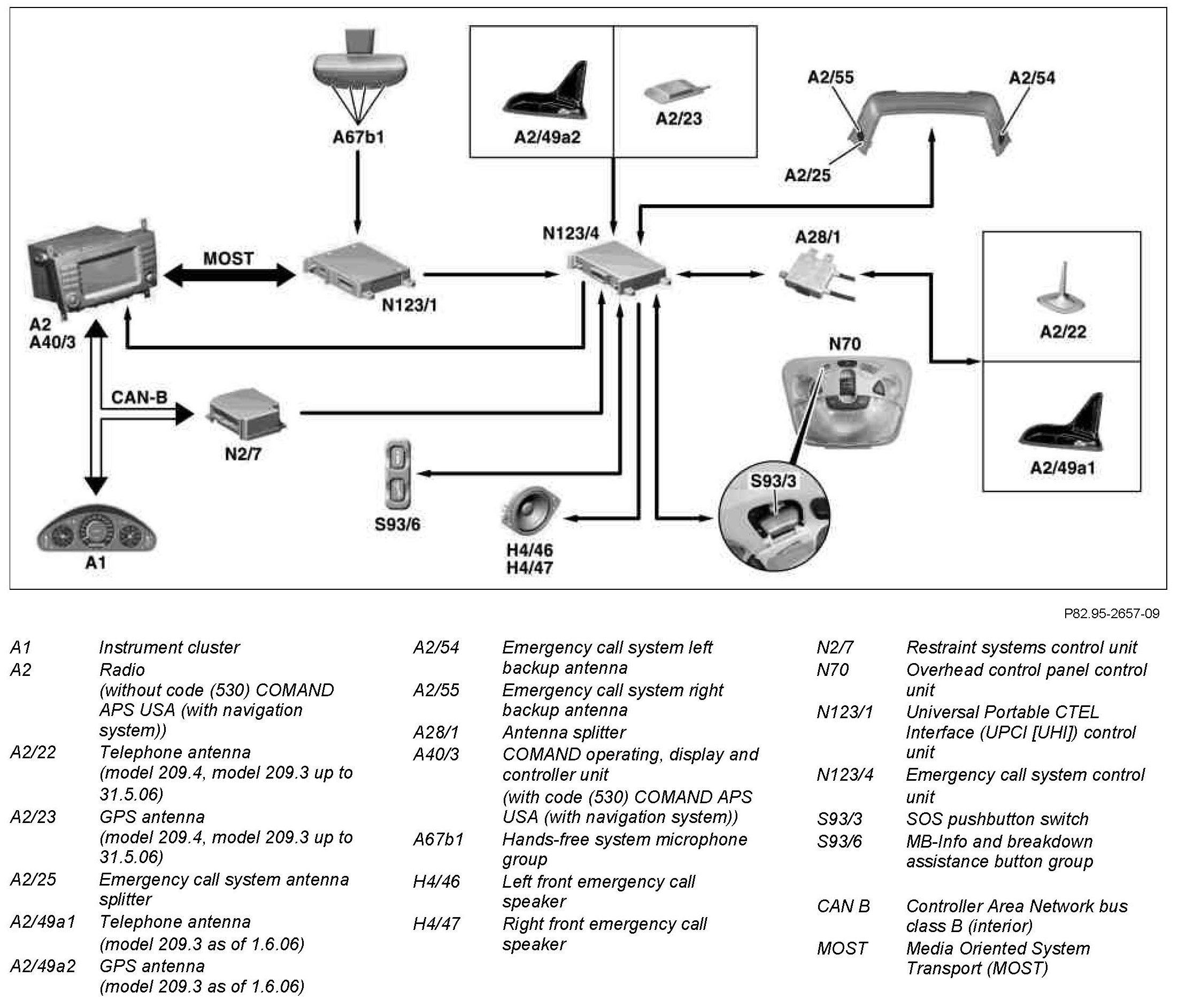

GF82.95-P-0001-02QM TELE AID Block Diagram



GF82.95-P-0001-02QM TELE AID Block Diagram
- with CODE (359) TELE AID emergency call system


Component Identification:
