GF27.19-P-5129-03Q Position Display, Function

GF27.19-P-5129-03Q Position display, function
- TRANSMISSION 722.6
- 209.3 (except 209.376) up to 31.5.03
- 211 (except 211.076) up to 31.8.03
- 230 (except 230.474) up to 31.8.03

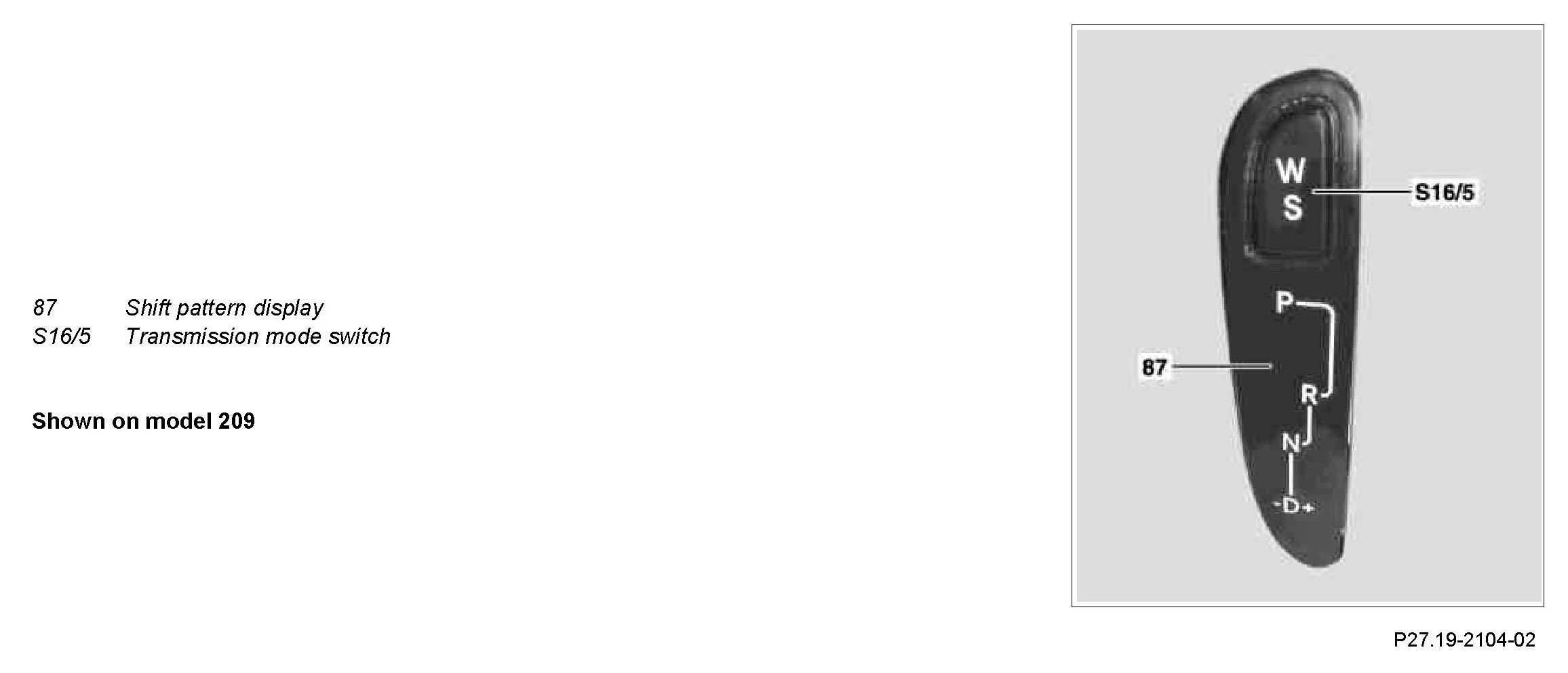

Component Identification:

The position display in the instrument cluster (A1) is actuated by the ETC [ETC] control unit (N15/3) via the engine compartment CAN.

The program selection display in the instrument cluster (A1) is actuated by the electronic selector lever module control unit (N15/5) likewise via the engine compartment CAN.

The program selection performed at the transmission mode switch (S16/5) remains stored only after driving for approx. 1 minute and is then displayed again after the engine is started again.

The driving time required of approx. 1 minute is due to the system.

The shift pattern display (87) is illuminated when the driving lights are switched on.
