Function Diagram of Electrical System For Electronic Transmission Control (ETC) PE27.19-U-2050BA



Function Diagram Of Electrical System For Electronic Transmission Control (ETC) PE27.19-U-2050BA
- TRANSMISSION 722.6
- with CODE (423) Automatic five-speed transmission (NAG)

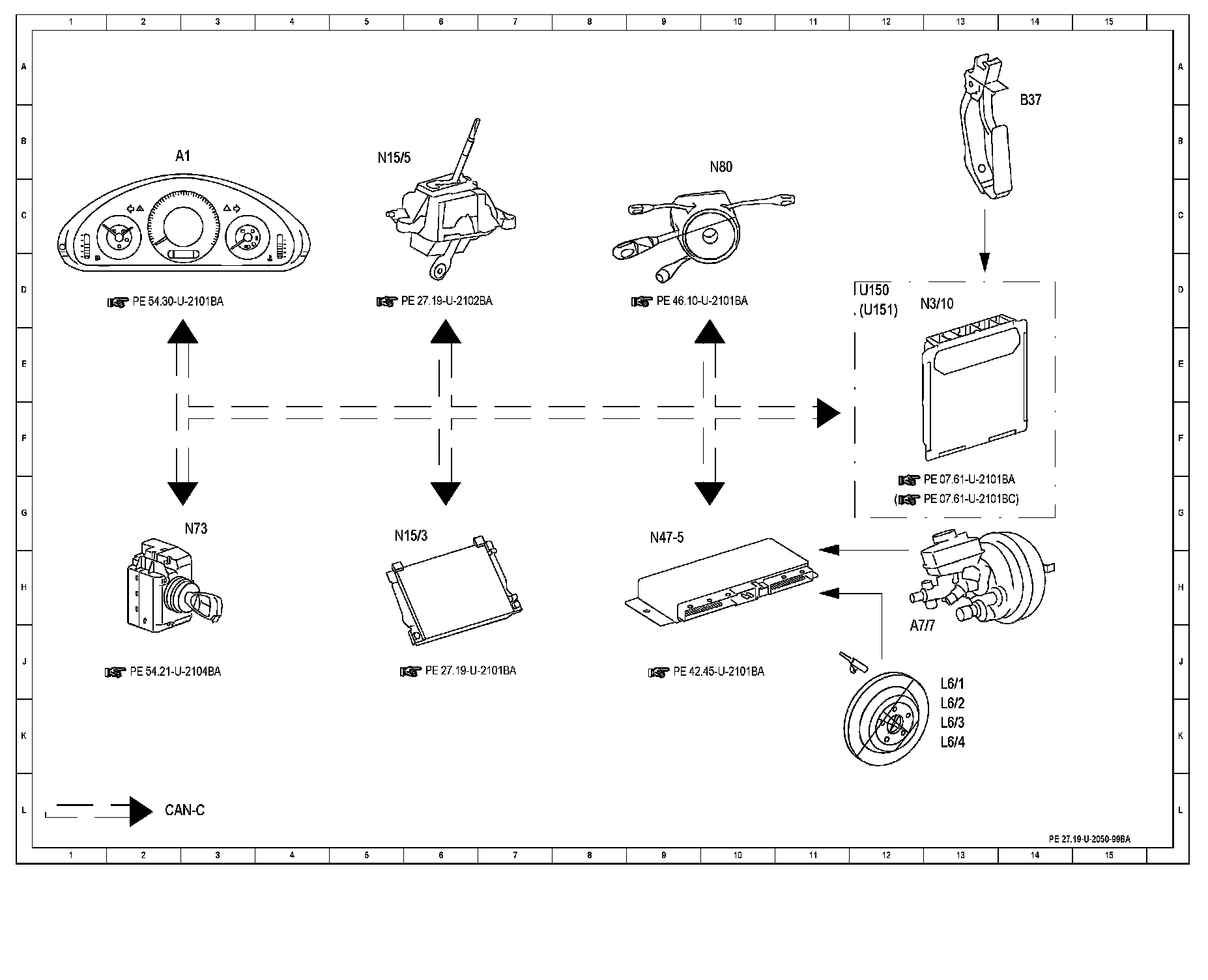

Wiring Diagram:

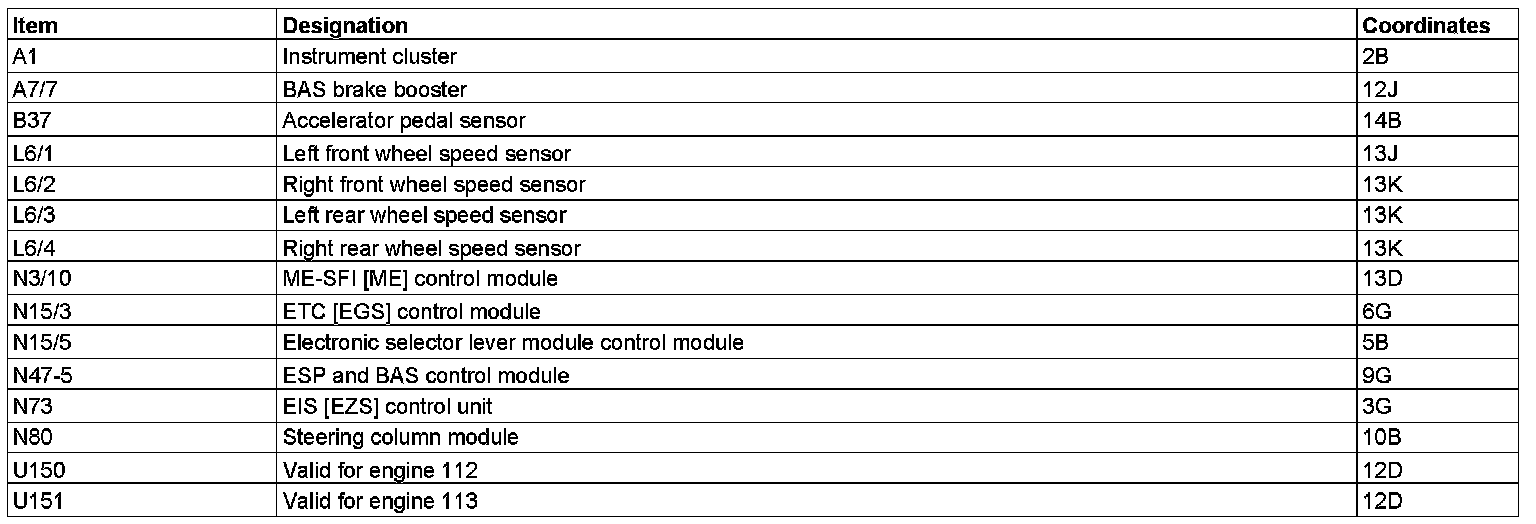

Component Description/Coordinates, A1 To U151:
