Function Diagram For Electronic Transmission Control (ETC) PE27.19-U-2050BA

PE27.19-U-2050BA Function Diagram Of Electrical System For Electronic Transmission Control (ETC)
- with CODE (423) Automatic 5-speed transmission (NAG)

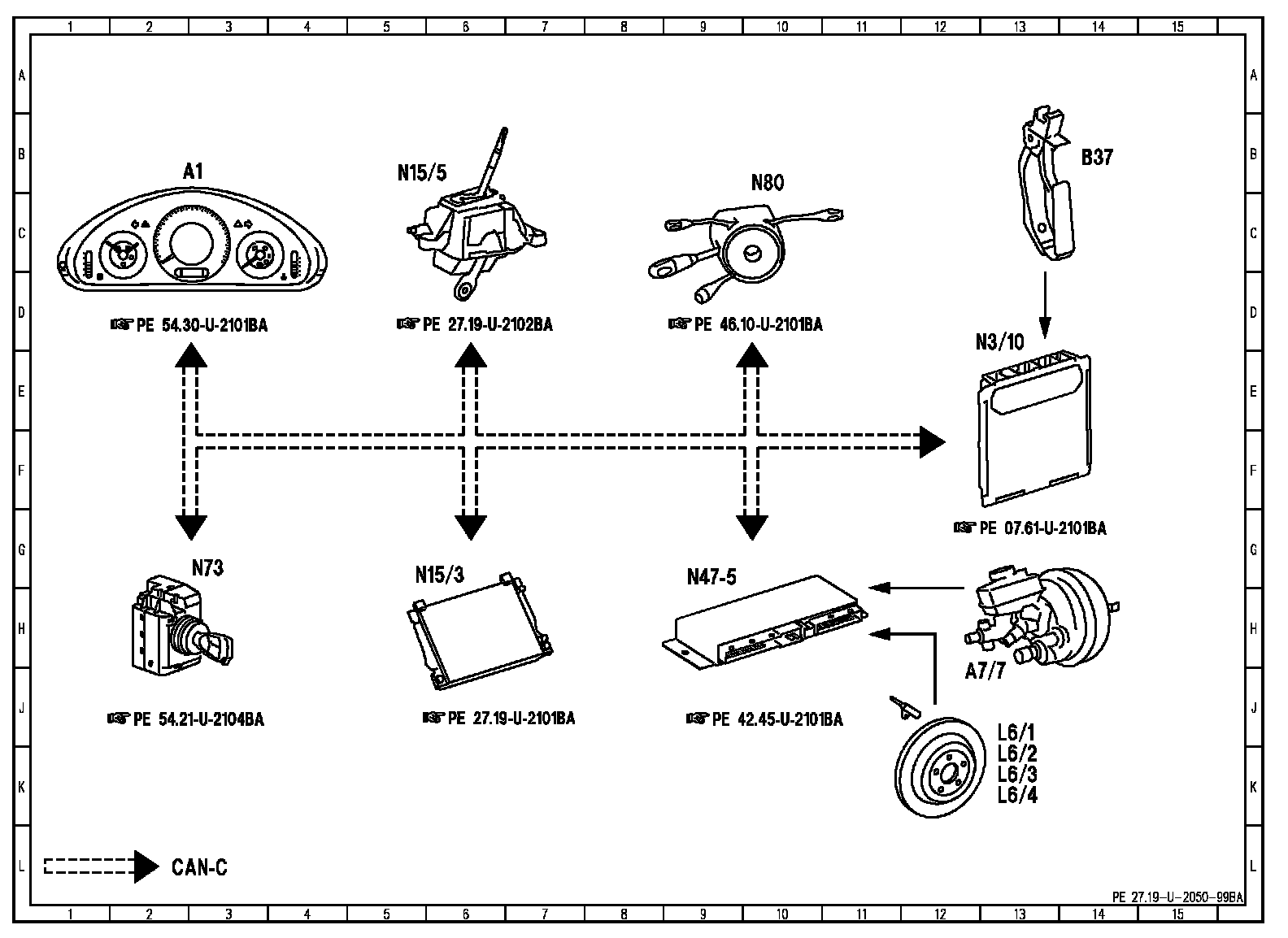

Wiring Diagram:

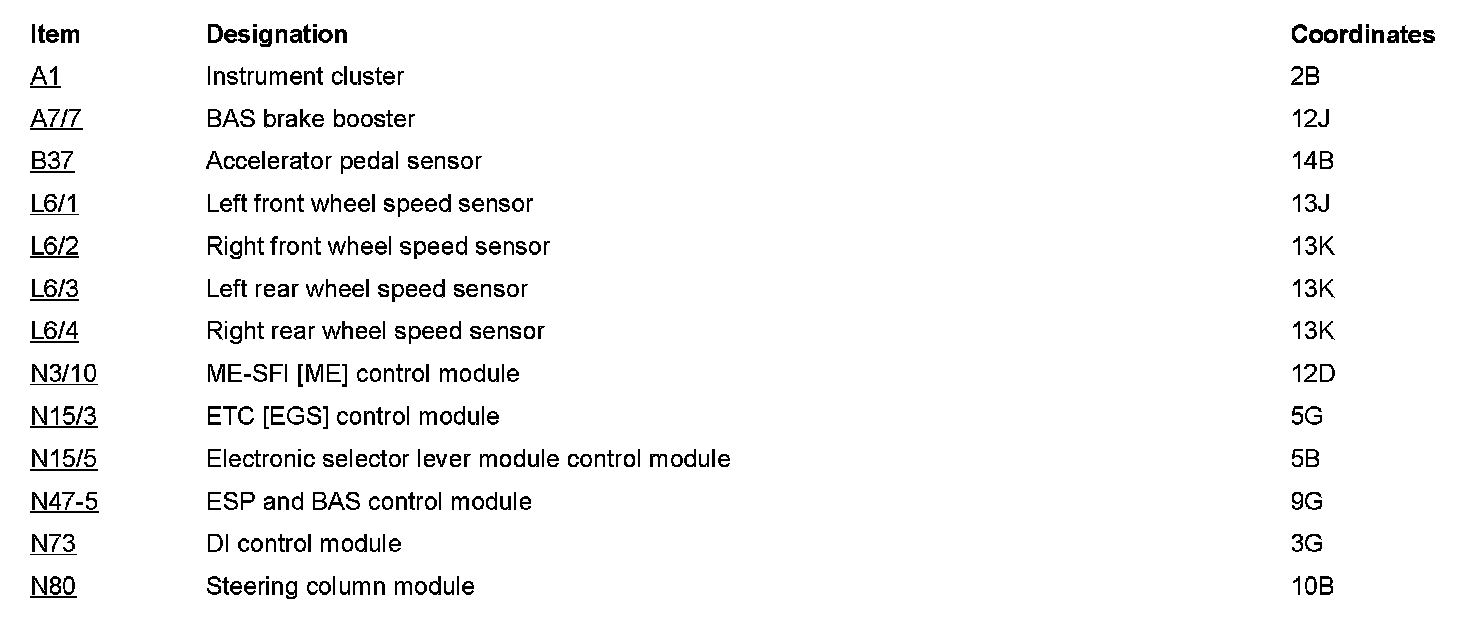

Component Description/Coordinates, A1 To N80:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
