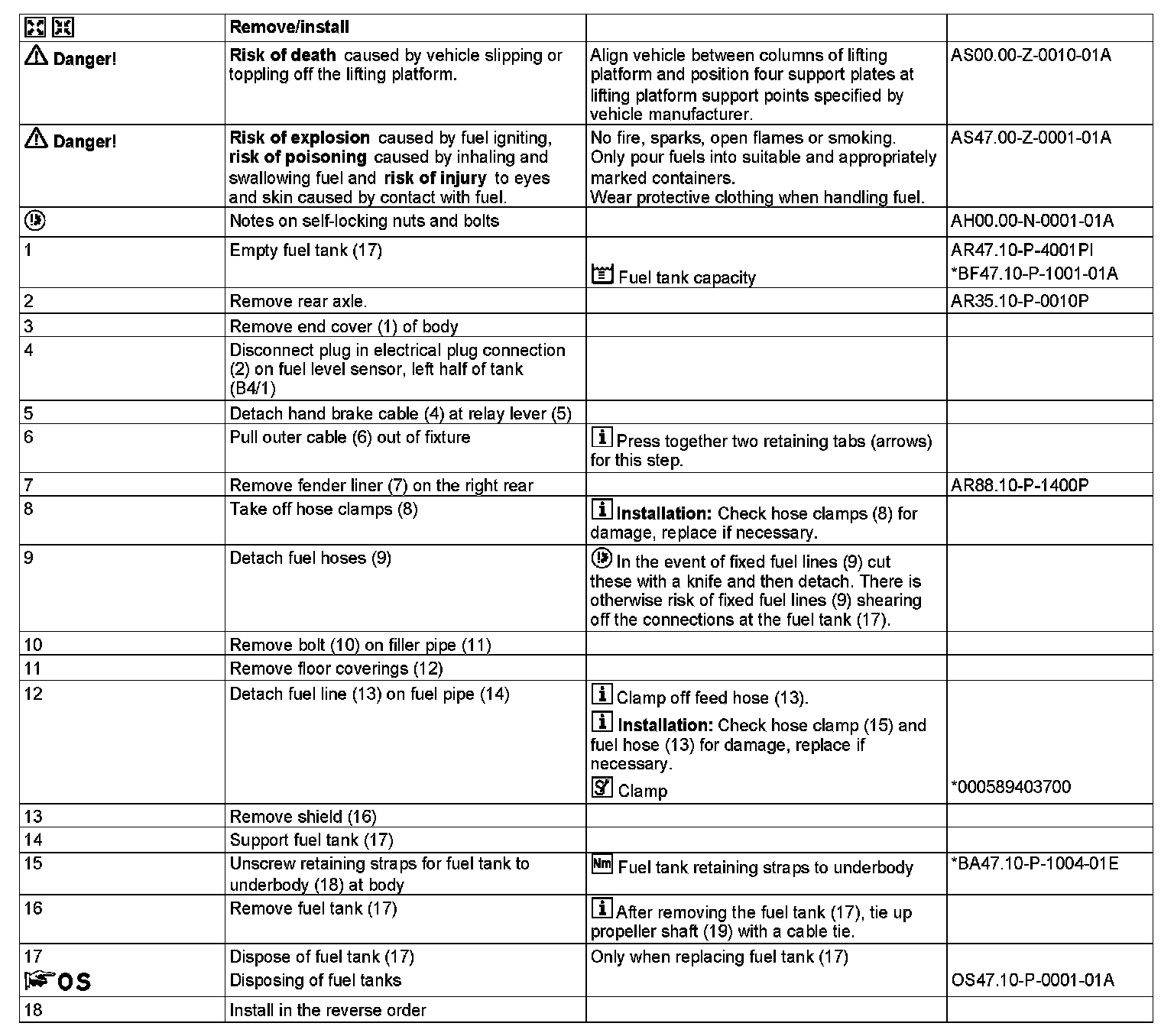

AR47.10-P-4100PI Remove/Install Fuel Tank

AR47.10-P-4100PI Remove/install Fuel Tank
- MODEL 203, 209 with engine 642

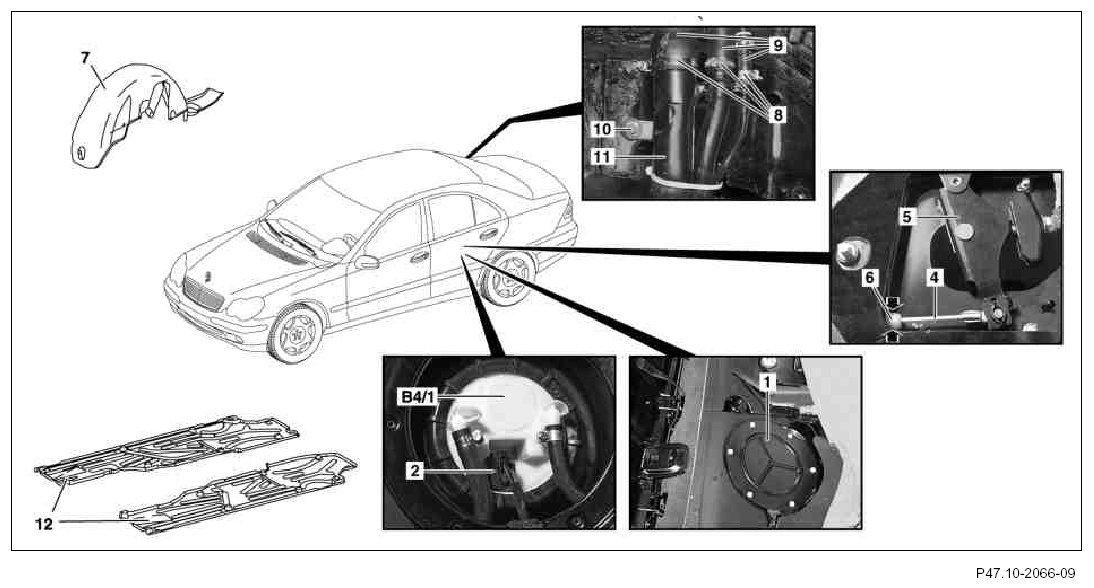

1 Cap
2 Electrical connector
4 Hand brake cable
5 Relay lever
6 Outer cable
7 Fender liner
8 Hose clamps
9 Fuel hoses
10 Bolt
11 Filler pipe
12 Floor coverings
B4/1 Left fuel level sensor

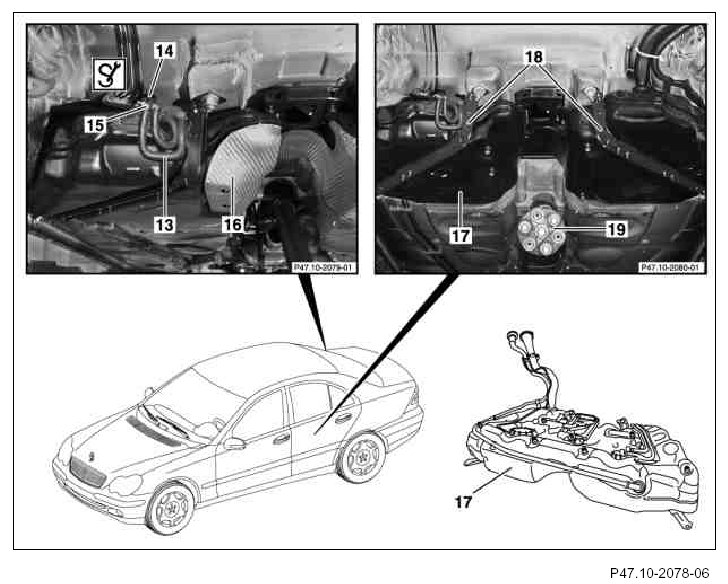

13 Fuel hose
14 Fuel feed pipe
15 Hose clamp
16 Shield
17 Fuel tank
18 Fuel tank retaining straps to underbody
19 Propeller shaft















000 589 40 37 00, Clamping device
