Home
>>
Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Evaporative Emission Control Canister
>>
Locations
>>

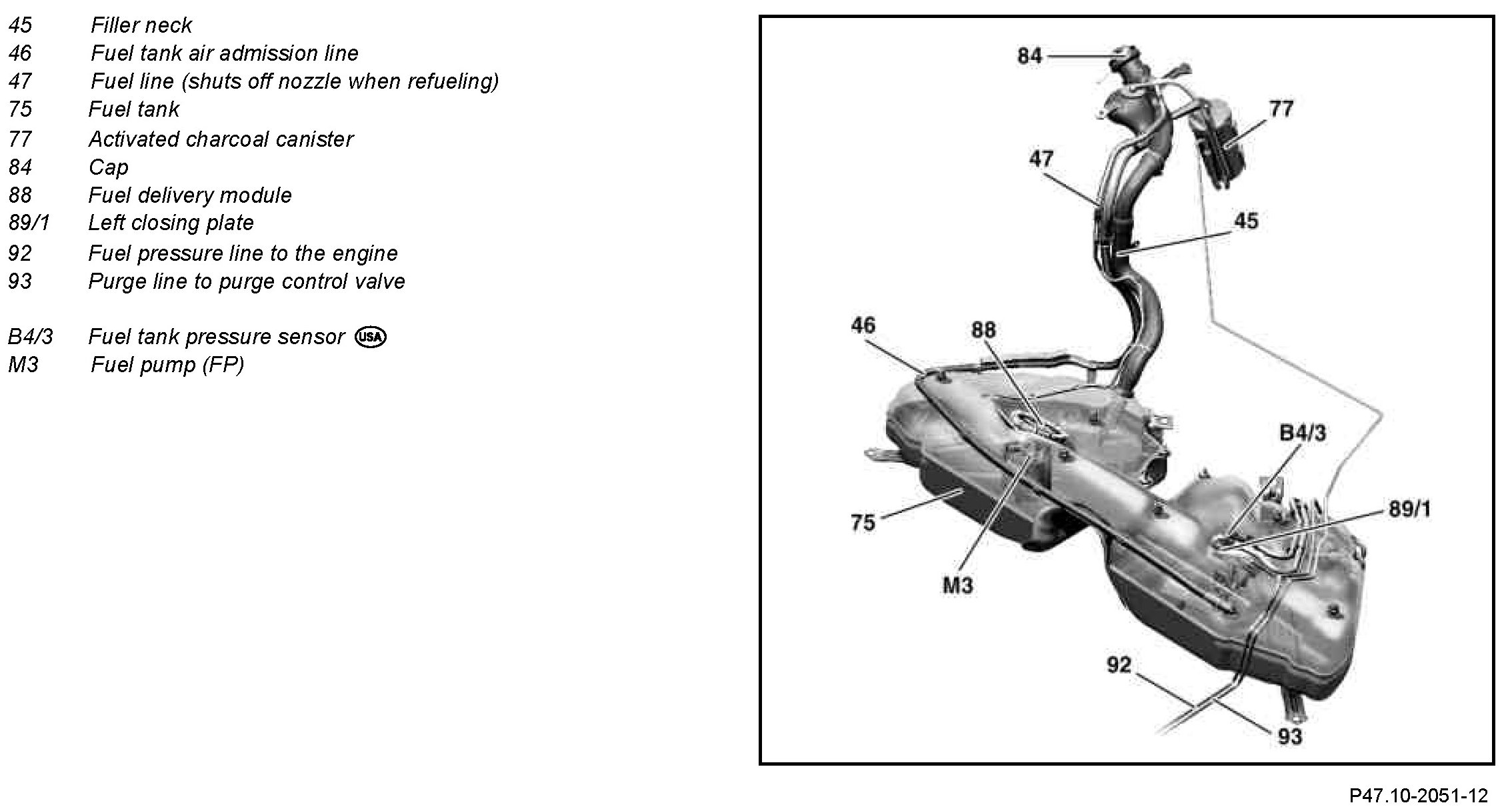

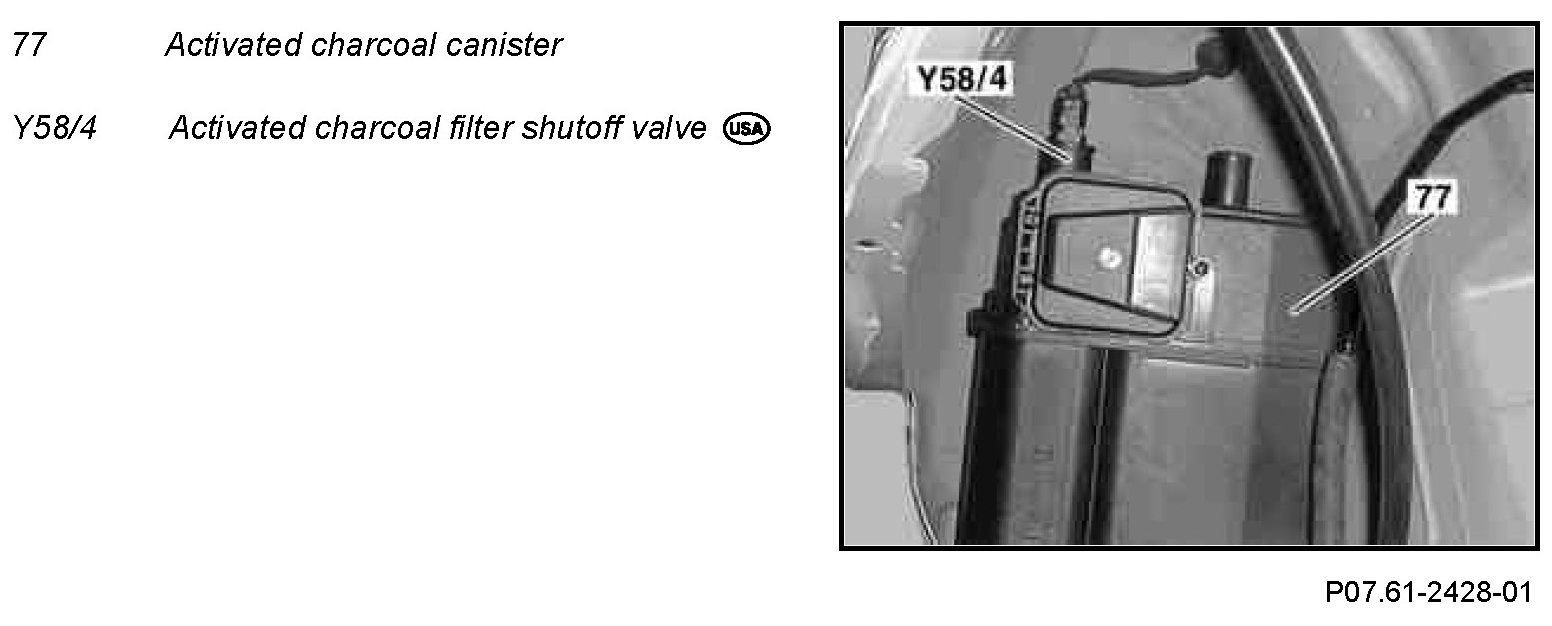

GF47.30-P-3102-01GS Activated Charcoal Canister Position
GF47.30-P-3102-01GS Activated Charcoal Canister Position
GF47.30-P-3102-01GS Activated Charcoal Canister Position
