ME-SFI Fuel Injection/Ignition System PE07.61-U-2101BA (Sheet 1)

ME-SFI Fuel Injection And Ignition System Control Module PE07.61-U-2101BA, Sheet 1
- ME 2.8

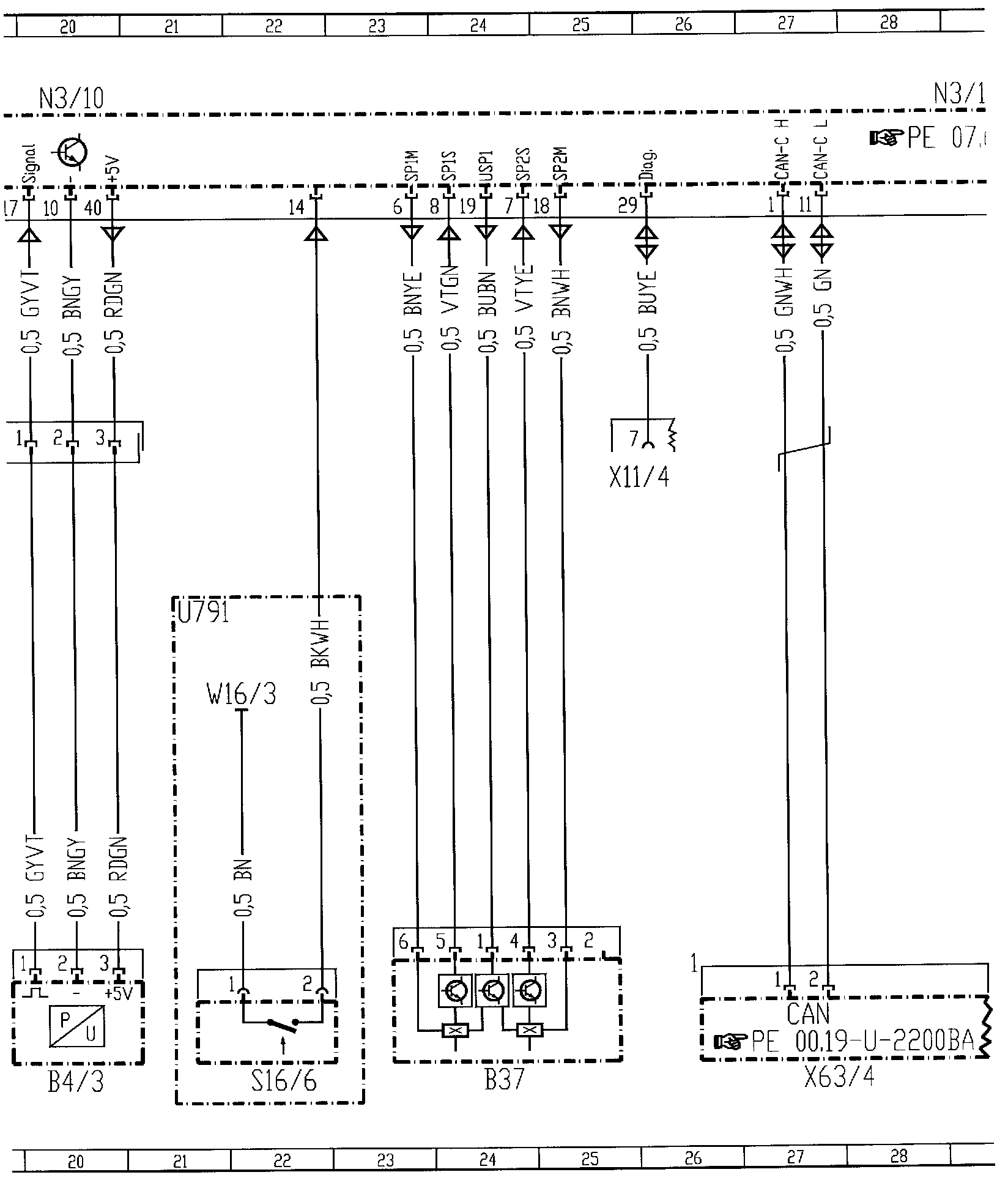

Diagram, Part 1:

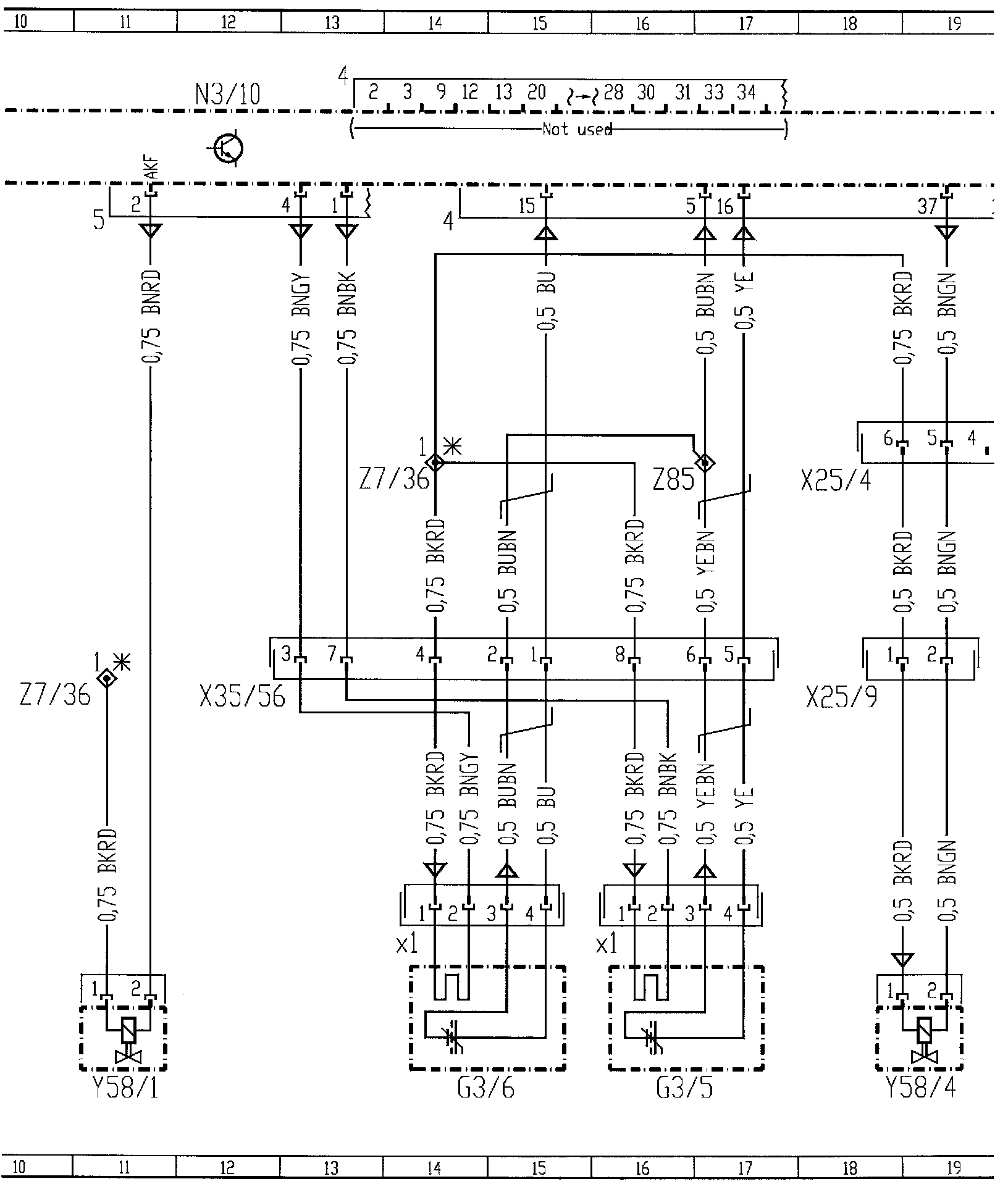

Diagram, Part 2:

Diagram, Part 3:

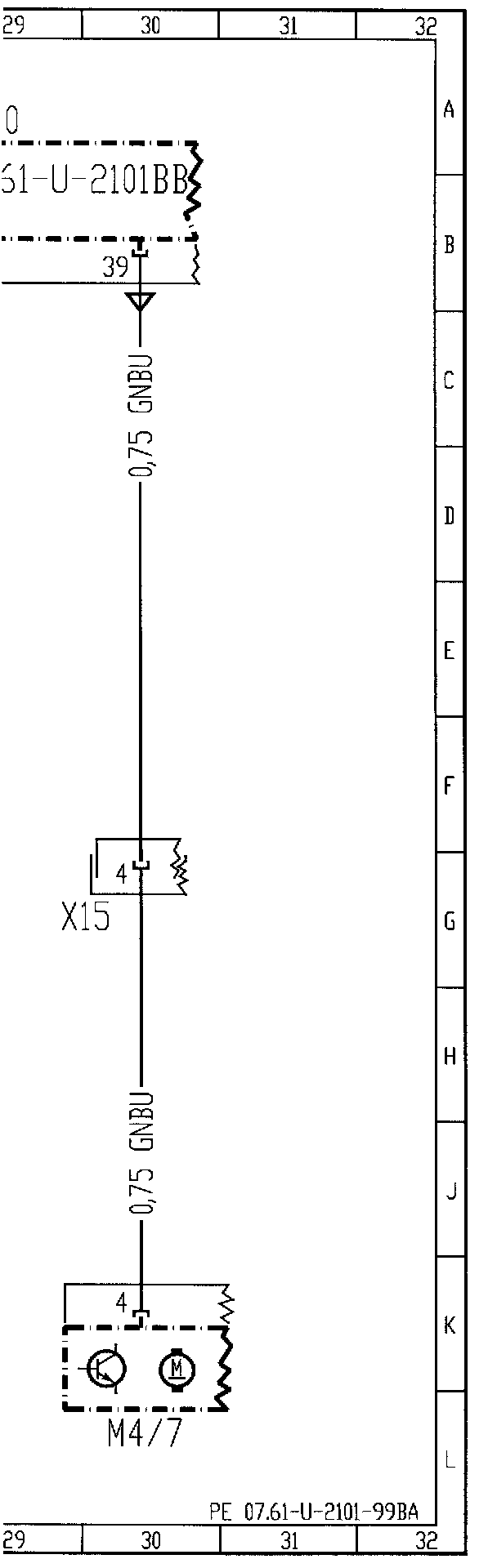

Diagram, Part 4:

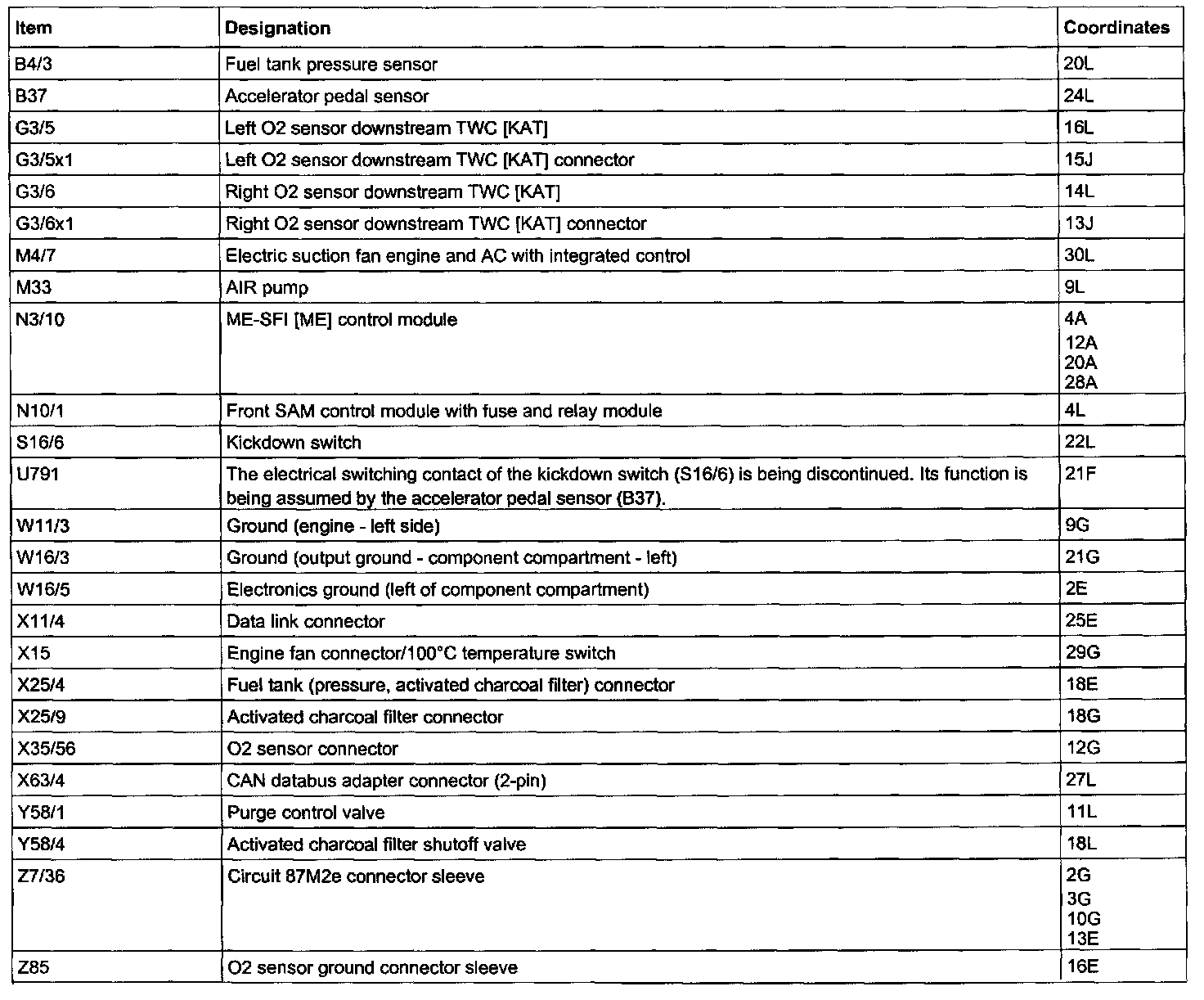

Component Description/Coordinates, B4/3 - Z85:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
