ME-SFI Fuel Injection and Ignition System Control Module PE07.61-U-2101BB

ME-SFI Fuel Injection And Ignition System Control Module PE07.61-U-2101BB
- ME 2.8, control unit N3/10, sheet 2

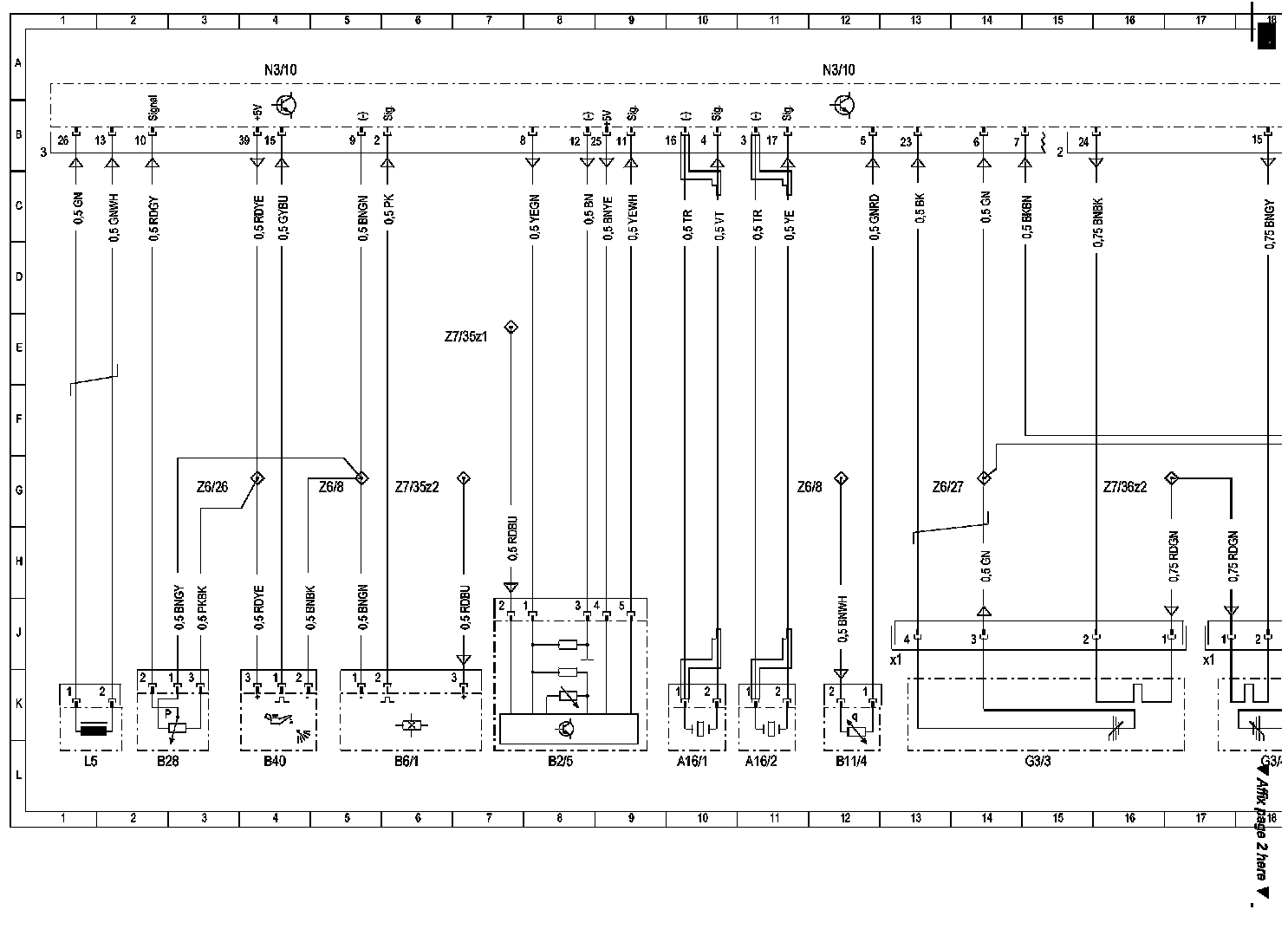

Wiring Diagram (Part 1):

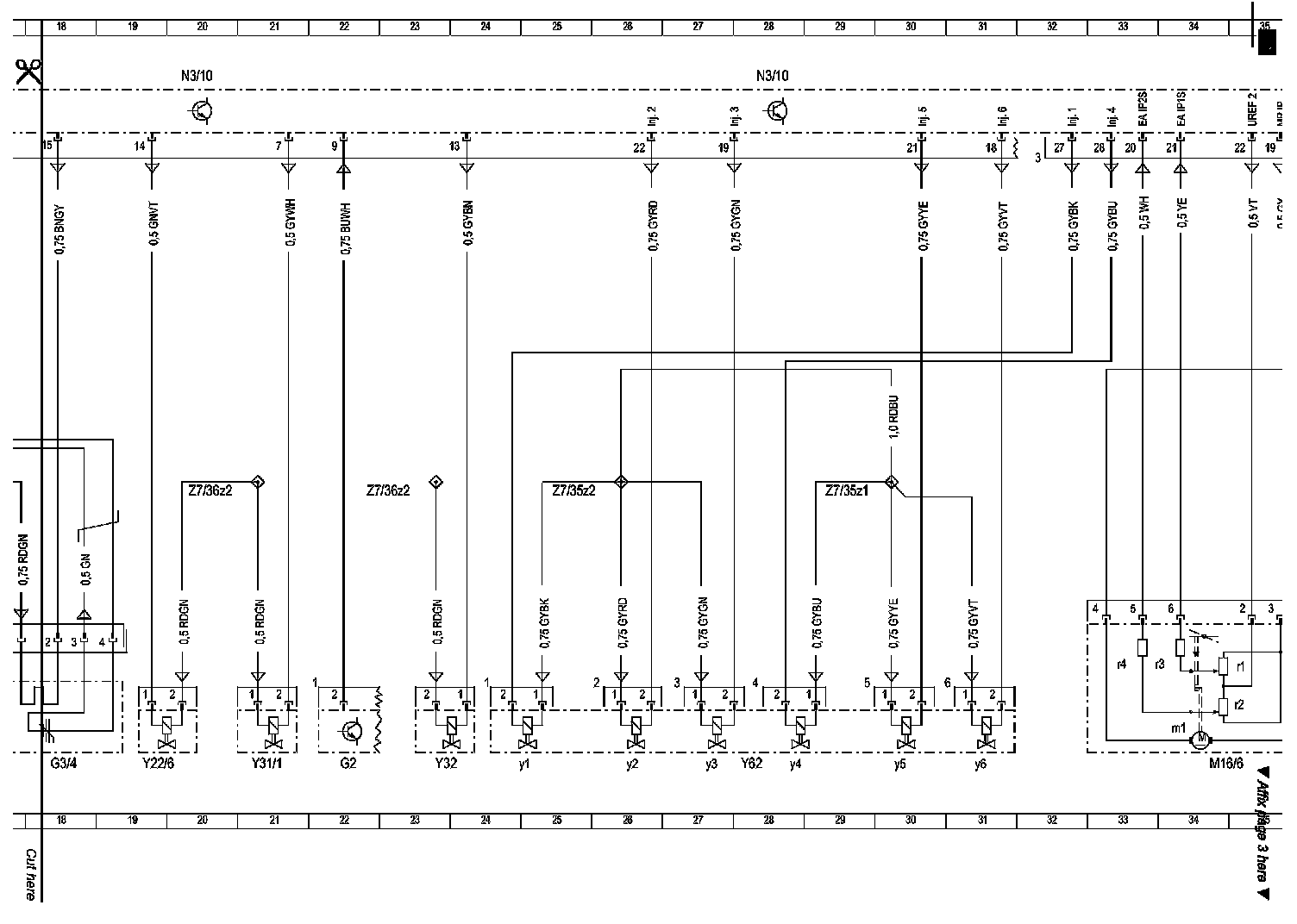

Wiring Diagram (Part 2):

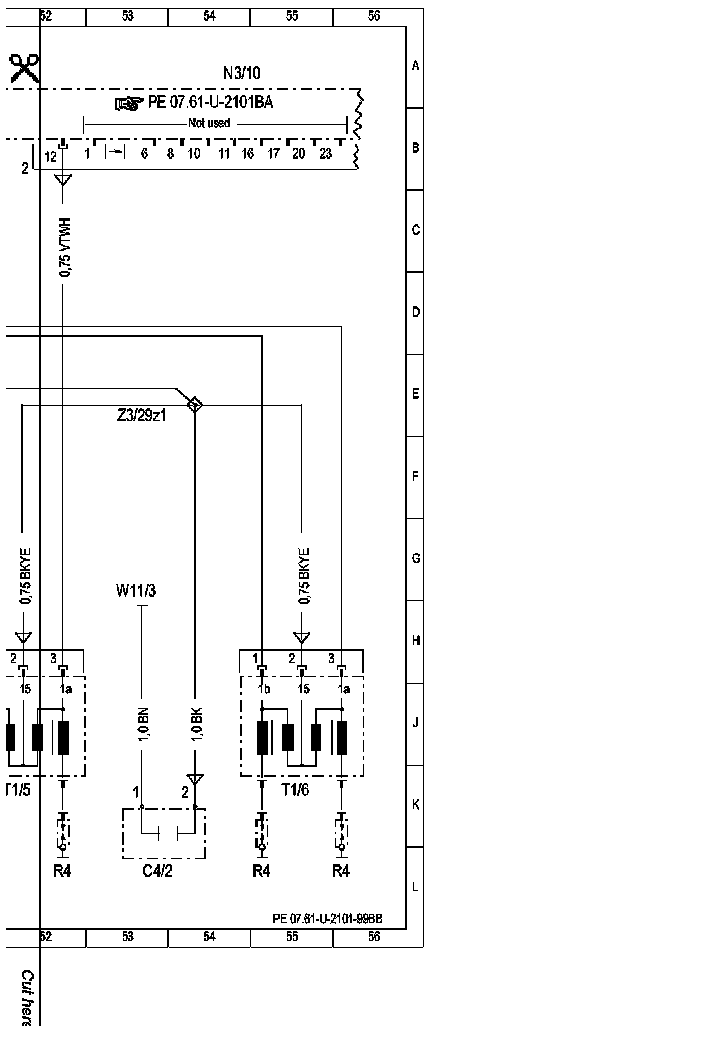

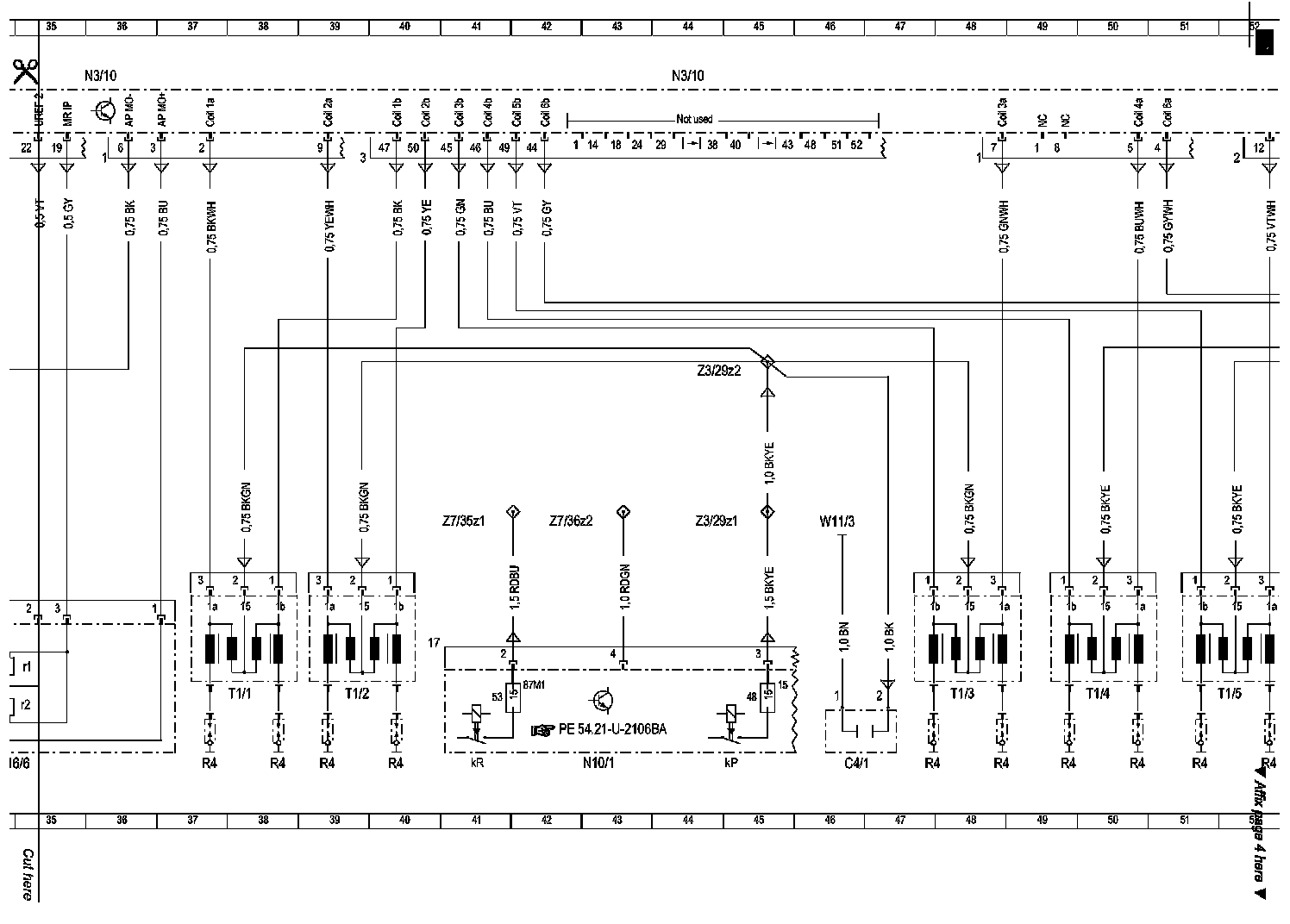

Wiring Diagram (Part 3):

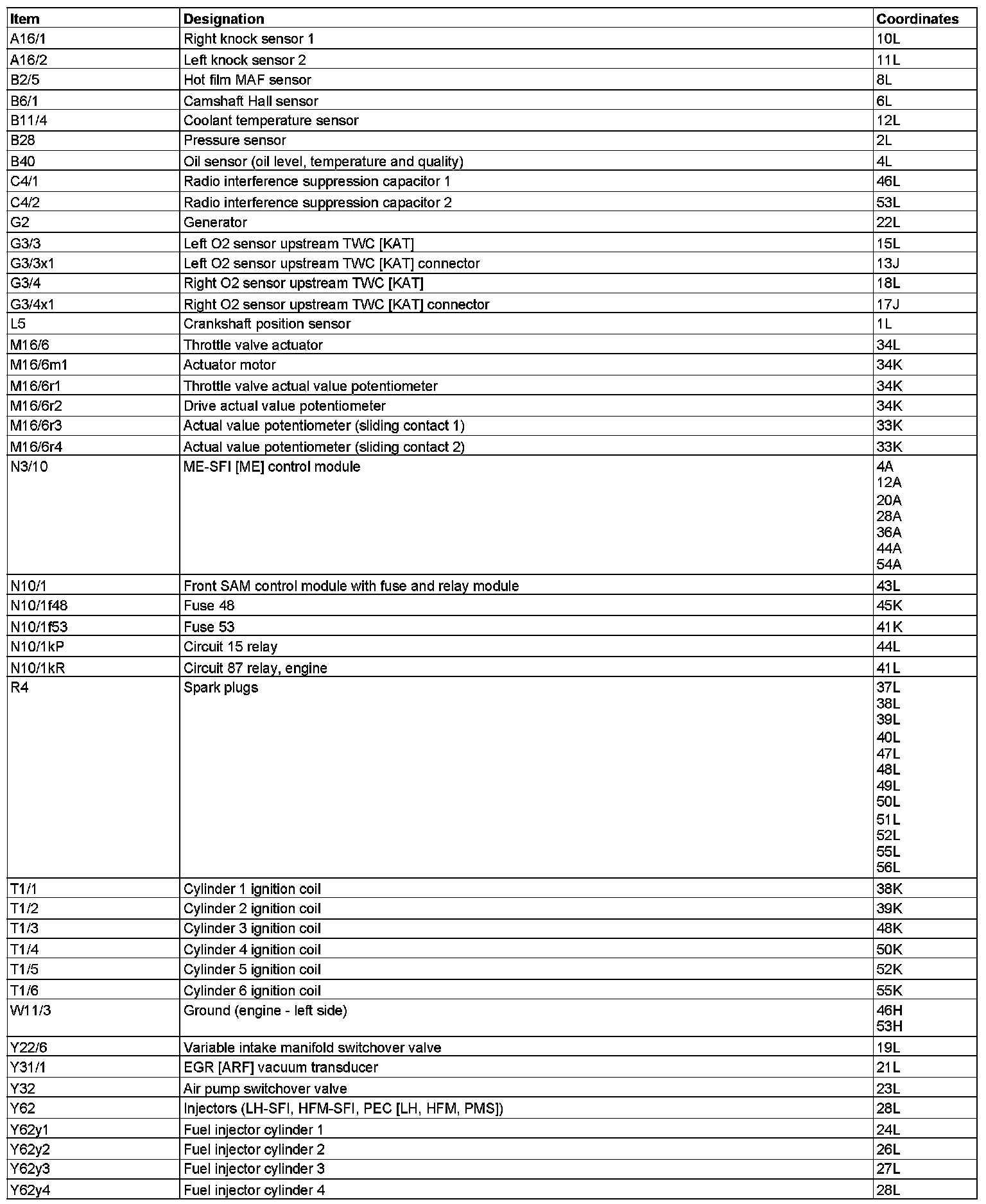

Component Description/Coordinates, A16/1 To Y62y4:

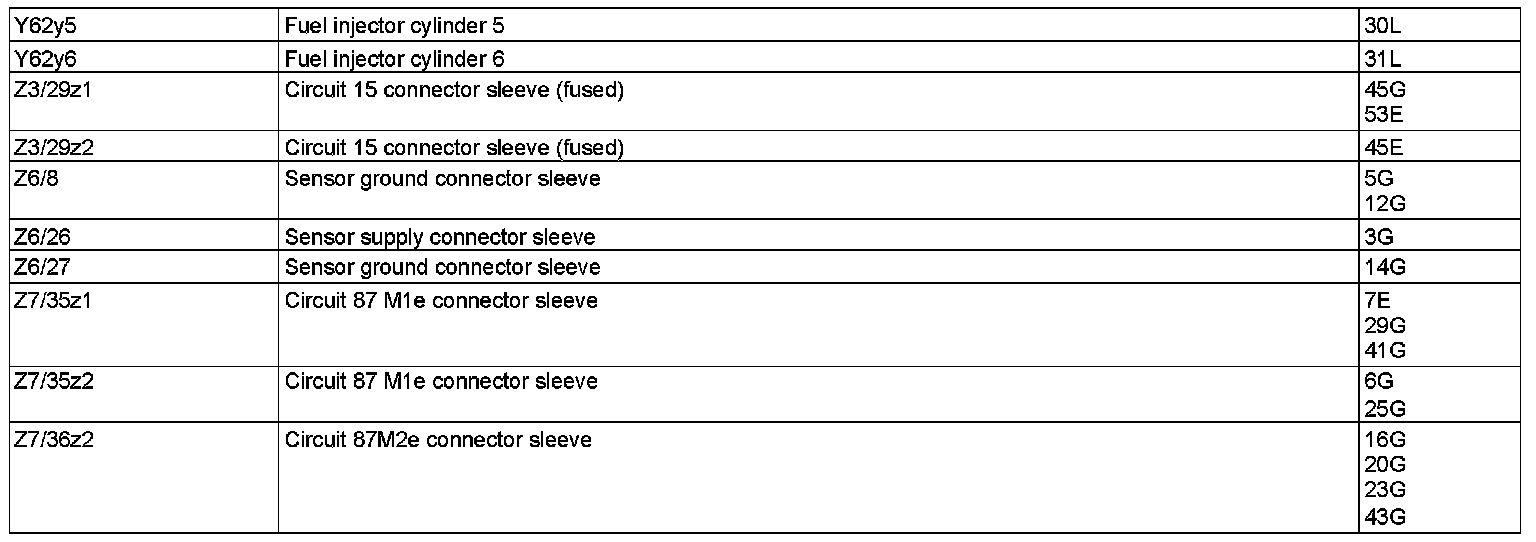

Component Description/Coordinates, Y62y5 To Z7/36z2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
