ME-SFI Fuel Injection and Ignition System Control Module PE07.61-U-2101BA

ME-SFI Fuel Injection And Ignition System Control Module PE07.61-U-2101BA
- ME 2.8, control unit N3/10, sheet 1

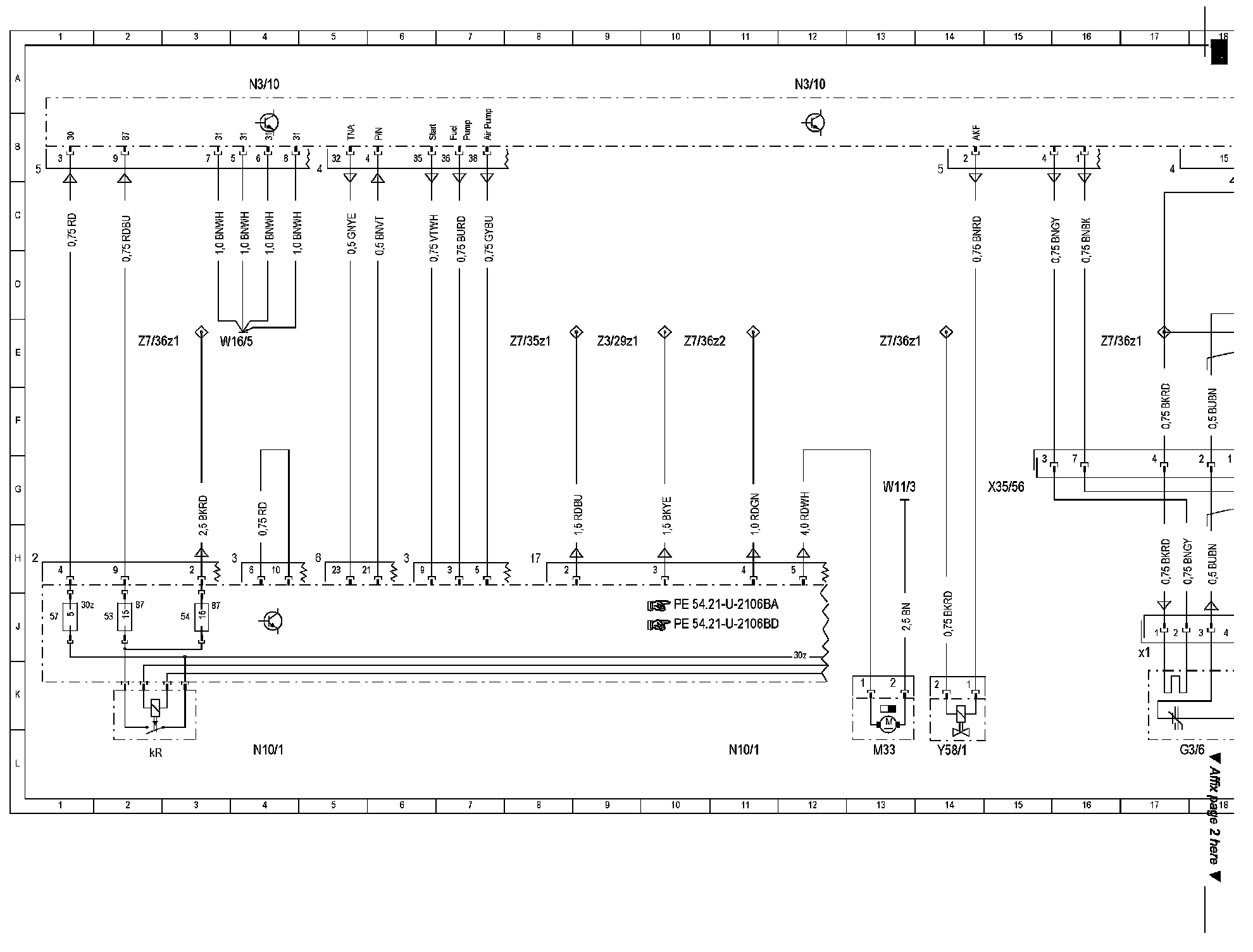

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

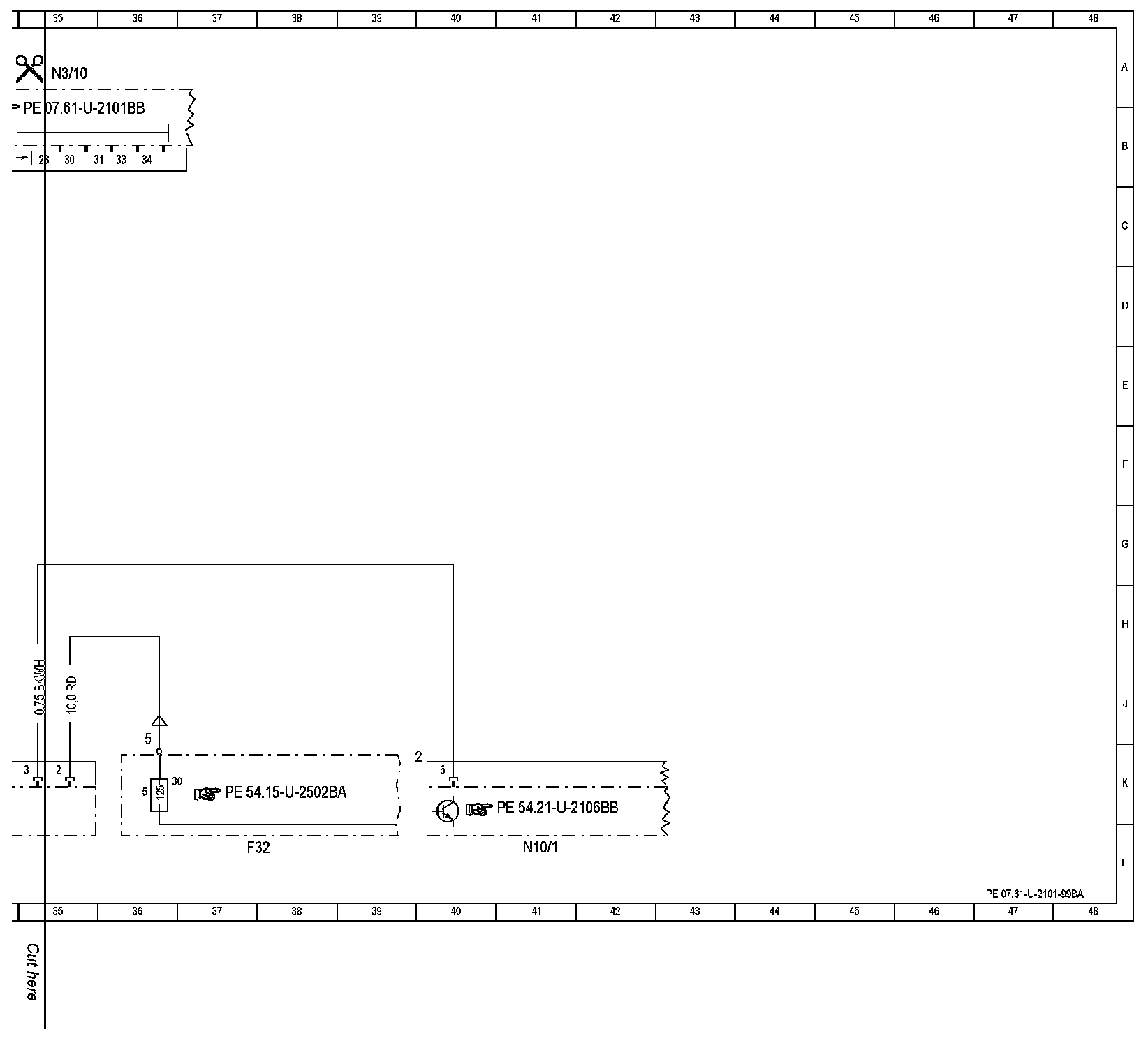

Wiring Diagram (Part 3):

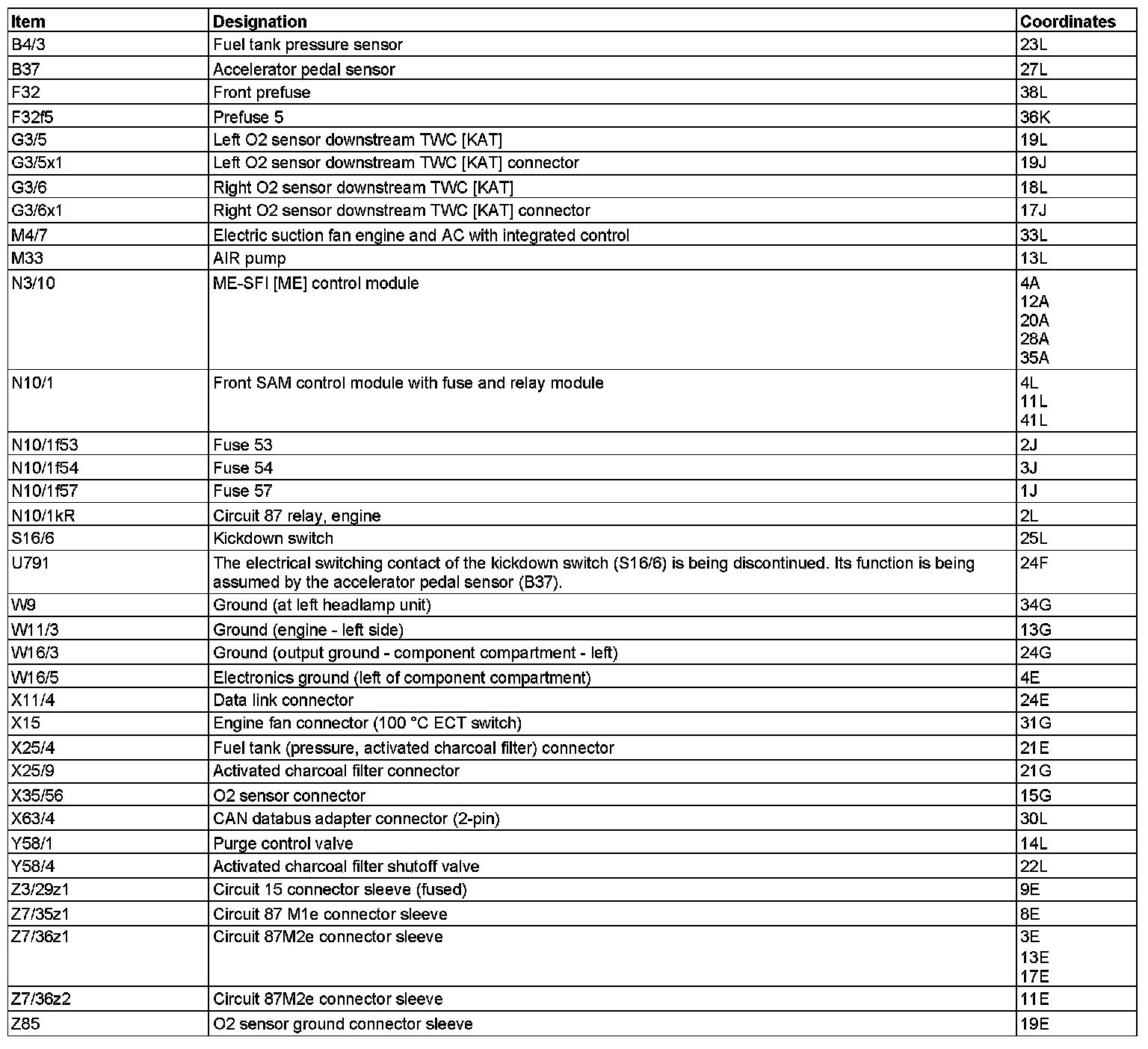

Component Description/Coordinates, B4/3 To Z85:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
