Stop Lamp Switch, Location/Task/Function
>>
Stop Lamp Switch, Location
Stop Lamp Switch, Location
Stop Lamp Switch, Location

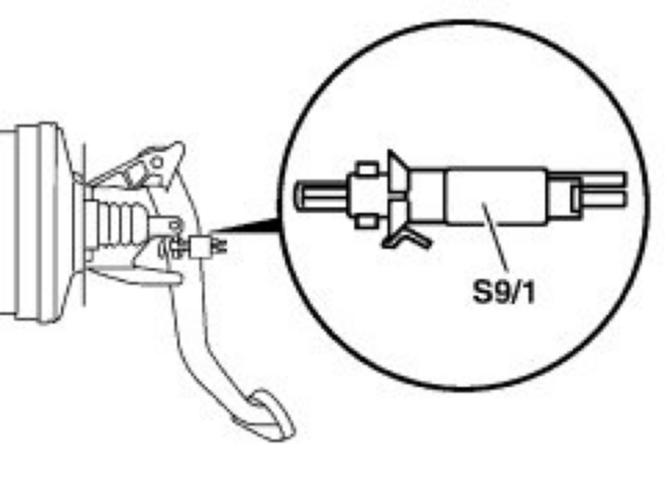

The stop lamp switch (S9/1) is mounted on the brake pedal.
