Secondary Air Injection Relay, Location

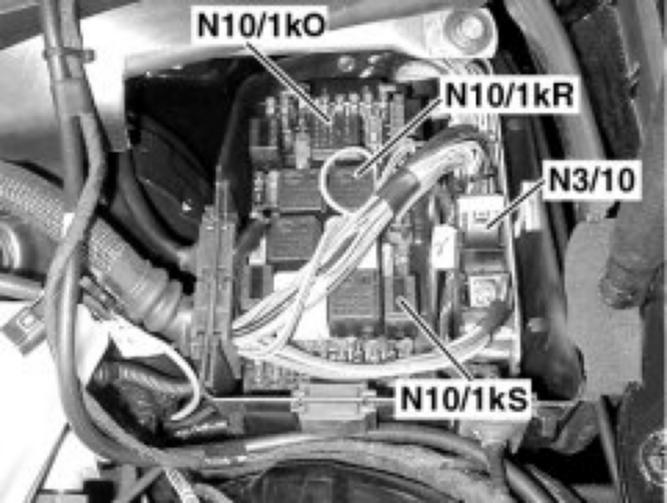

Secondary Air Injection Relay, Position




Location on Model 203
N3/10 ME-SFI [ME] control module
N10/1kO Air pump relay
N10/1kR Engine circuit 87 relay
N10/1kS Starter relay
