Pedal Value Sensor, Task




Pedal Value Sensor, Task

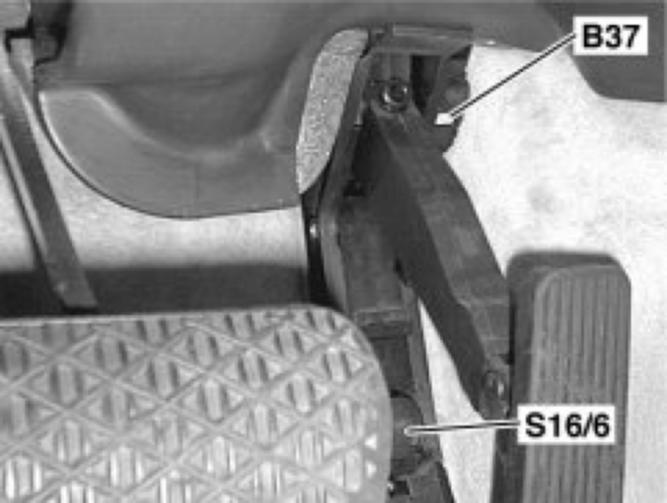

Shown on model 203, 215, 220
B37 Accelerator pedal sensor (advanced designation; pedal value sensor)

Detects the accelerator pedal position and passes on the information to the engine control unit
