Chassis Specific Locations

Motor Electronics (ME-SFI) Fuel Injection And Ignition System Arrangement Of Components

Model 209

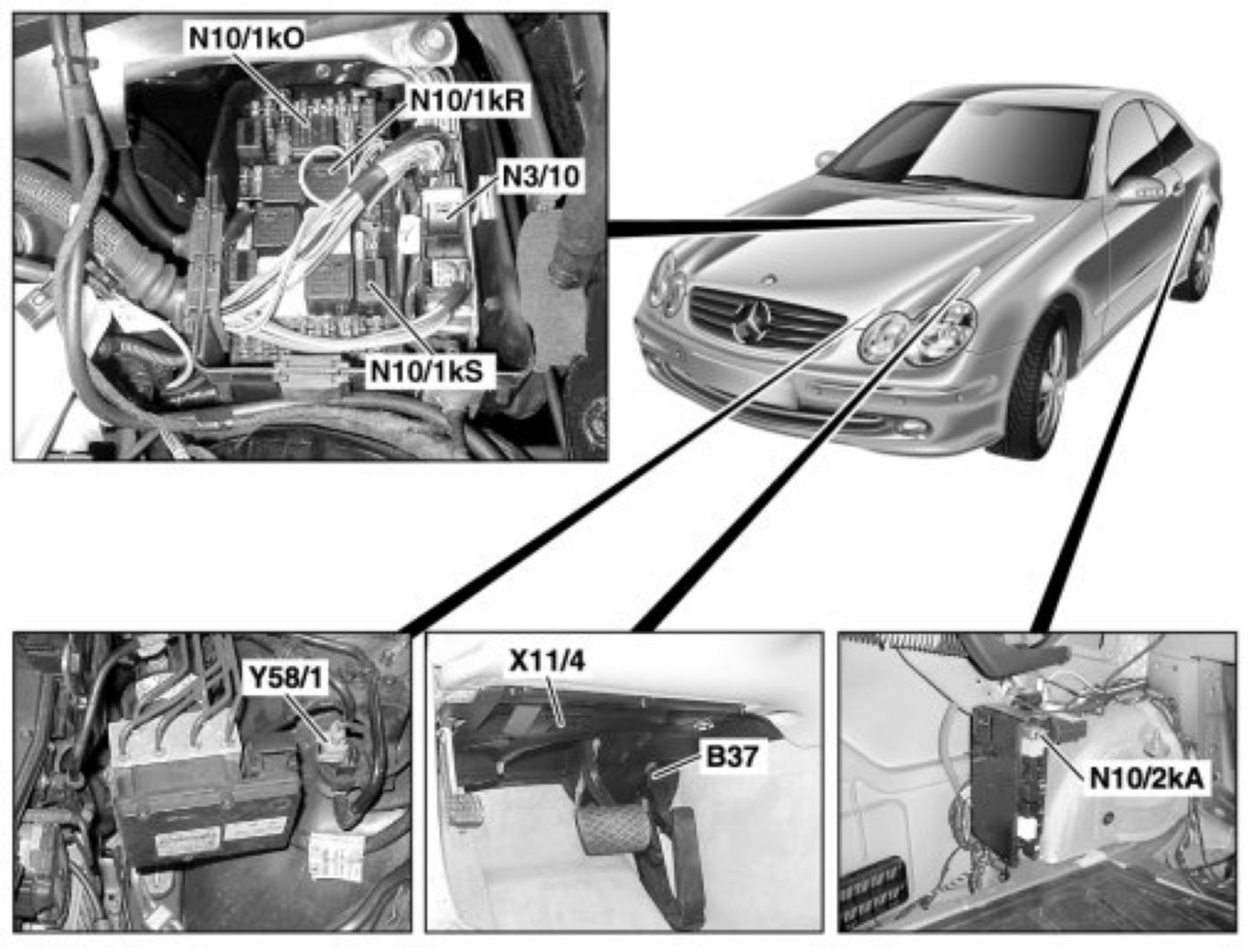

B37 Accelerator pedal sensor
X11/4 Data link connector
Y58/1 Purge control valve
N3/10 ME-SFI [ME] control module
N10/1kO Relay for air injection (control module SAM with fuse and relay module at the front)
N10/1kR Engine circuit 87 relay
N10/1kS Starter relay
N10/2kA Relay for fuel pump (control module SAM with fuse and relay module at the rear)

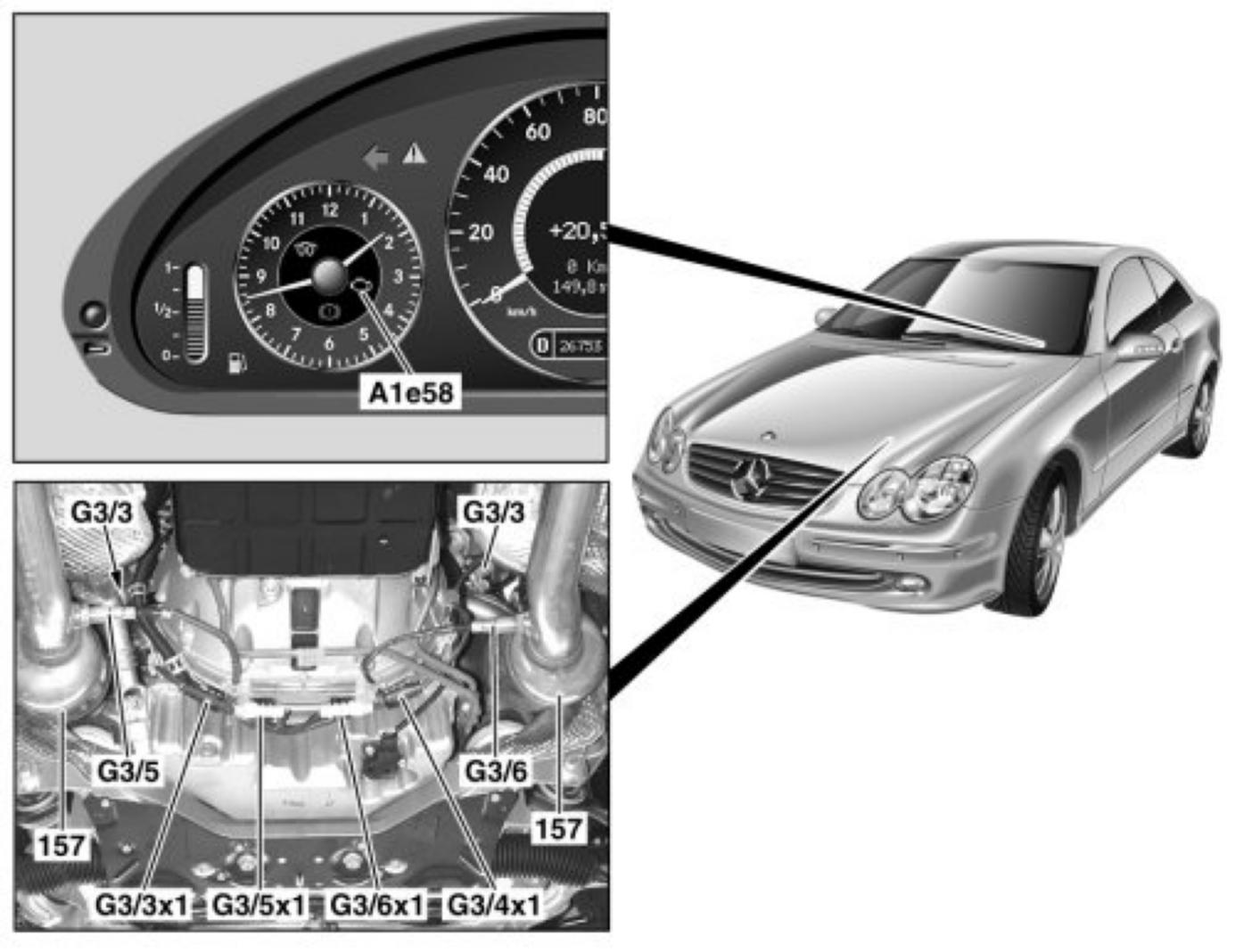

157 Firewall catalytic converter
A1e58 Engine diagnosis malfunction indicator lamp
G3/3 Left O2 sensor upstream of catalytic converter x1 Plug connection
G3/4 Right O2 sensor upstream of catalytic converter x1 Plug connection
G3/5 Left O2 sensor downstream of catalytic converter x1 Plug connection
G3/6 Right O2 sensor downstream of catalytic converter x1 Plug connection

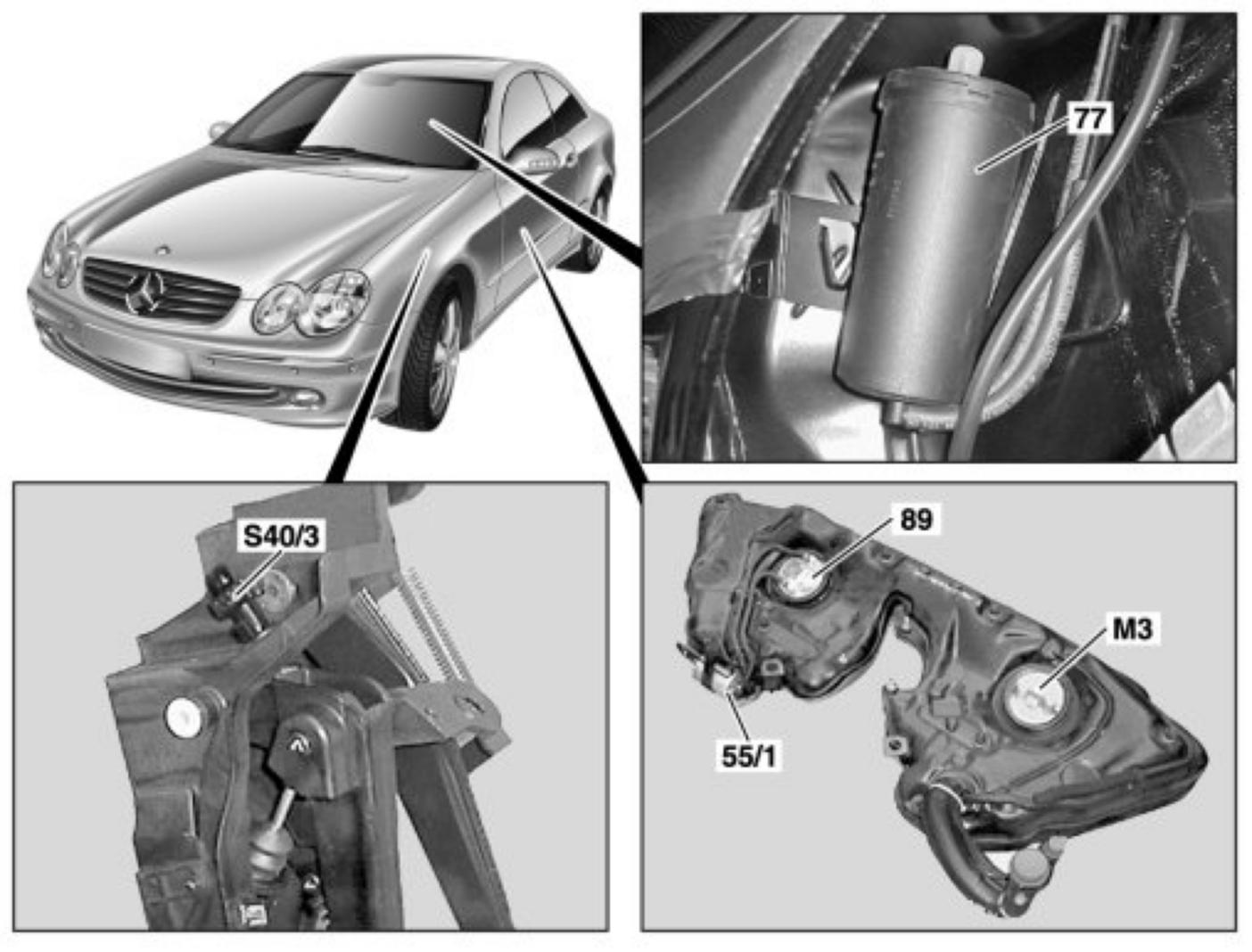

55/1 Fuel filter with integrated fuel pressure regulator
77 Activated charcoal canister
89 Closing plate
M3 Fuel pump (FP)
S40/3 Clutch pedal switch (MT)
