ME-SFI Control Unit Design

ME-SFI Control Unit, Design

ME2.7 and ME2.8 control unit
Engine 111 EVO (Siemens)

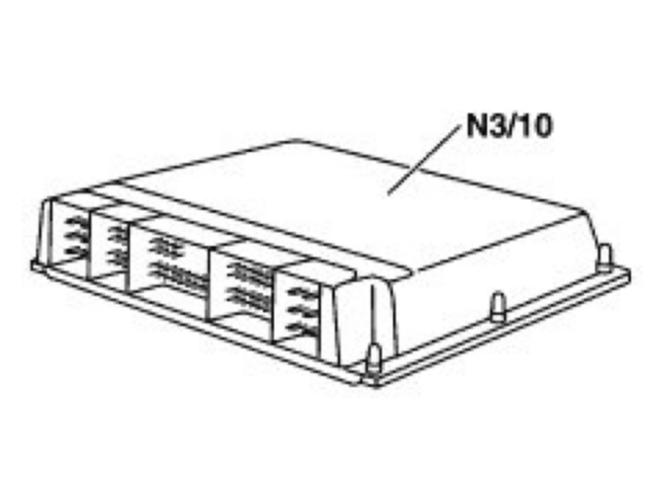

The ME-SFI control unit (N3/10) is made of aluminium and is designed as a shell concept standard housing. It is designed for installation in a protective housing (right fuse box).
The cables are connected by means of 5 sockets.

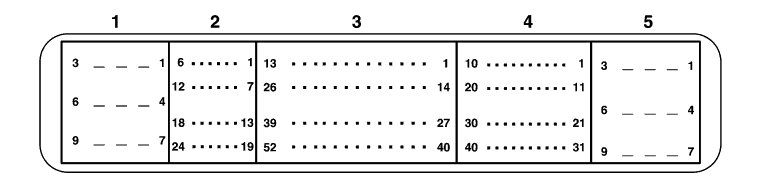

PIN assignment at ME-SFI control unit (N3/10) and arrangement of connectors
Connector 1, 2, 3 Engine side
Connector 4, 5 Vehicle side
