Ignition Coils, Task

Ignition Coils, Task




Shown on ENGINE 112

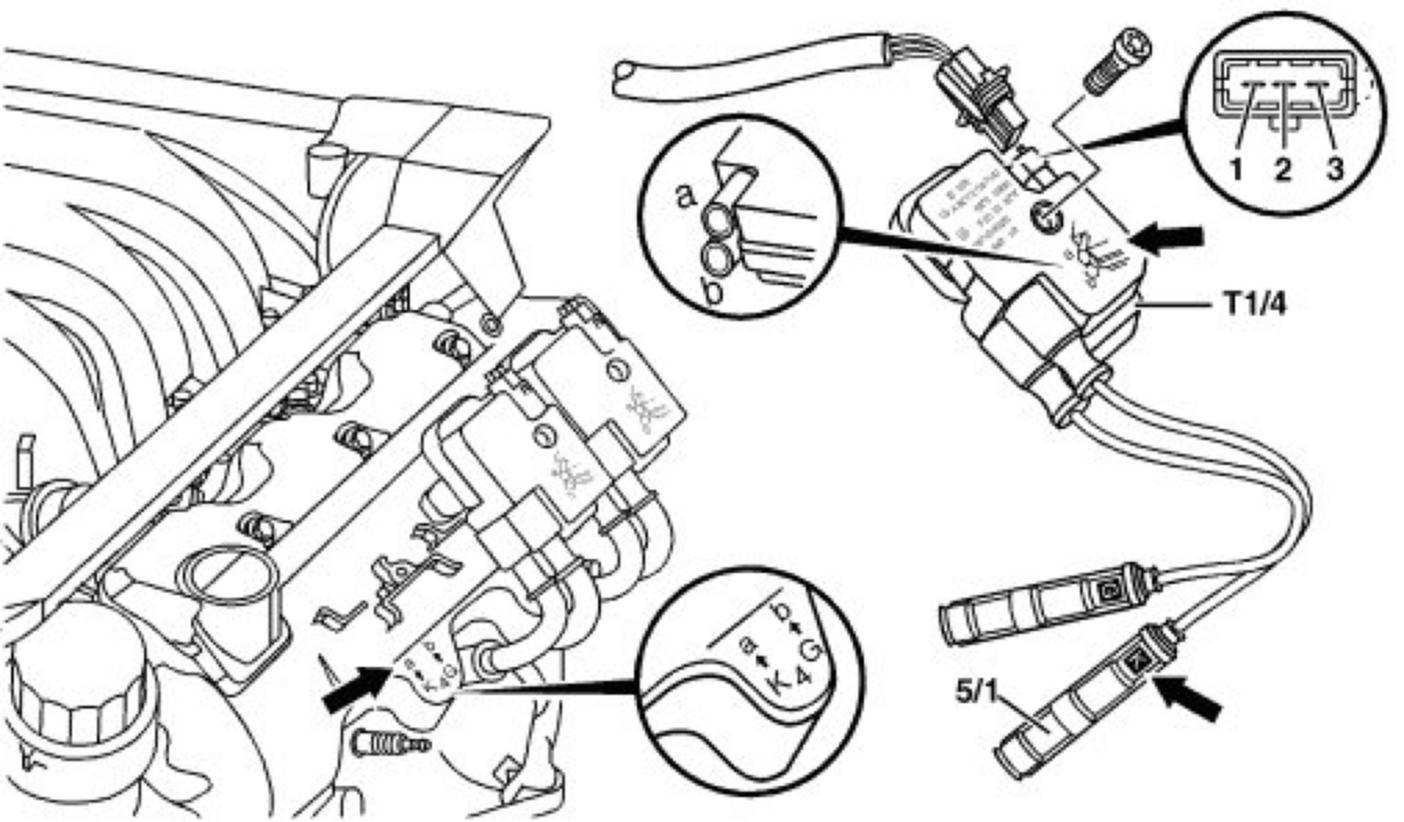

5/1 Spark plug connector
T1/4 Ignition coil cylinder 4 (Dual ignition coil)
Pin 1 Circuit 1b
Pin 2 circuit 15 fused
Pin 3 Circuit 1a
A, B High voltage connection
Arrows Assignment of high voltage connection/ spark plug connector/cylinder

Supplying adequate ignition energy in all operating conditions for the particular ignition circuit.
