Ignition Coils, Location
Ignition Coils, Location

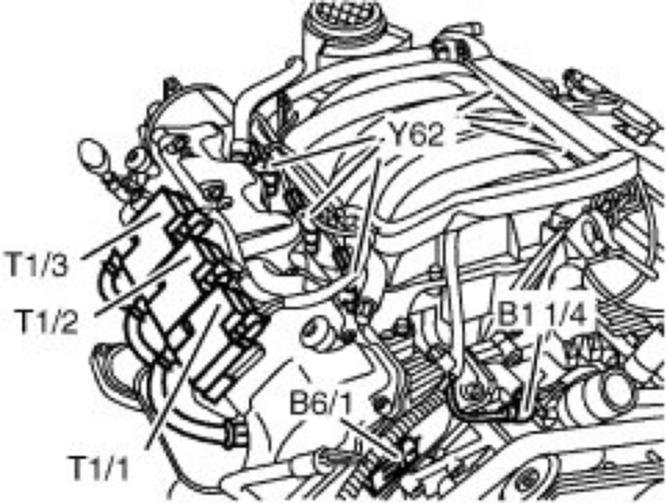

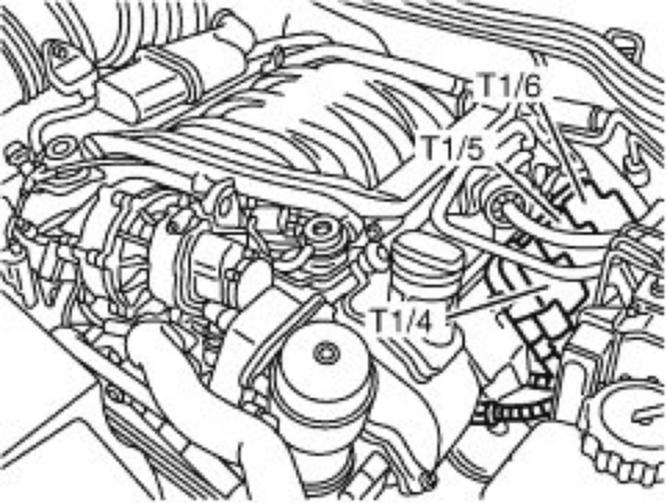

Location on Engine 112
T1/1-T1/6 Cylinder 1 to 6 ignition coil

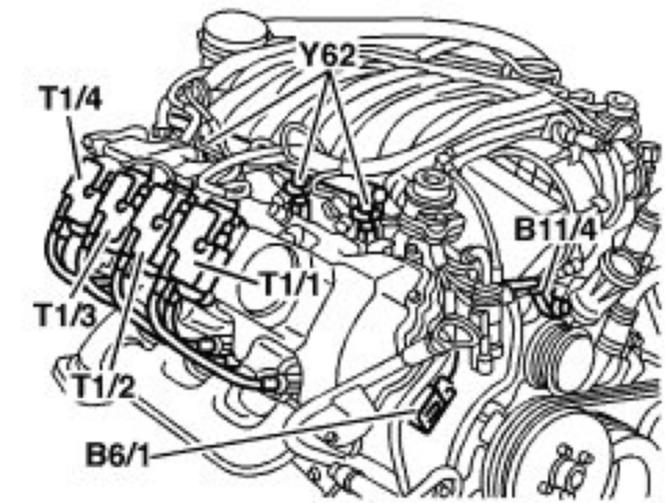

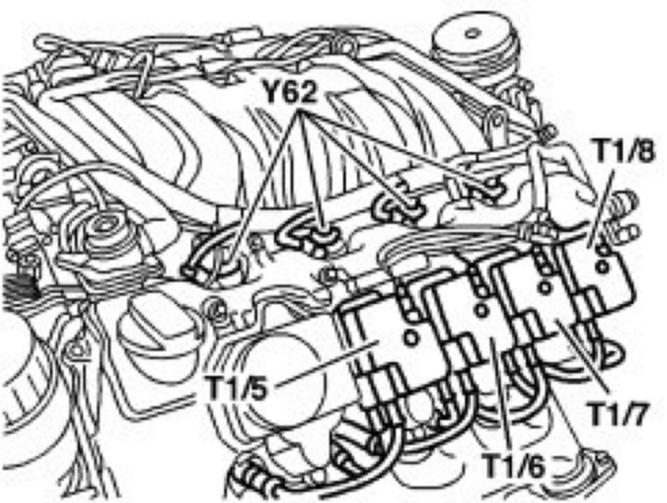

Location on Engine 113
T1/1-T1/8 Cylinder 1 to 8 ignition coil
Ignition Coils, Location
Location on Engine 112
T1/1-T1/6 Cylinder 1 to 6 ignition coil
Location on Engine 113
T1/1-T1/8 Cylinder 1 to 8 ignition coil
