Fuel Tank, Design

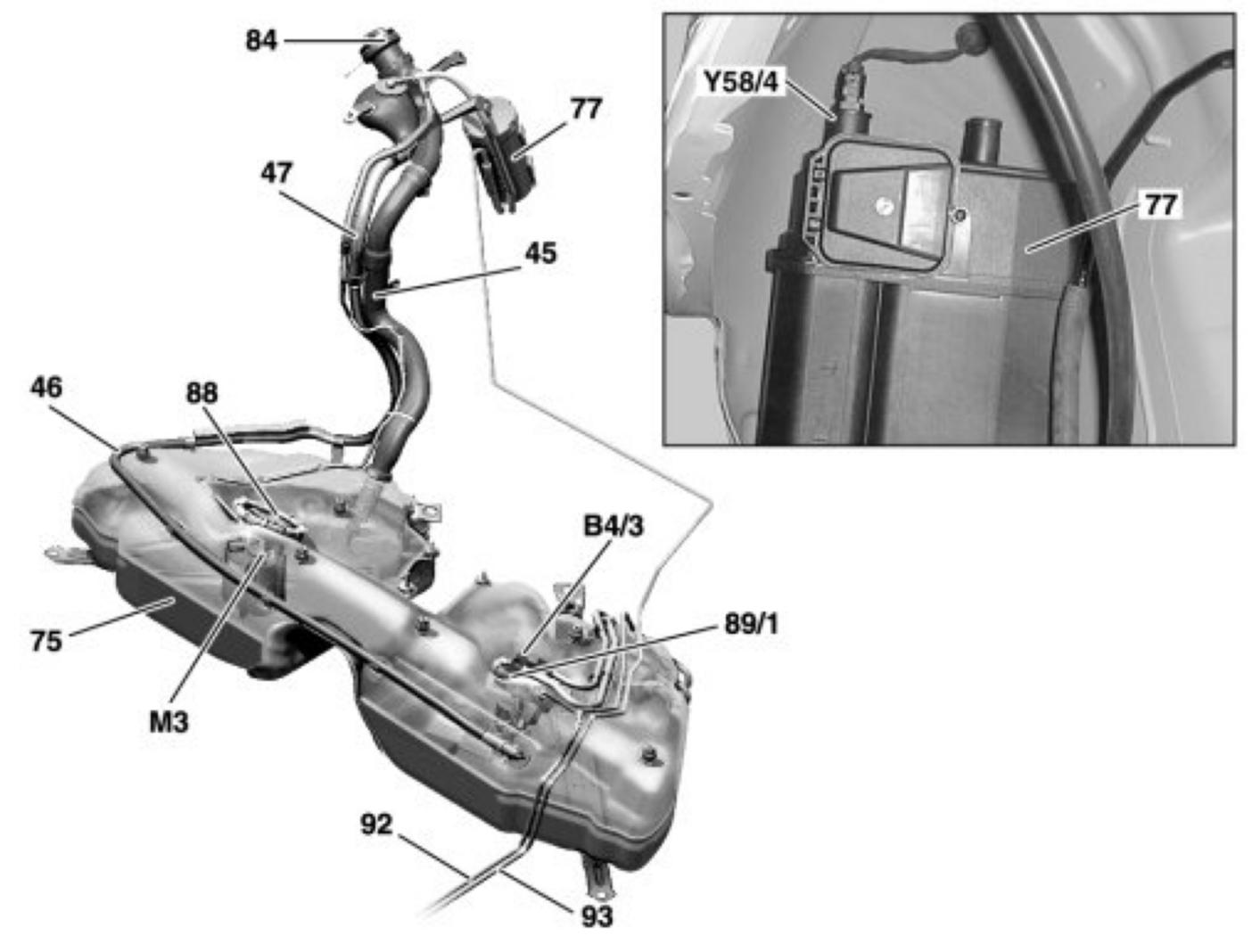

Fuel Tank, Design




45 Filler neck
46 Fuel tank air admission line
47 Fuel line (shuts off nozzle when refueling)
75 Fuel tank
77 Activated charcoal canister
84 Cap
88 Fuel delivery module
89/1 Left closing plate
92 Fuel pressure line to engine
93 Purge line to purge control valve
B4/3 Fuel tank pressure sensor
M3 Fuel pump (FP)
Y58/4 Activated charcoal canister shutoff valve

The fuel tank (75) is split into two chambers because of the "U"-shaped recess. The chambers are connected to each other.
