Front SAM Control Module With Fuse and Relay Module, Location

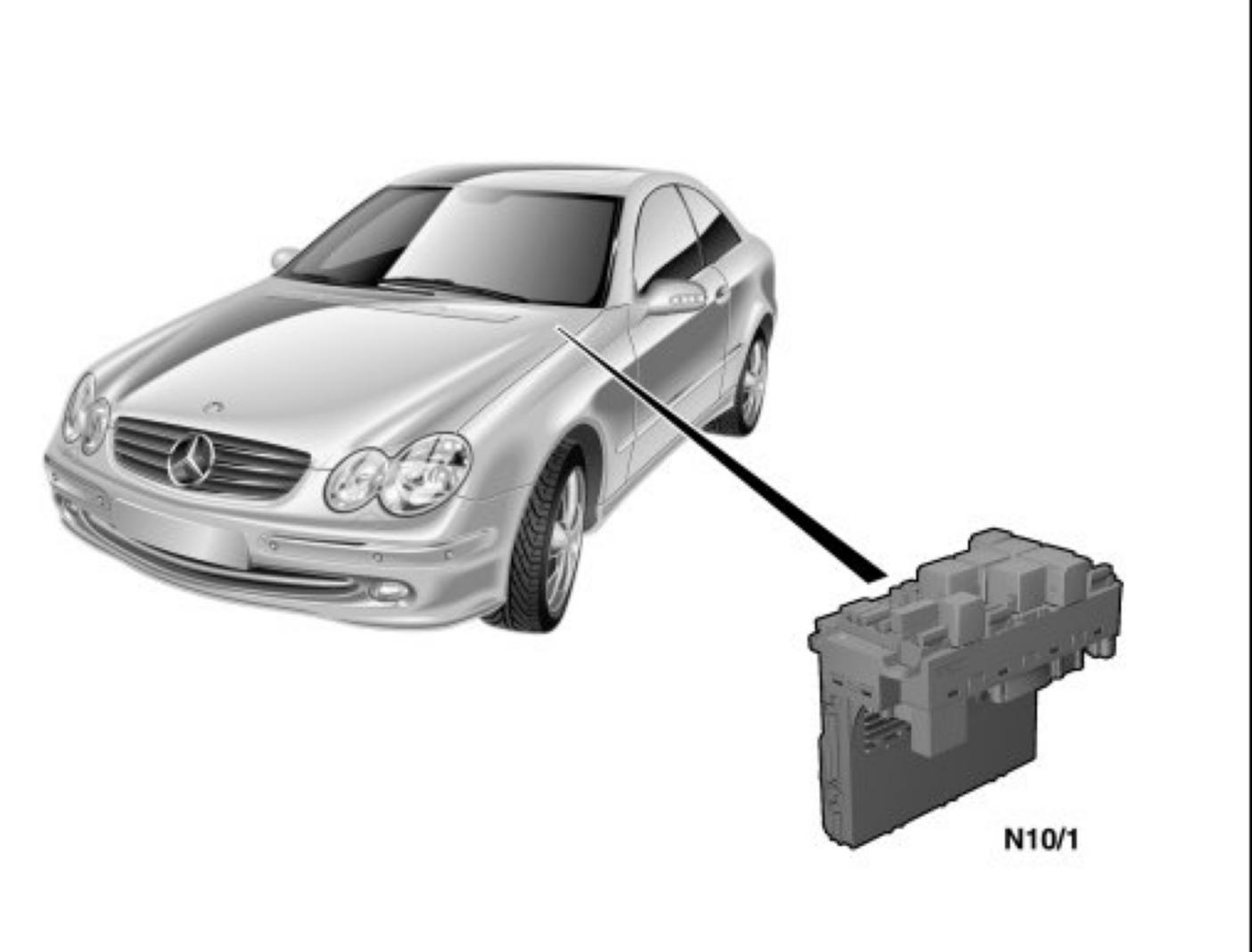

Front SAM control module with fuse and relay module, location




Location illustrated on model 209.3
N10/1 Front SAM control module with fuse and relay module

The front SAM control module with fuse and relay module (N10/1) is located in the engine compartment near the left hood hinge (looking towards front of vehicle).
