Exhaust Gas Recirculation Vacuum Transducer, Location

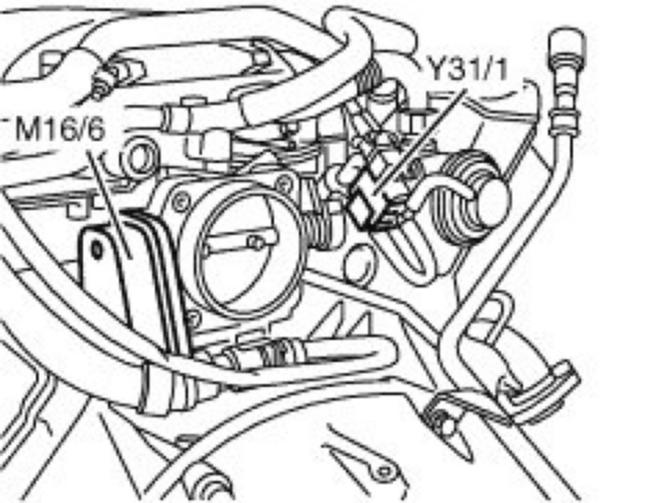

Exhaust Gas Recirculation Vacuum Transducer, Position




Engine 112, 113
M16/6 Throttle valve actuator
Y31/1 EGR vacuum transducer

The EGR [ARF] vacuum transducer is mounted behind the right cylinder head.
