Distronic Switch Block, Task

Distronic Switch Block, Task

ENGINES 112, 113, 137, 275, 613, 628 in MODEL 220 with CODE (219a) Distronic (DTR)
ENGINES 113, 137, 275 in MODEL 215 with CODE (219a) Distronic (DTR)
ENGINES 112, 113 in MODEL 230 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 271, 646, 647, 648 in MODEL 211 with CODE (219a) Distronic (DTR)
ENGINE 112, 113, 271, 612 in MODEL 209 with CODE (219a) Distronic (DTR)
ENGINE 285 in MODEL 240 with CODE (219a) Distronic (DTR)
ENGINE 113, 272 in MODEL 219 with CODE (219a) Distronic (DTR)

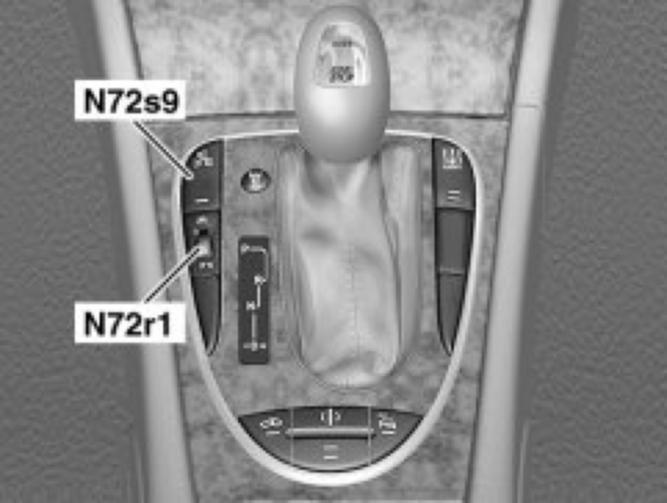

Shown on models 211, 219
N72 DTR distance potentiometer
N72s9 DTR switch (distance warning function)

Distance potentiometer: influences the distance to the vehicle ahead.
Switch for distance warning function: Switches the separate distance warning function on and off for a switched off Distronic (warning tone and loudspeaker symbol).
