Distronic Radar Sensor, Task

Distronic Radar Sensor, Task

ENGINES 112, 113, 137, 275, 613, 628 in MODEL 220 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 113, 137, 275 in MODEL 215 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 275 in MODEL 230 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 271, 646, 647, 648 in MODEL 211 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 271, 612 in MODEL 209 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 285 in MODEL 240 with CODE (219a) Distronic (DTR)

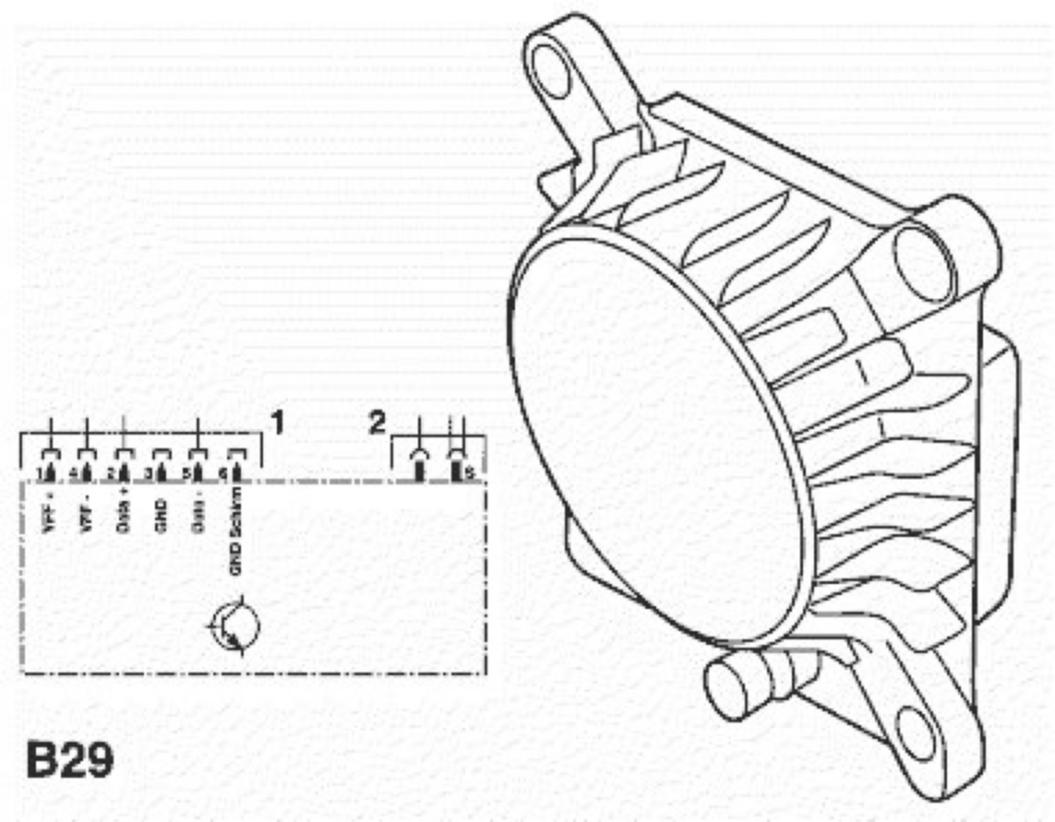

B29 DTR radar sensor
1 Connector of radar sensor
Pin 1 Voltage supply, positive
Pin 2 Serial interface to Distronic control unit, high signal
Pin 3 Not used
Pin 4 Voltage supply, negative
Pin 5 Serial interface to Distronic control unit, low signal
Pin 6 Screening
2 Coaxial connector
Internal line HF signal High
External line HF signal Low

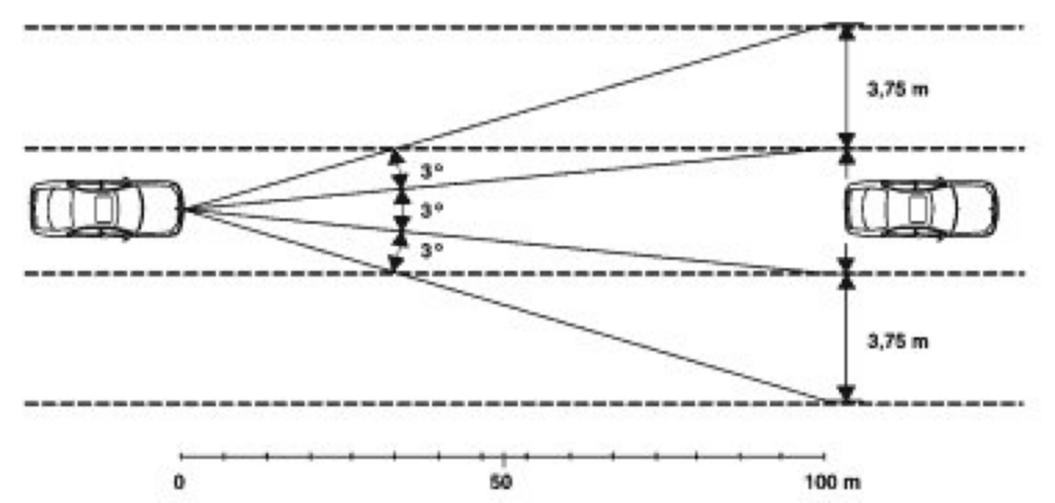

Example
Target object detection with three transmission/reception beams each with a detection angle of 3°.

Transmitting radar signals and receiving the radar signals reflected by obstacles.
