DTR Control Unit, Location

DTR Control Unit, Location

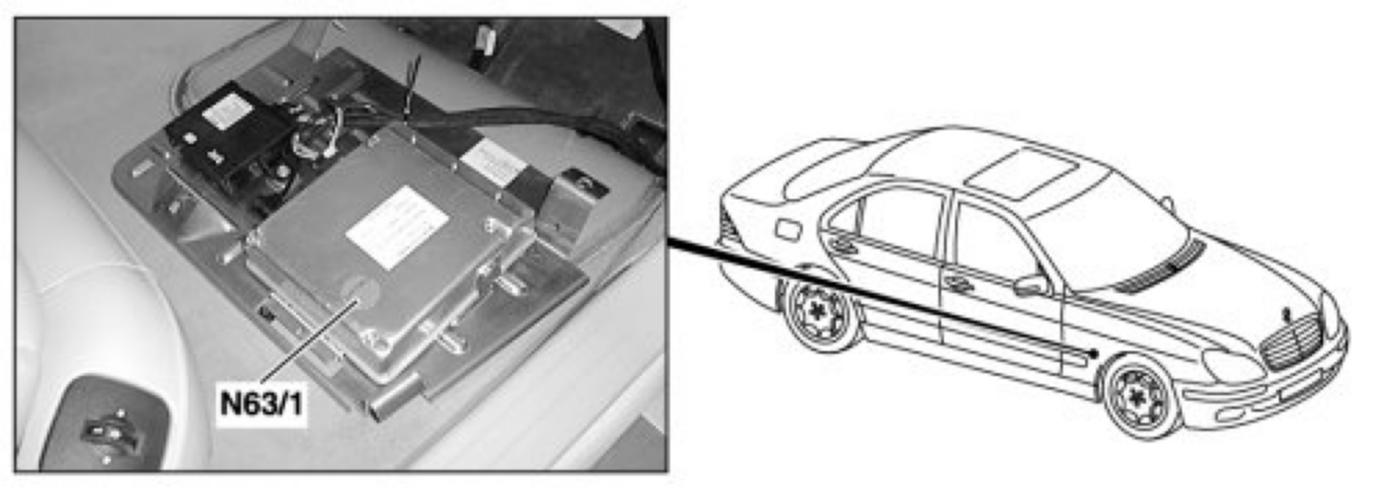

Shows model 220
N63/1 DTR control unit

Models 209, 215, 220, 230, 240:
Located in the front passenger footwell under the step plate at the front.

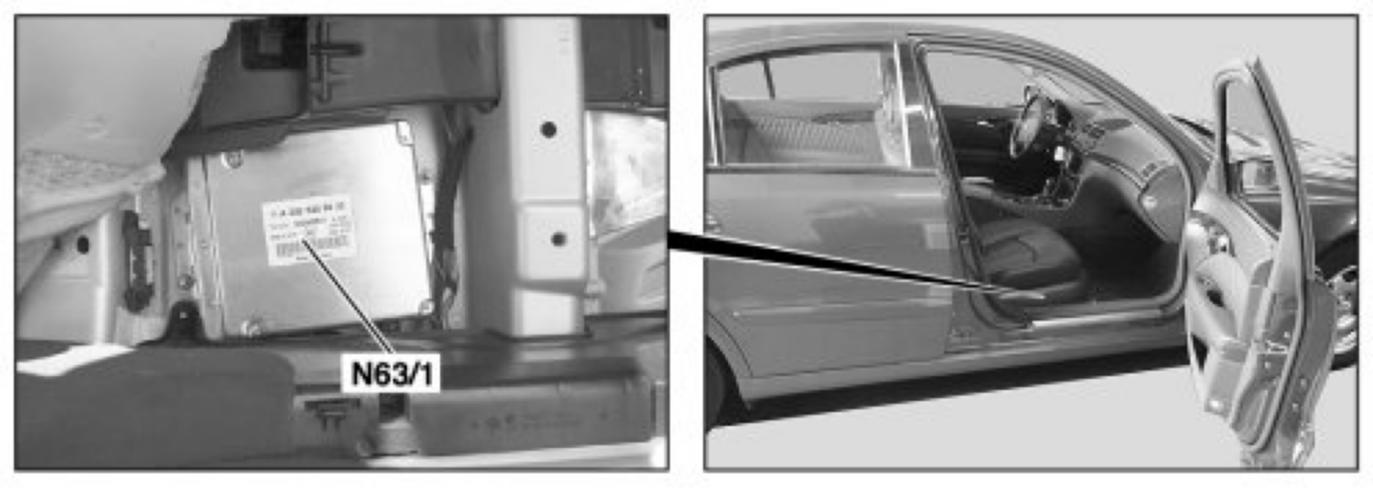

Shown in model 211
N63/1 DTR control unit

Mount under the front passenger seat on the floor panel.
