Crankshaft Position Sensor, Task




Crankshaft Position Sensor, Task

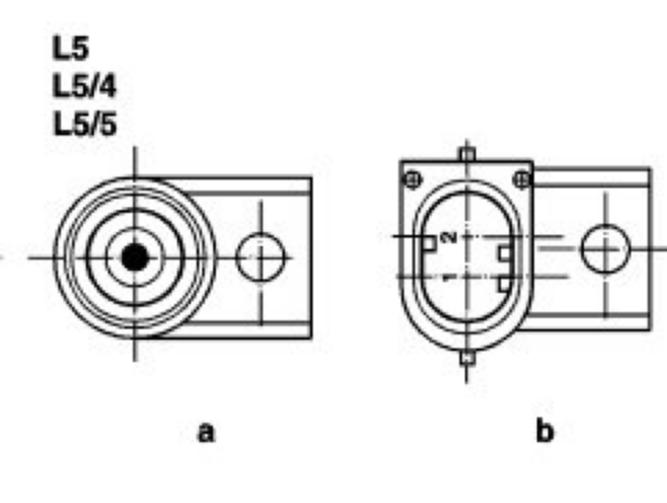

L5 Crankshaft position sensor
L5/4 Left crankshaft position sensor (engine 120)
L5/5 Right crankshaft position sensor (engine 120)
a with 2-pin coax-plug contact
b with 2-pin flat connector

Detects the position of the crankshaft and the engine speed in a non-contact manner over the teeth of the drive plate
