Air Shutoff Valve, Location

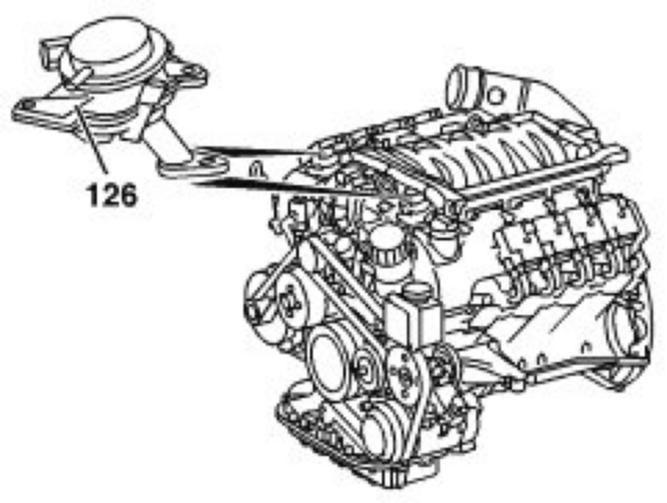

Air Shutoff Valve, Position




126 Air shutoff valve (one combination valve for each cylinder head with integrated check valve)
