Air Pump Switchover Valve, Task




Air Pump Switchover Valve, Task

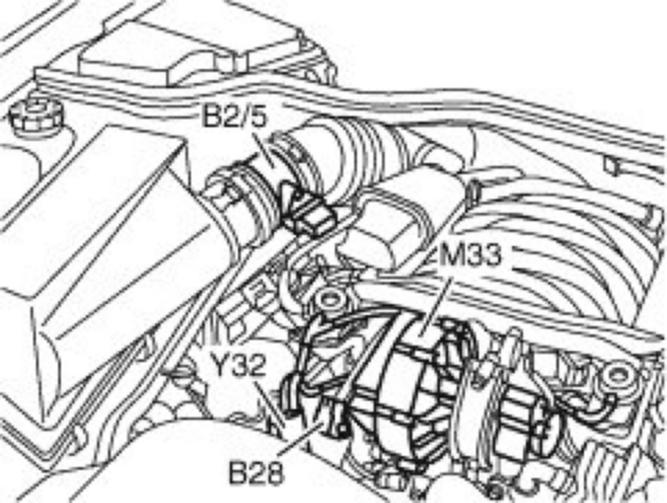

Shown on Engine 112
B2/5 Hot film mass air flow sensor with intake air temperature sensor
B28 Pressure sensor
M33 AIR pump
Y32 Air pump switchover valve

Actuating the aspirator shutoff valve with vacuum from intake manifold when air injection is enabled.
