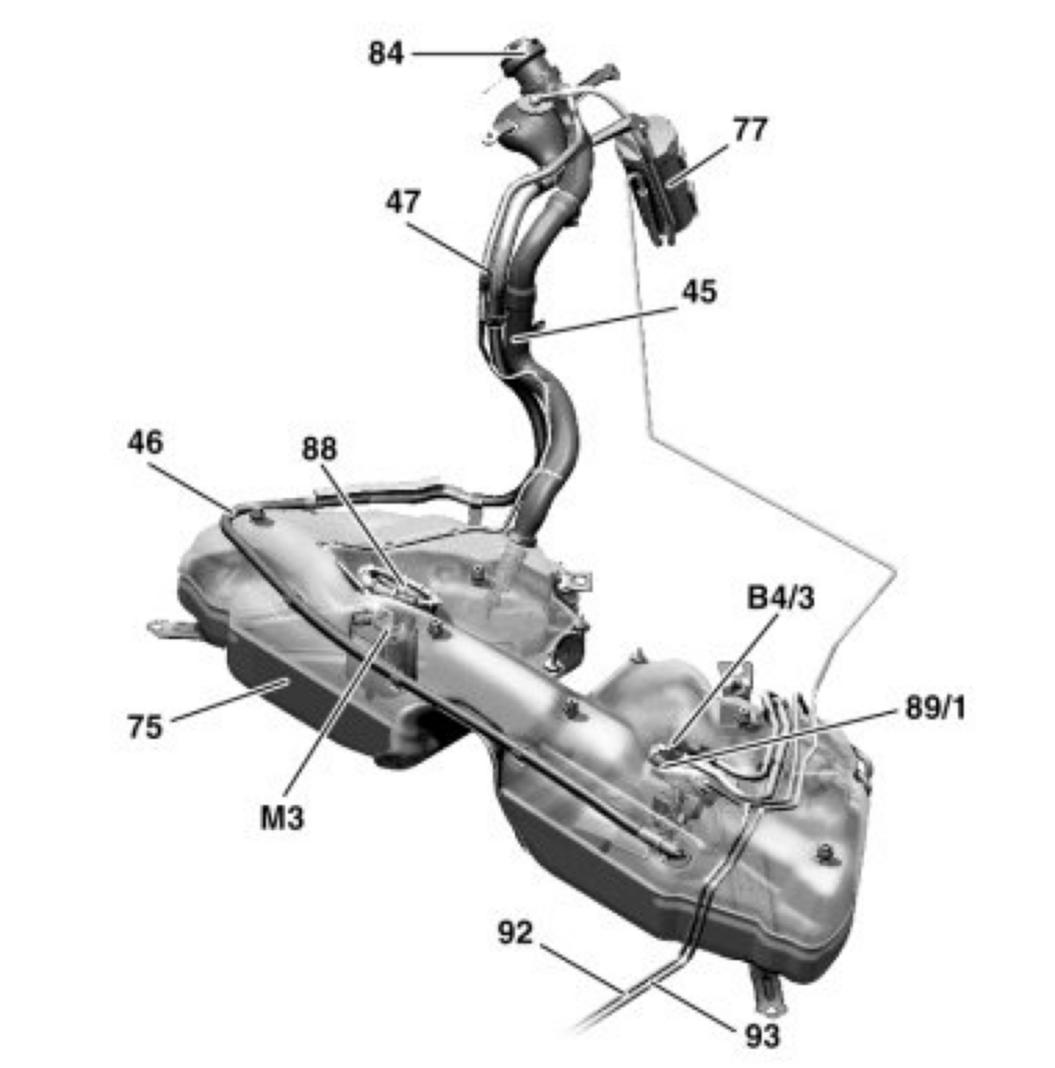

Activated Charcoal Canister, Location

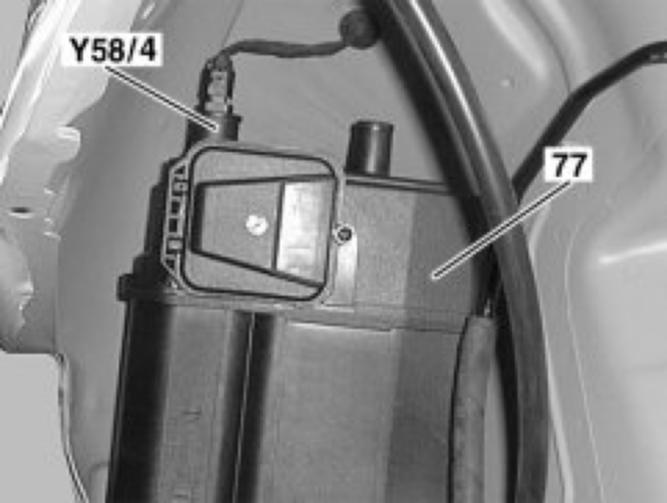

Activated Charcoal Canister, Position




45 Filler neck
46 Fuel tank air admission line
47 Fuel line (shuts off nozzle when refueling)
75 Fuel tank
77 Activated charcoal canister
84 Cap
88 Fuel delivery module
89/1 Left closing plate
92 Fuel pressure line to the engine
93 Purge line to purge control valve
B4/3 Fuel tank pressure sensor (USA)
M3 Fuel pump (FP)




77 Activated charcoal canister
Y58/4 Activated charcoal filter shutoff valve
