OBD - Connector

Connector

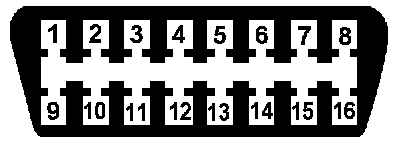

OBD - Connector, J1962:




Pin Description
1 Manufacturer specific
2 J1850 bus+
3 Manufacturer specific
4 Chassis ground
5 Electronic ground
6 CAN high (J-2284)
7 ISO 9141-2 K output
8 Manufacturer specific
9 Manufacturer specific
10 J1850 bus
11 Manufacturer specific
12 Manufacturer specific
13 Manufacturer specific
14 CAN low (J-2284)
15 ISO 9141-2 L output
16 Battery voltage
