Computer/Controls - DAS/XD 2009-10-05-1274

DAS/XD ADD-ON 2009-10-05-1274 FOR PASSENGER CARS

Topic number LI58.40-P-048527

Version 1

Design group 58.40 Workshop equipment/MB testers

Date 11-25-2009

Validity DVD version 09/2009

Reason for change

Reason for block

Complaint:

ETC

Model series: 171, 203, 209, 211, 215, 219, 220, 230, 463

The new transmission control unit VGS3NAG2 could not previously be programmed.

CDI

Model series: 204, 207, 212

Control unit programming for hardware object numbers 651 901 26 00 and 651 901 25 00 reports: "No newer control unit software found". New software for actuation of piezo injectors.

Cause:

For all complaints: XD and DAS diagnostic data.

Remedy:

DAS/XD add-on 2009-10-05-1274 for passenger cars:

This add-on can be installed over DAS/XD version 09/2009.

This add-on does not supersede any other add-ons and must be additionally installed.

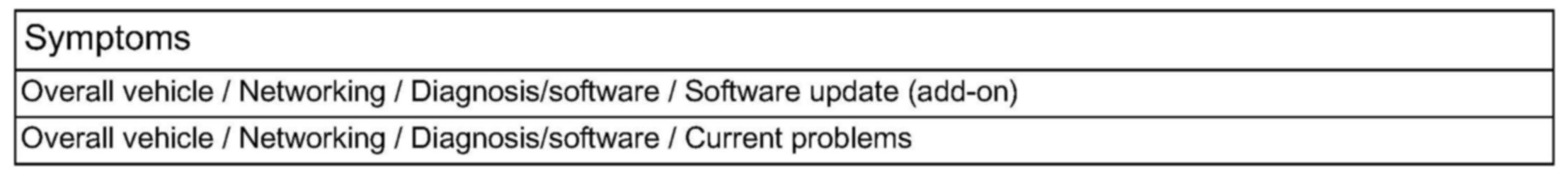

Symptoms

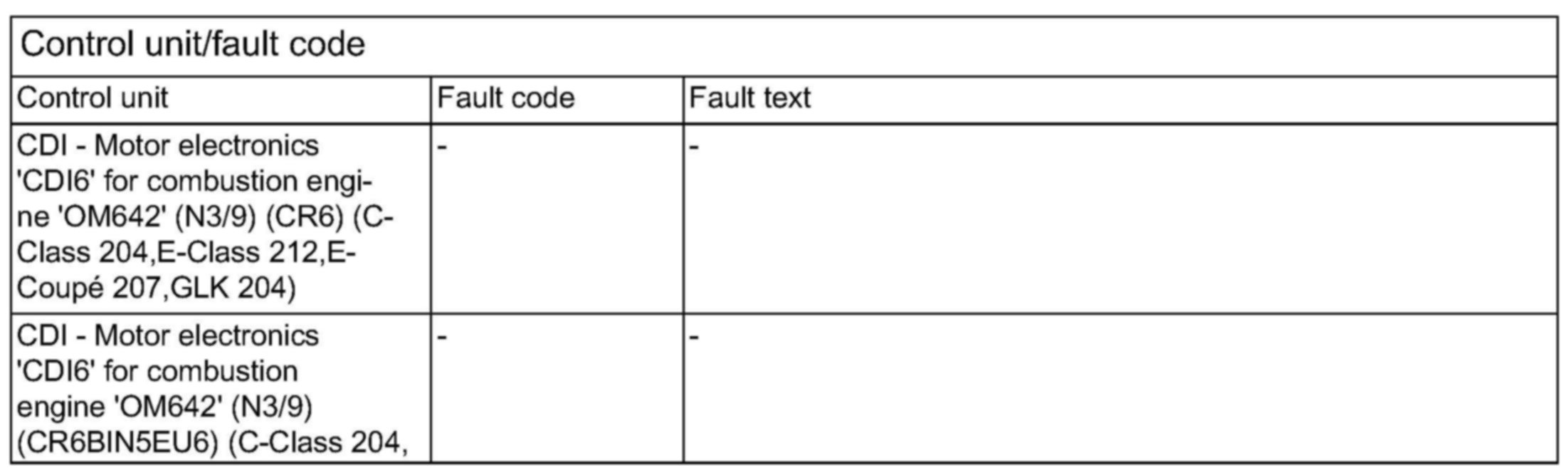

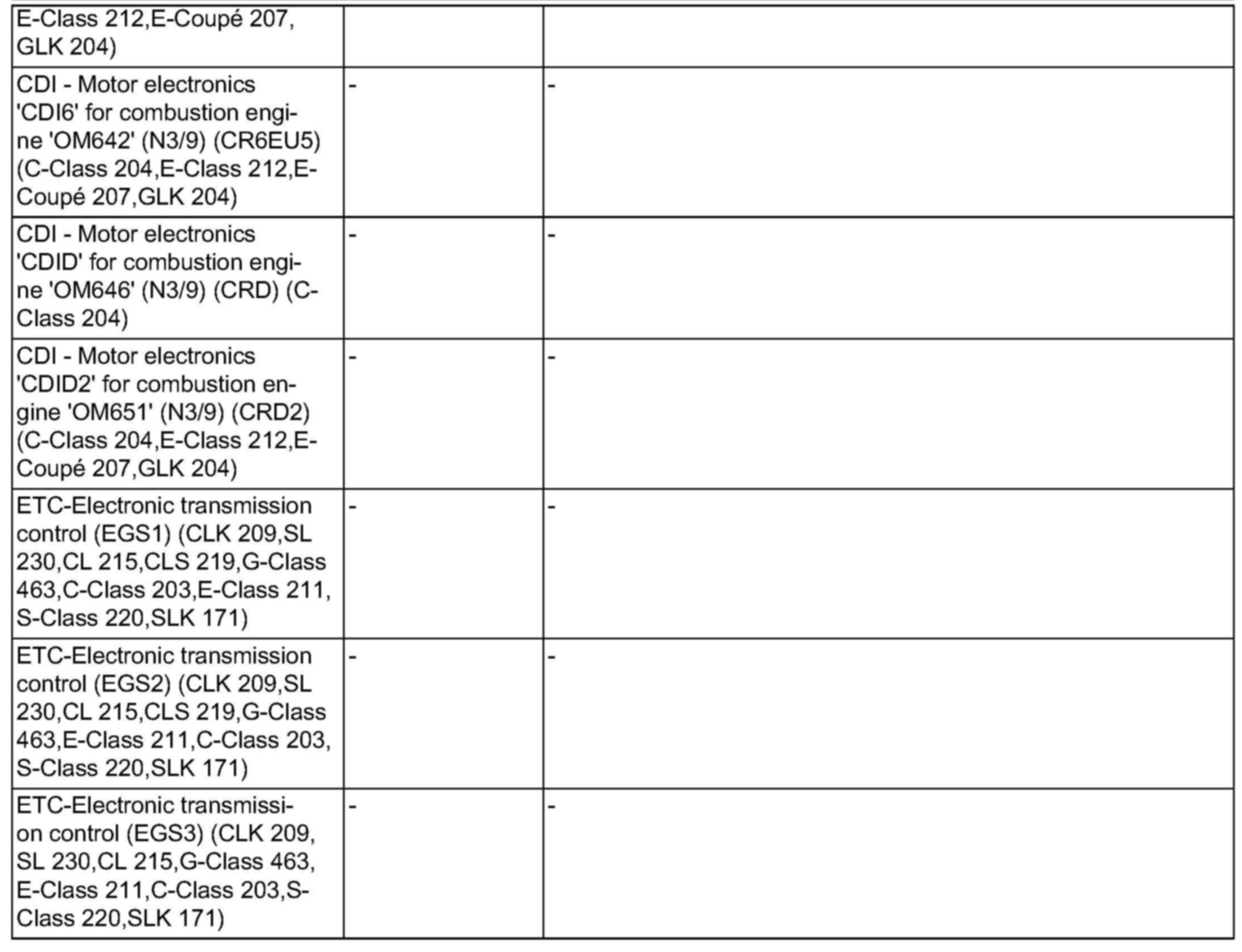

Control unit/fault code

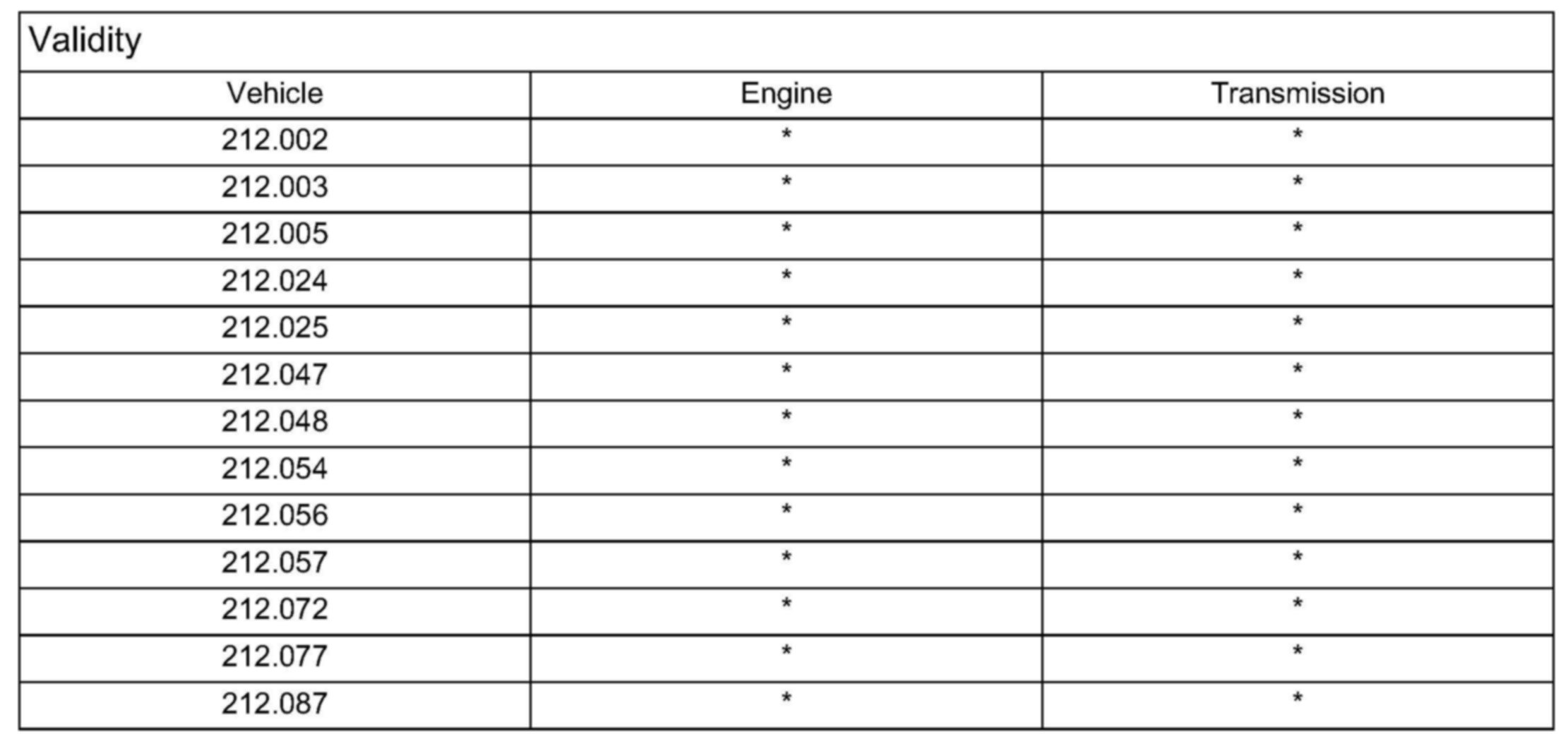

Validity
