Home
>>
Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Oxygen Sensor
>>
Description and Operation
>>

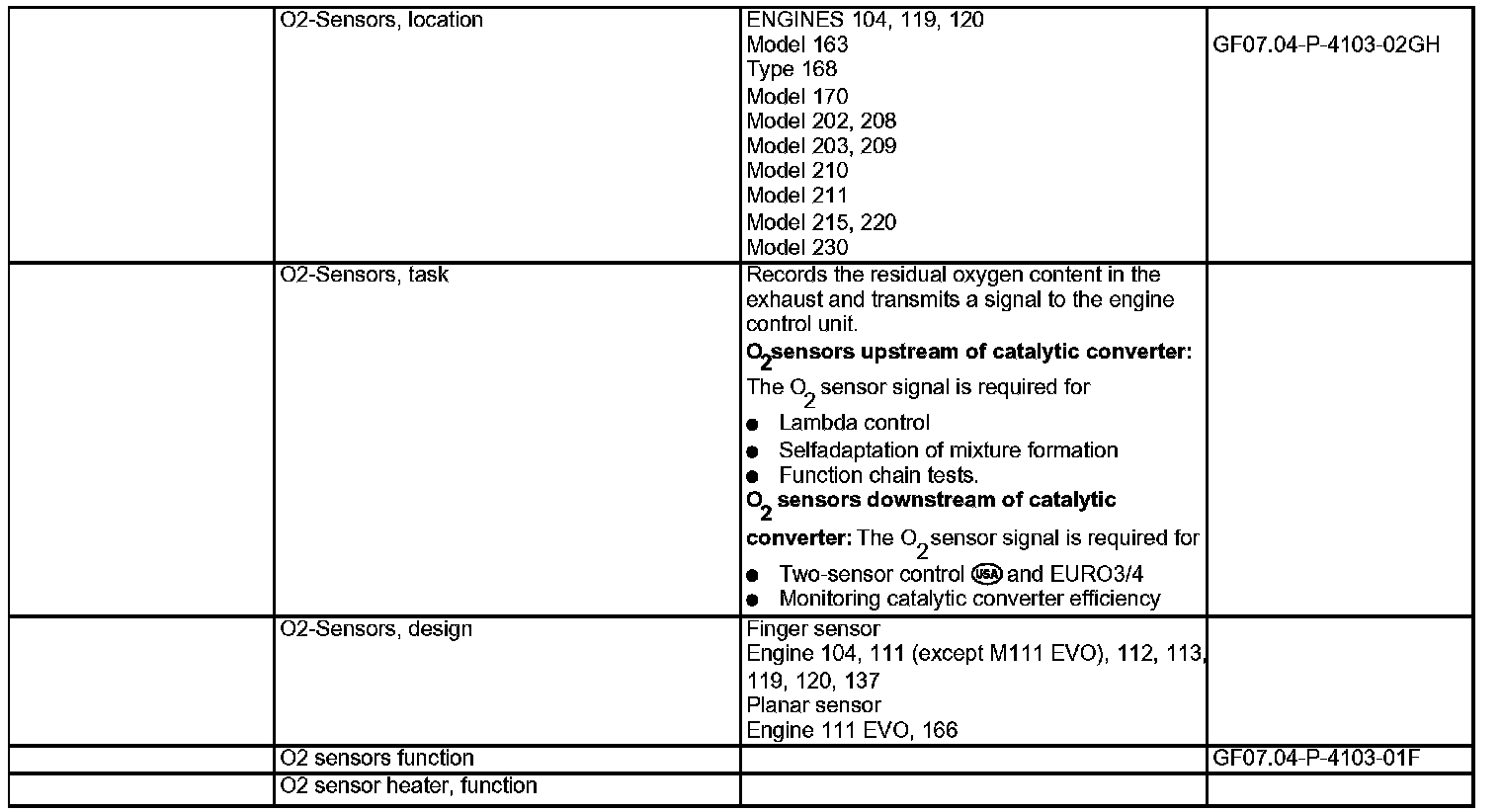

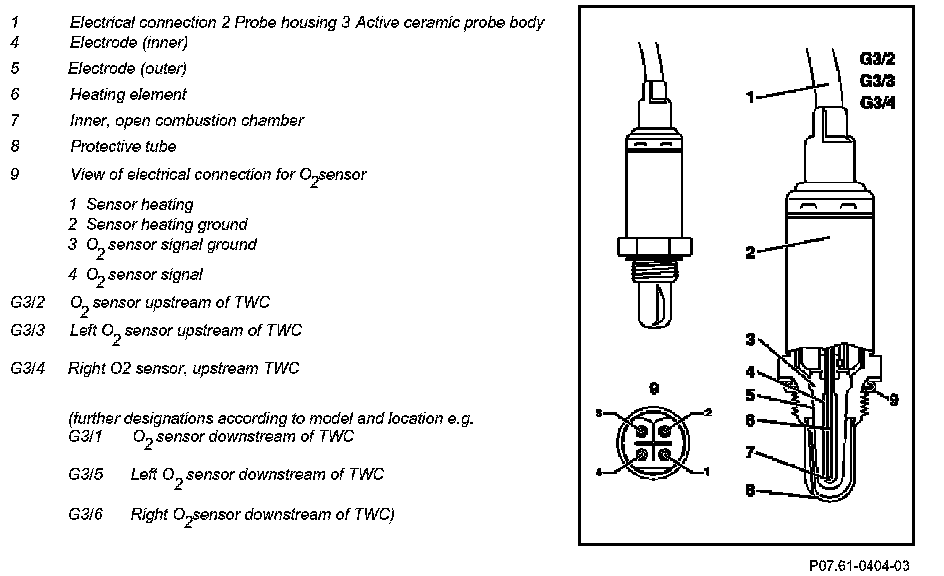

GF07.04-P-4103F O2 Sensors, Location/Task/Design/Function
GF07.04-P-4103F O2 Sensors, Location/Task/Design/Function
GF07.04-P-4103F O2 Sensors, Location/Task/Design/Function
