Fuel Level Sensor: Service and Repair

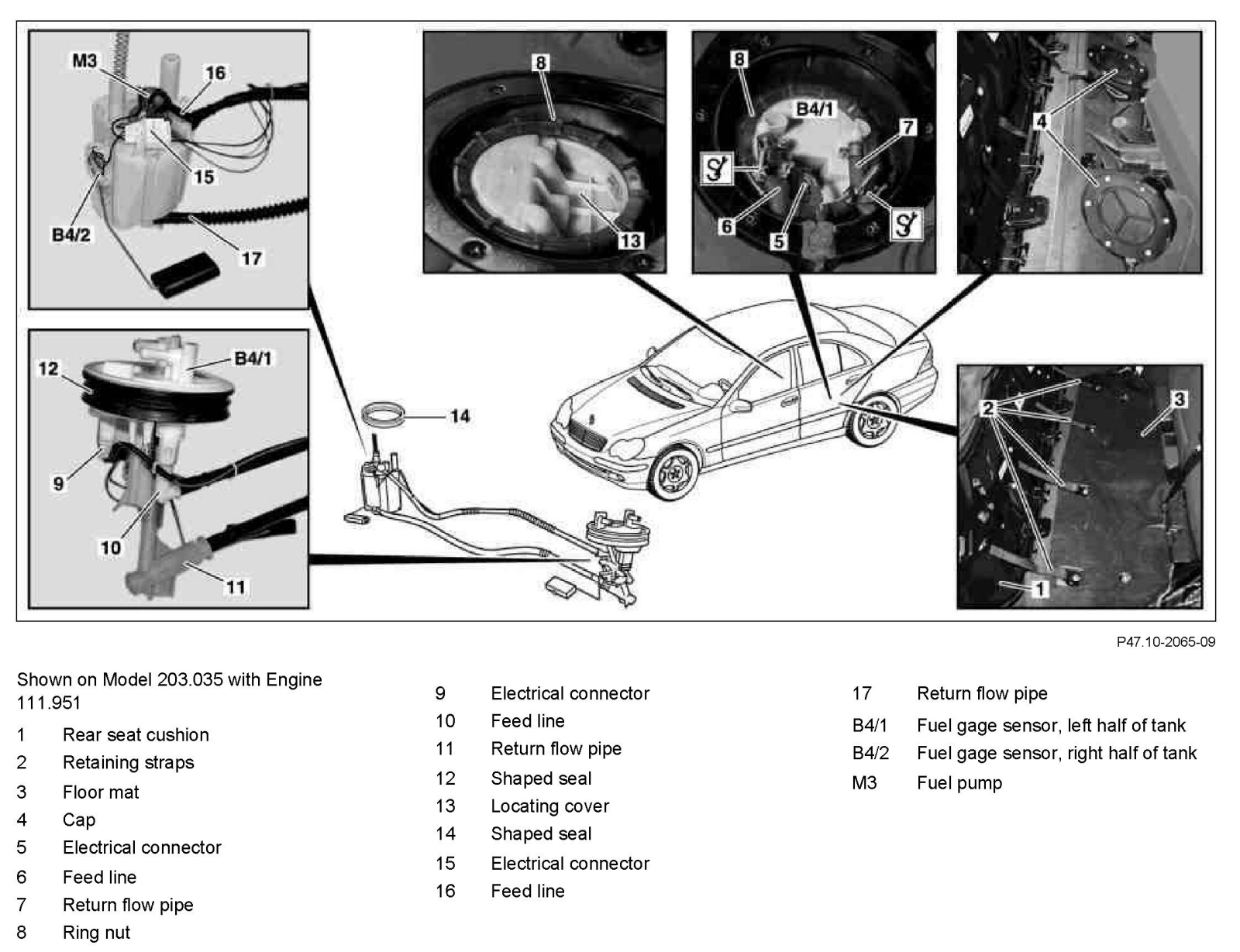

AR47.10-P-7000PR Remove/Install Fuel Level Sensor

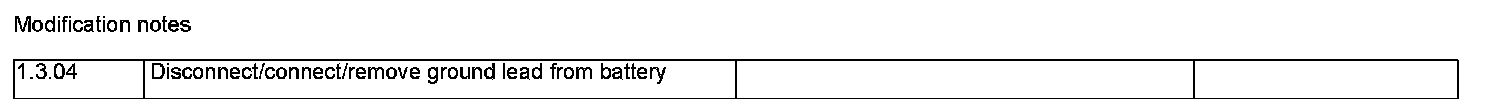

Modification Notes:

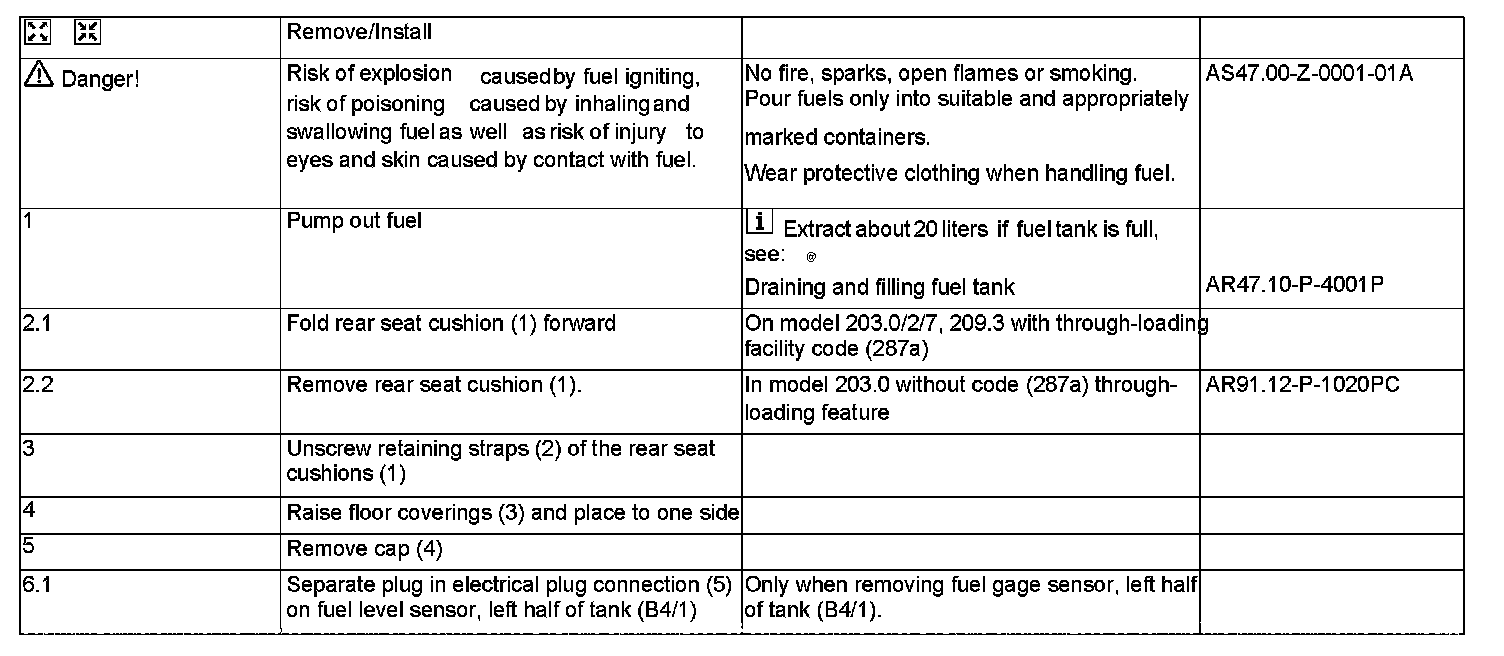

Part 1:

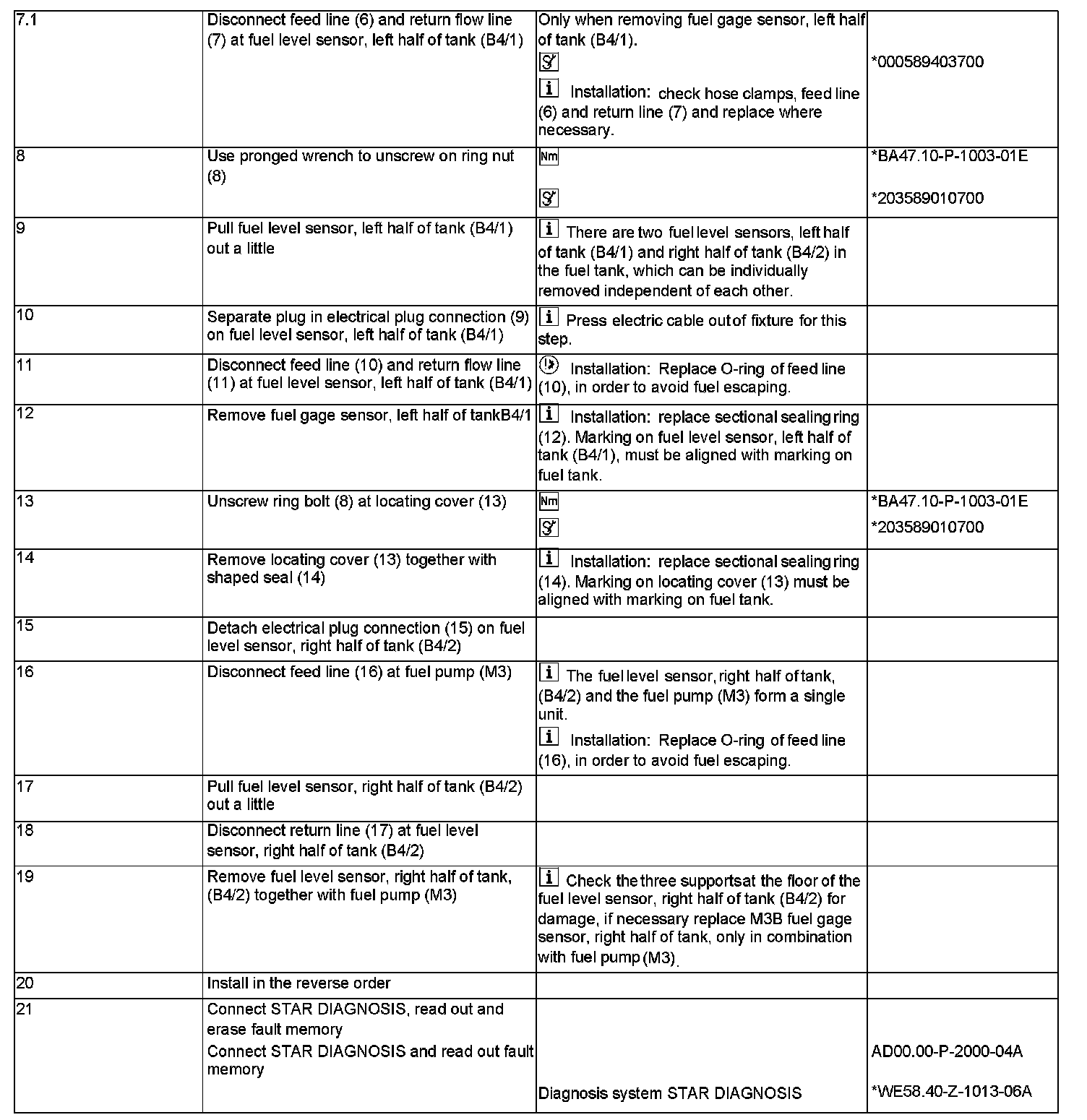

Part 2:

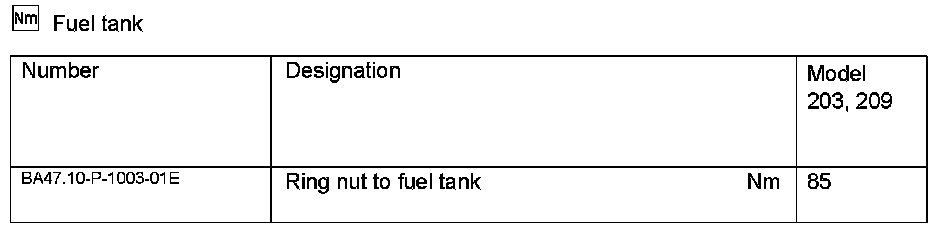

Fuel Tank:
