Crankshaft Hall Sensor



Crankshaft Hall Sensor

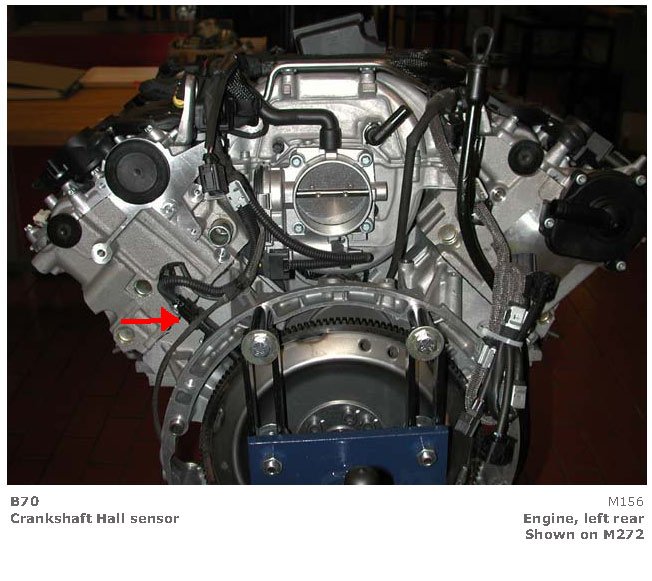

Crankshaft Hall Sensor (View 1):

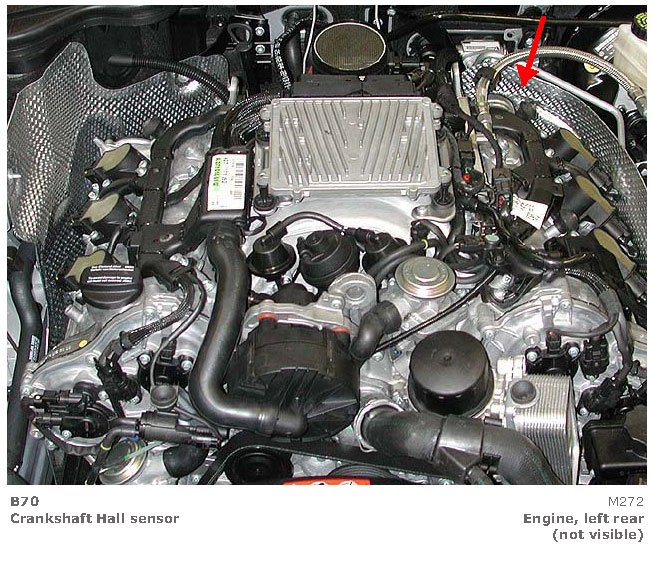

Crankshaft Hall Sensor (View 2):




Crankshaft Hall Sensor (View 3):

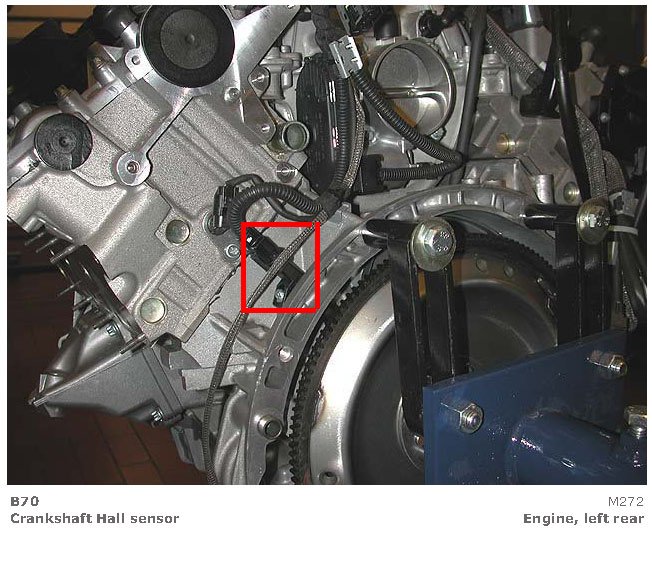

Crankshaft Hall Sensor (View 4):




Crankshaft Hall Sensor (View 5):
