Coolant Temperature Sensor/Switch (For Computer)
>>
Description and Operation
>>

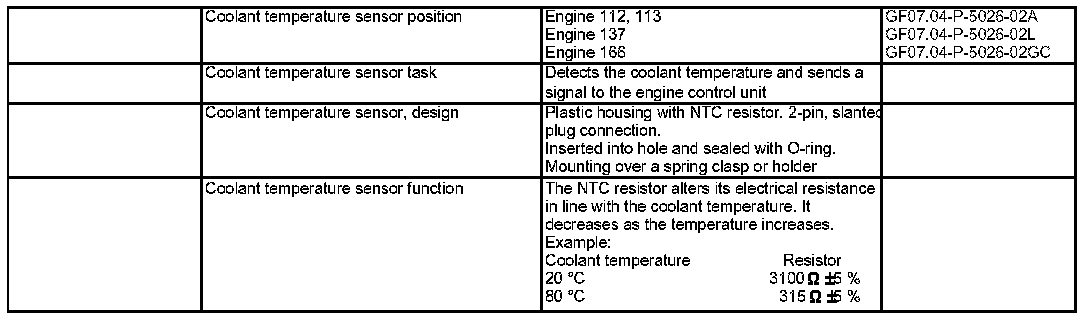

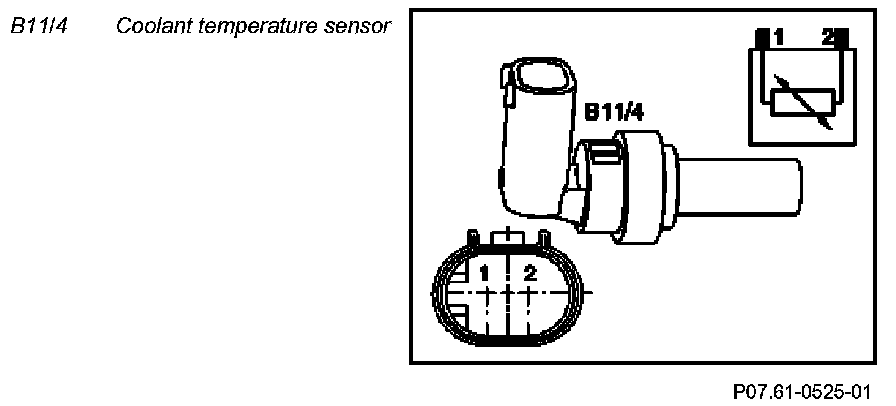

GF07.04-P-5026A Coolant Temperature Sensor, Location/Task/Design/Function
GF07.04-P-5026A Coolant Temperature Sensor, Location/Task/Design/Function
GF07.04-P-5026A Coolant Temperature Sensor, Location/Task/Design/Function
