Electronic Throttle Actuator: Service and Repair

AR30.20-P-1262A Remove/Install Electronic Accelerator Actuator With Flap Connection

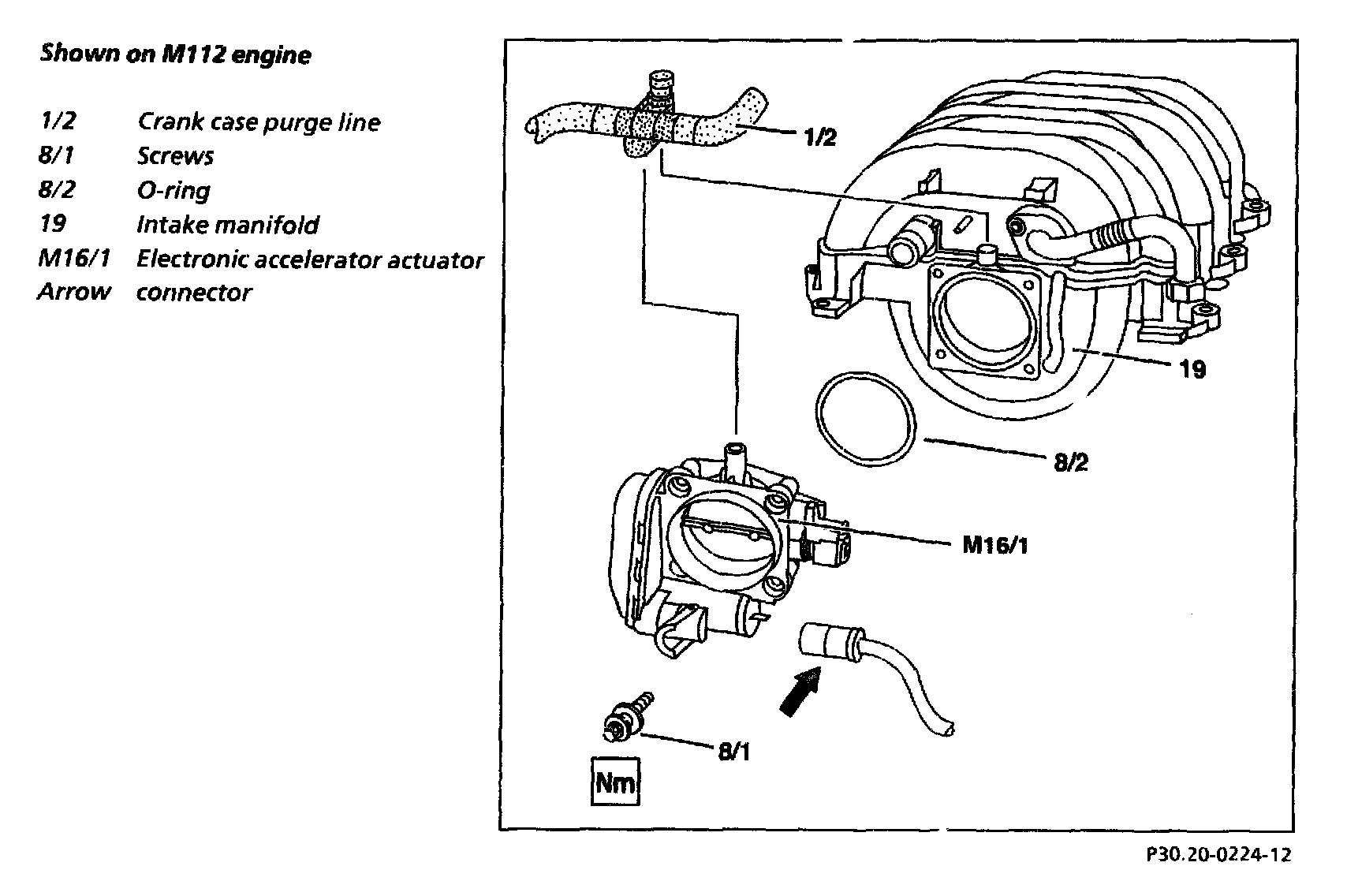

Shown On M112 Engine:

Removing, installing
1 Remove cylinder head cover trim or air filter

NOTE: Removal: Remove air filter housing or cylinder head cover trim by lifting upwards from the cylinder head covers.

Installation: Moisten the retaining rubber on the cylinder head covers and the hot film mass air flow sensor seal in the air cleaner housing lightly with lubricant.

2 Remove hot film mass air flow sensor together with air intake pipe

3 Remove crank case purge line (1/2)
4 Disconnect electrical connector (arrow)

NOTE: Pull catch backwards.

5 Remove electronic accelerator pedal actuator (M16/1)

NOTE: Undo screws (8/1).

CAUTION: Installation: Replace O-ring (8/2).

Refer to Electronic Accelerator Pedal Actuator below

6 Install in the reverse order

Electronic Throttle Actuator: Service and Repair

Shown On M112 Engine:

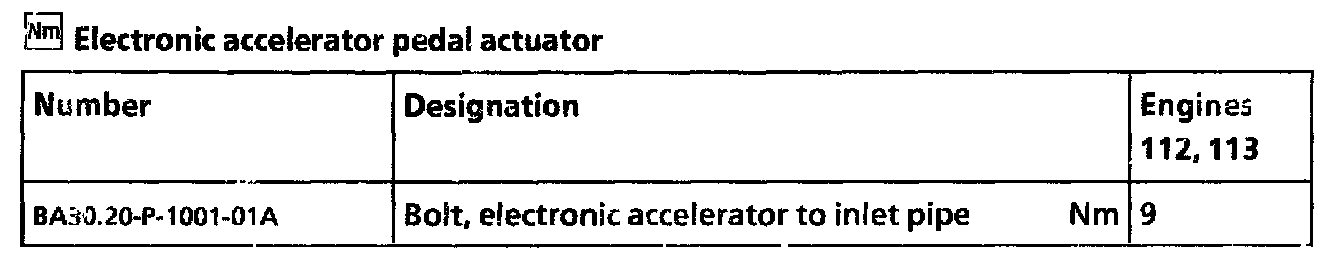

Electronic Accelerator Pedal Actuator:
