GF54.15-P-1256-01Q Fuse Assignment of Rear Fuse and Relay Box
GF54.15-P-1256-01Q Fuse Assignment of Rear Fuse and Relay Box
GF54.15-P-1256-01Q Fuse Assignment Of Rear Fuse And Relay Box

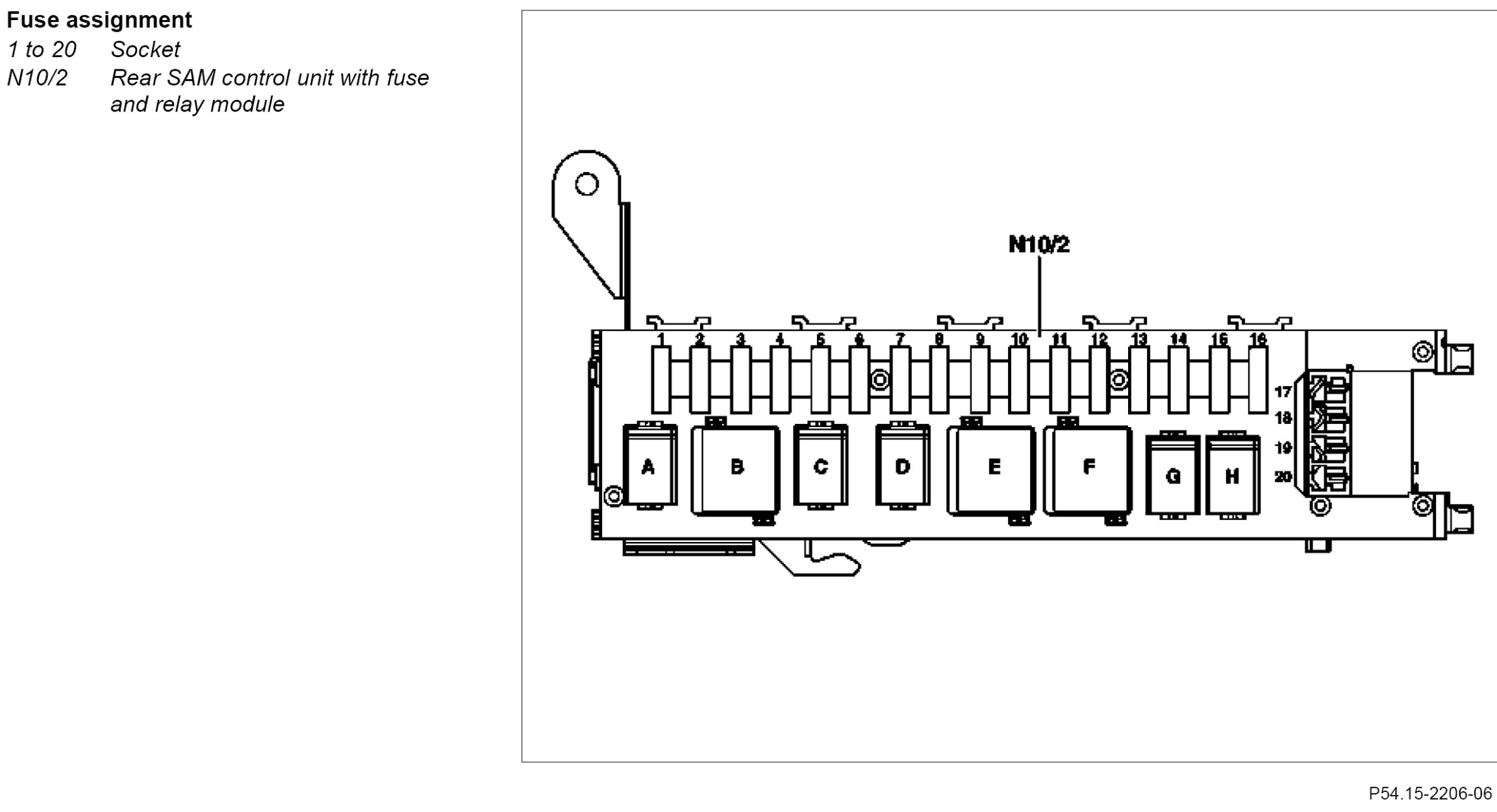

Component Identification:

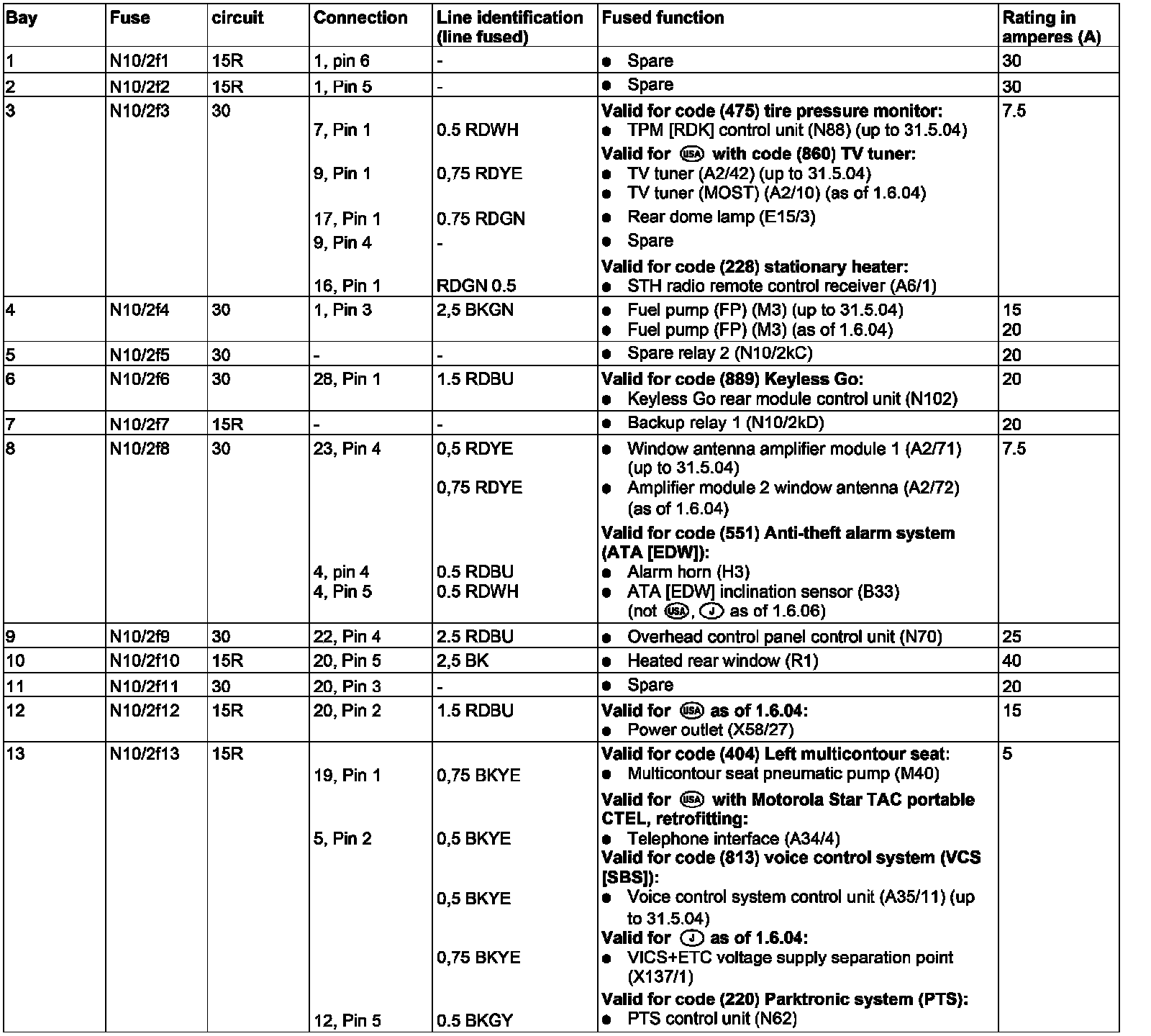

Steps 1-13:

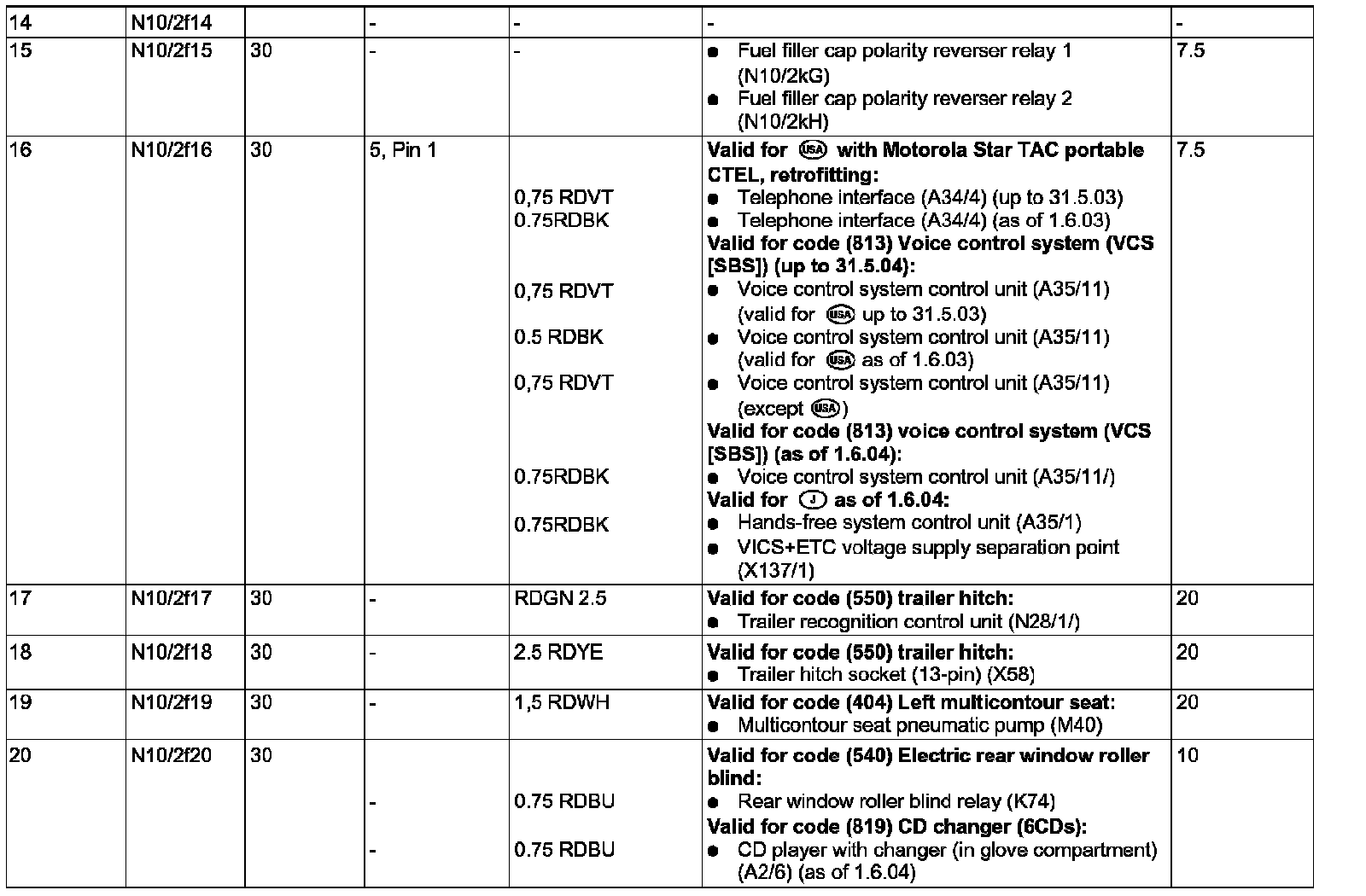

Steps 14-20:
