Turn Signal Lamp: Service and Repair

AR82.25-P-4726Q Remove/Install Additional Turn Signal Lamp







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

1 Disconnect ground cable of battery

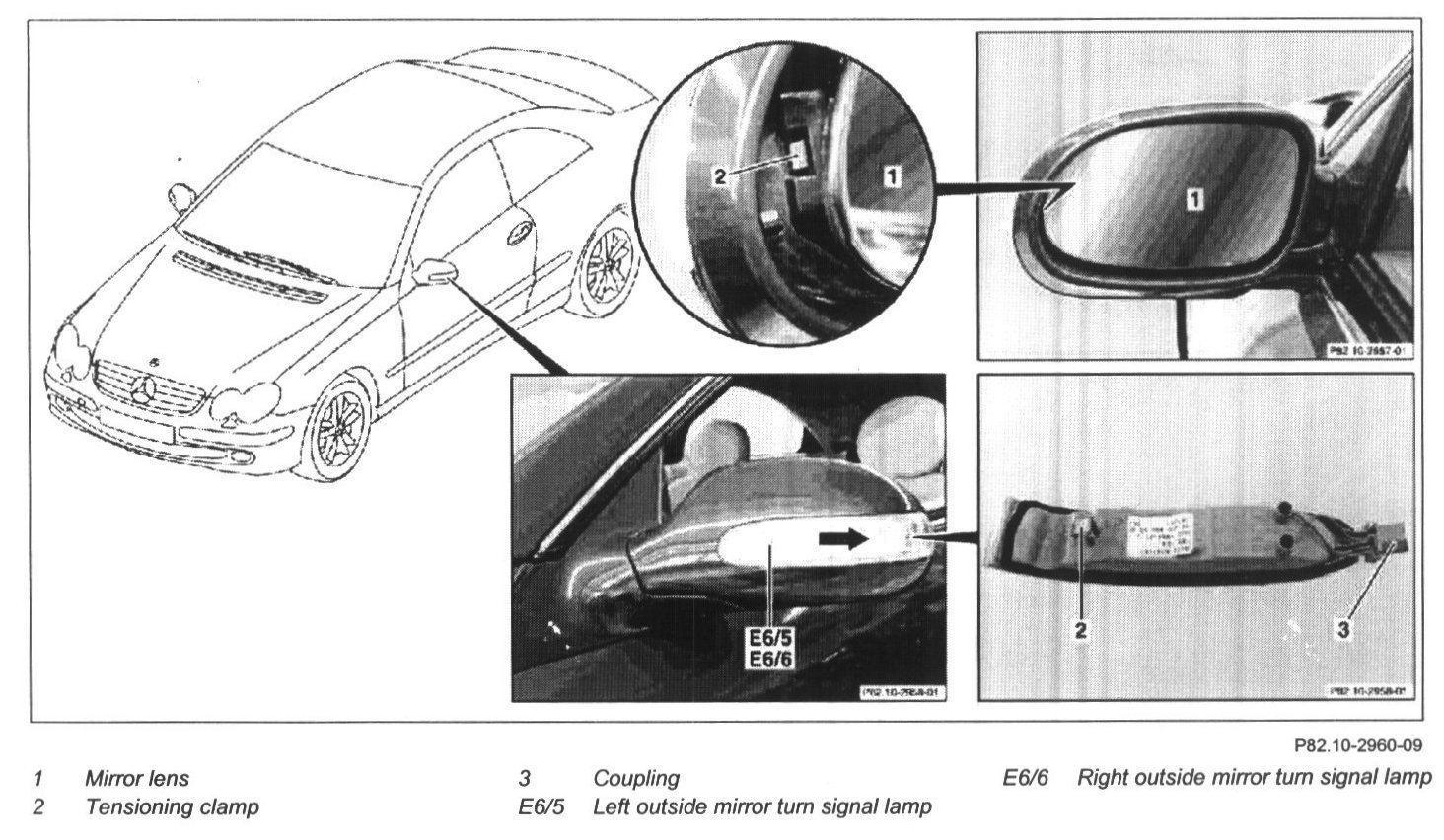

2 Swivel outside rearview mirror lens (1) as far back as possible
3 Push retaining clip (2) to release
4 Push left (E6/5) and right (E6/6) outside rearview mirror turn signal lamps outward and remove

CAUTION!
Do not swivel outside rearview mirror turn signal lamp. Risk of breaking at coupling (3).

5 Install in the reverse order
6 Perform basic programming
7 Read diagnostic trouble code memory and erase
8 Perform function check
