Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Description and Operation
Trunk Lamp: Description and Operation

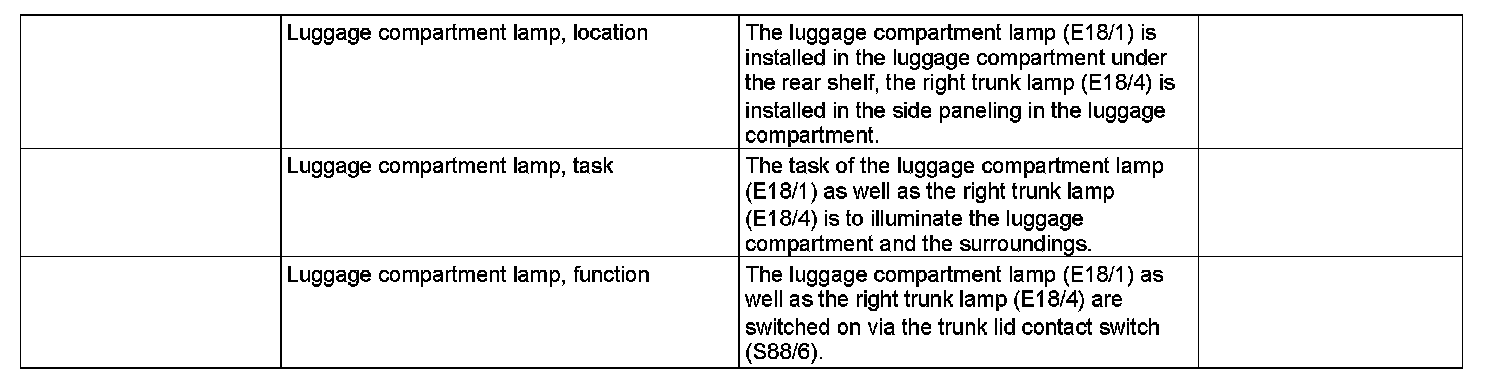

GF82.20-P-4003Q Luggage Compartment Lamp, Location/Task/Function

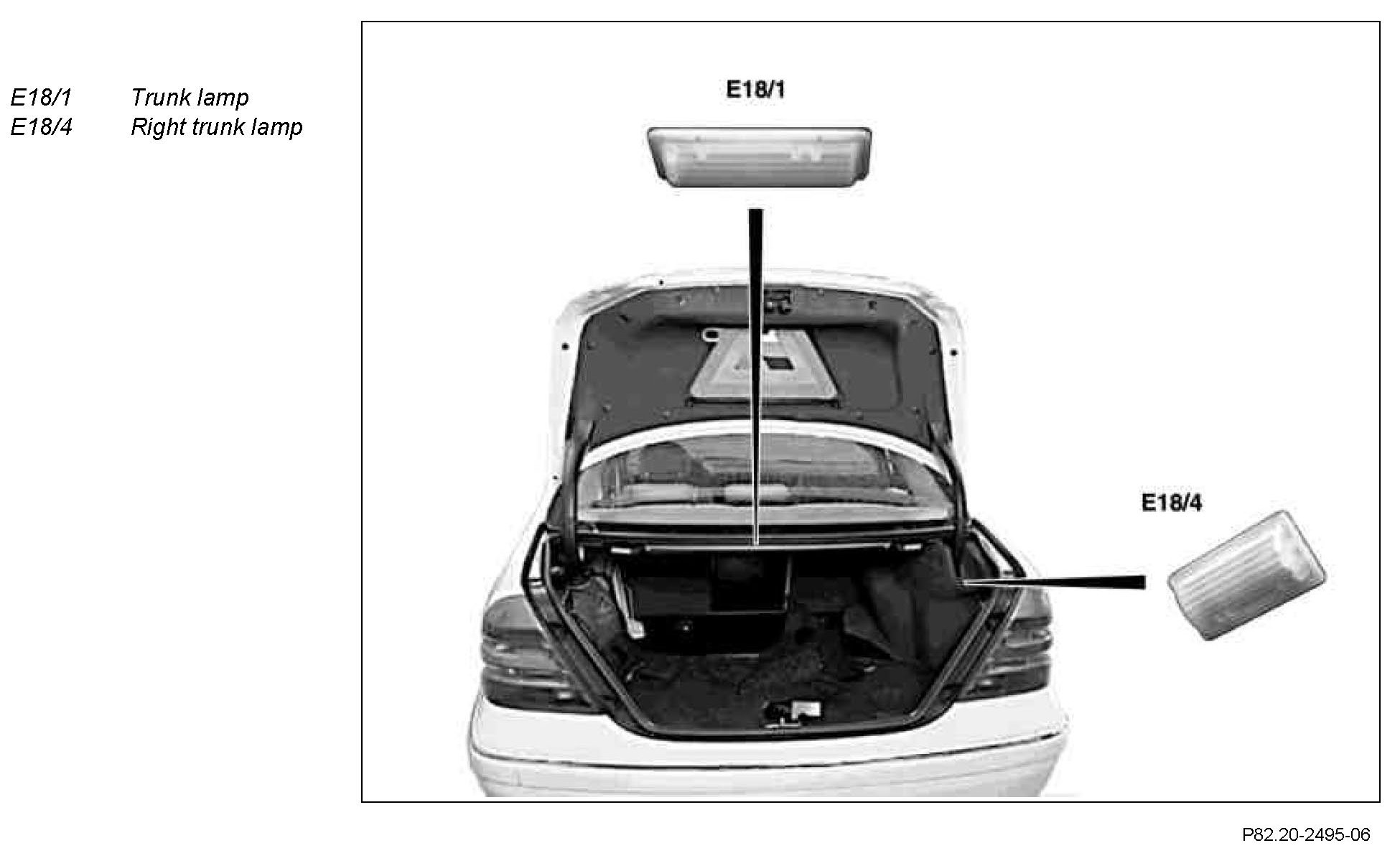

Component Identification:
