AR82.10-P-4081P Remove/Install Headlight Beam Adjustment Control Module

AR82.10-P-4081P Remove/Install Headlight Beam Adjustment Control Module
- with CODE (612b) Xenon headlamp unit
- with CODE (614) Bi-Xenon headlamp unit

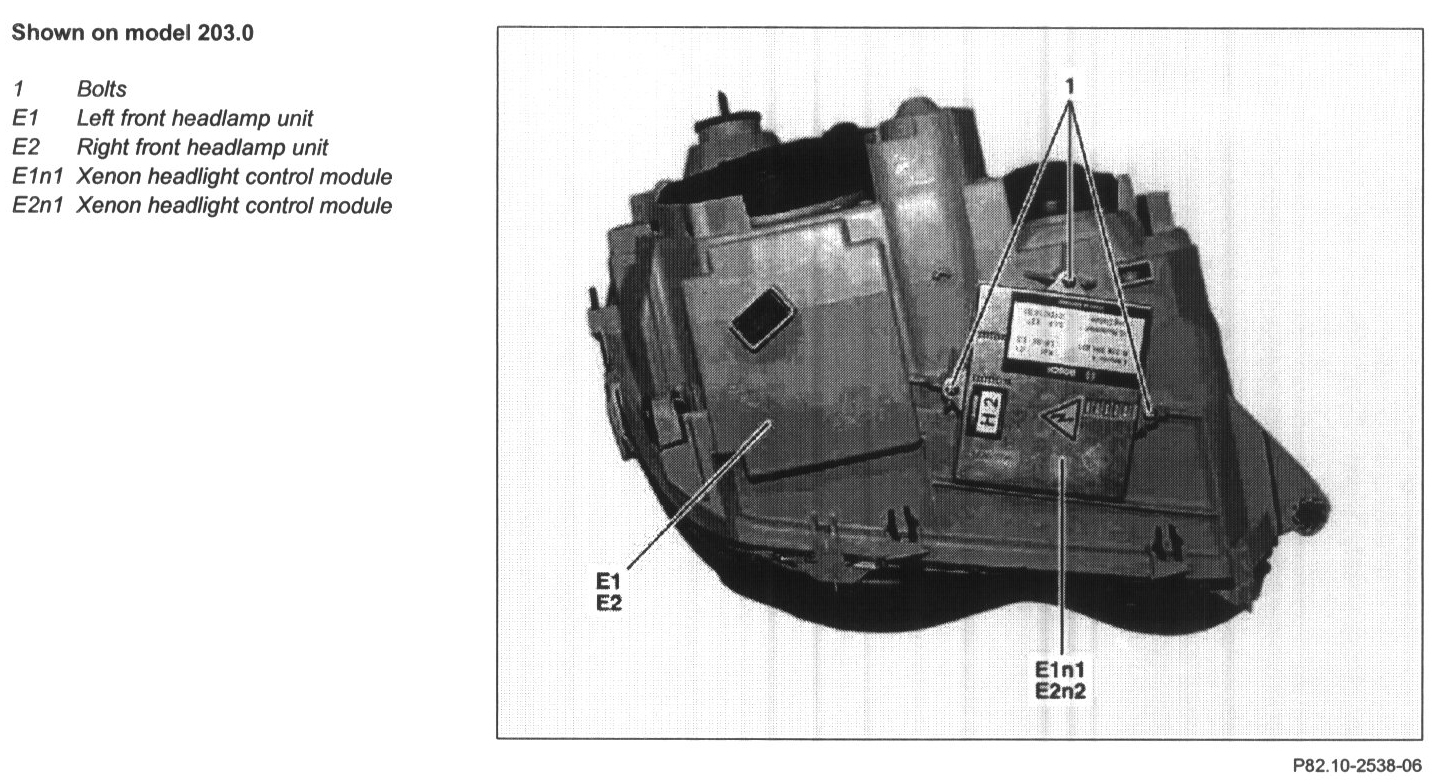

Shown On Model 203.0:

DANGER:
Lethal hazard from high voltage on xenon headlamps
- Do not touch parts which conduct high voltages. Persons with active electronic implants (e.g. heart pacemakers) should never work on xenon headlamps.

1 Remove headlamp unit (E1, E2)
2 Unscrew screws (2)
3 Take off xenon headlamp control module (E1n1, E2n1)
4 Install in the reverse order
