AR82.10-P-4013Q Remove/Install Power Module of Headlamp Range Adjustment (HRA [LWR])



AR82.10-P-4013Q Remove/Install Power Module of Headlamp Range Adjustment (HRA [LWR])
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination
- without CODE (P98) Black Series

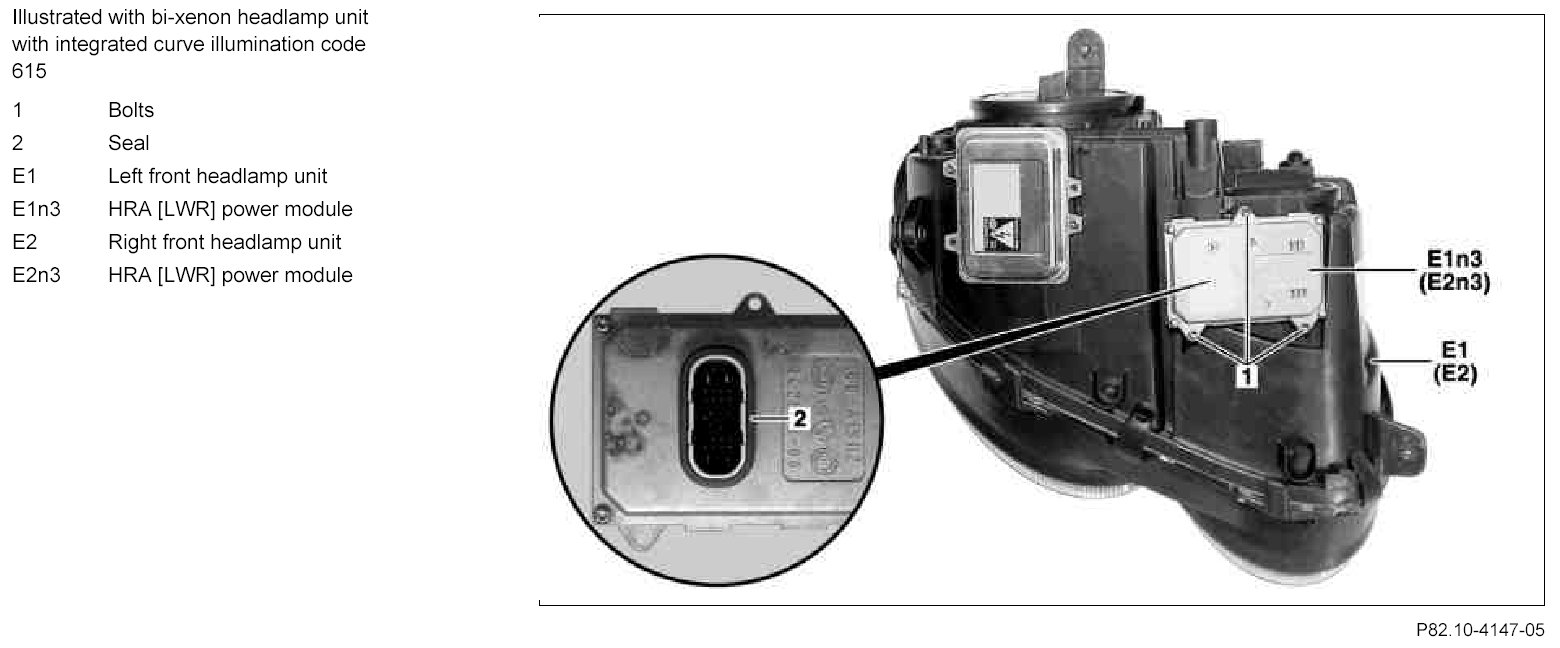

Component Identification:

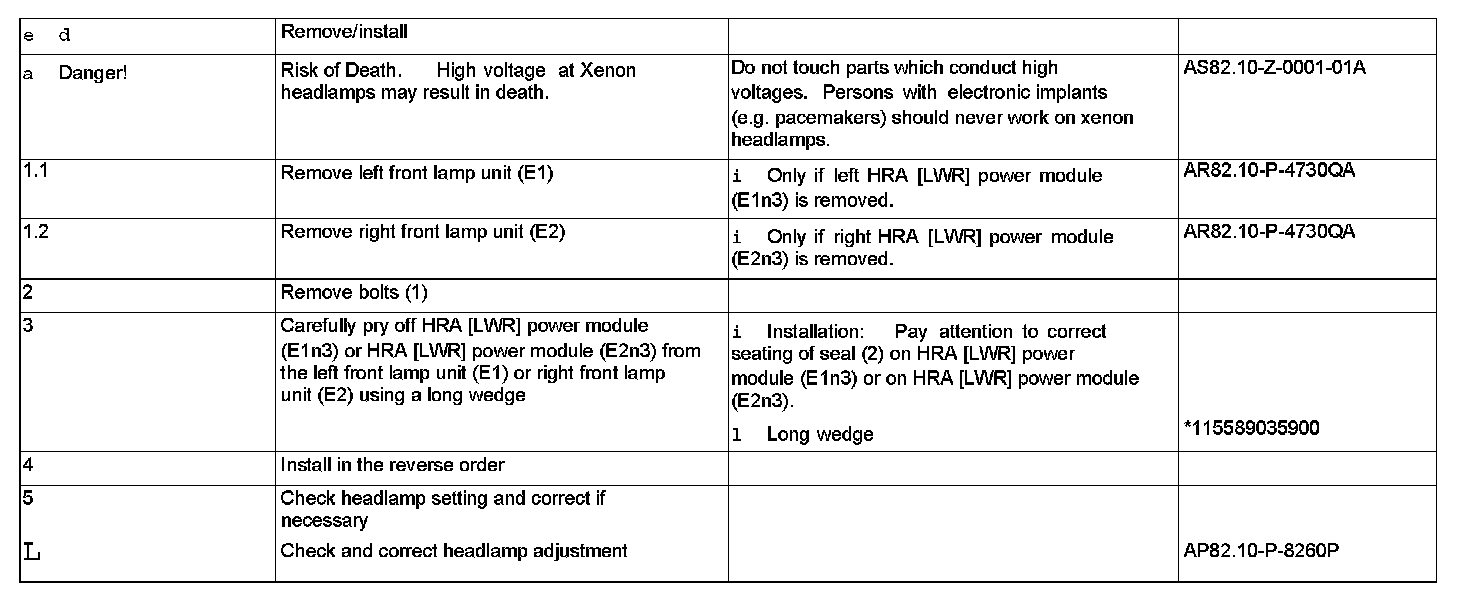

Steps 1.1 - 5:

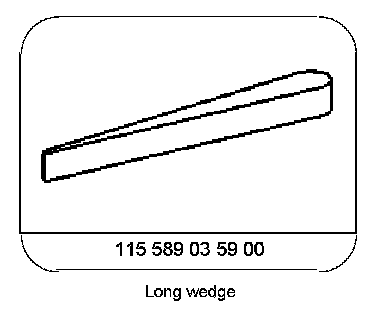

Special Tools:
