FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2003
>>
CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Service and Repair
>>
Removal and Replacement
>>

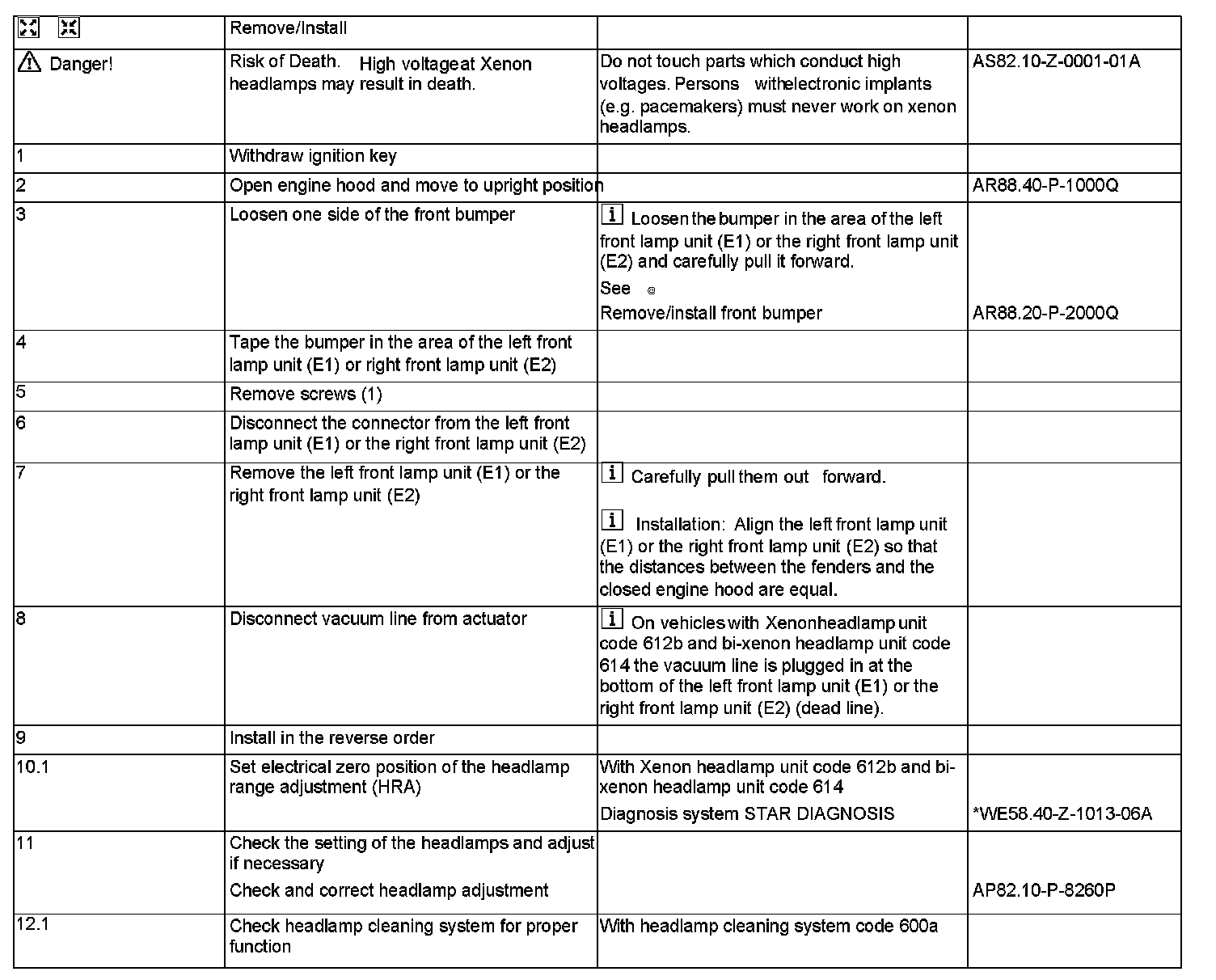

AR82.10-P-4730QA Remove/Install Lamp Unit
AR82.10-P-4730QA Remove/Install Lamp Unit
AR82.10-P-4730QA Remove/Install Lamp Unit

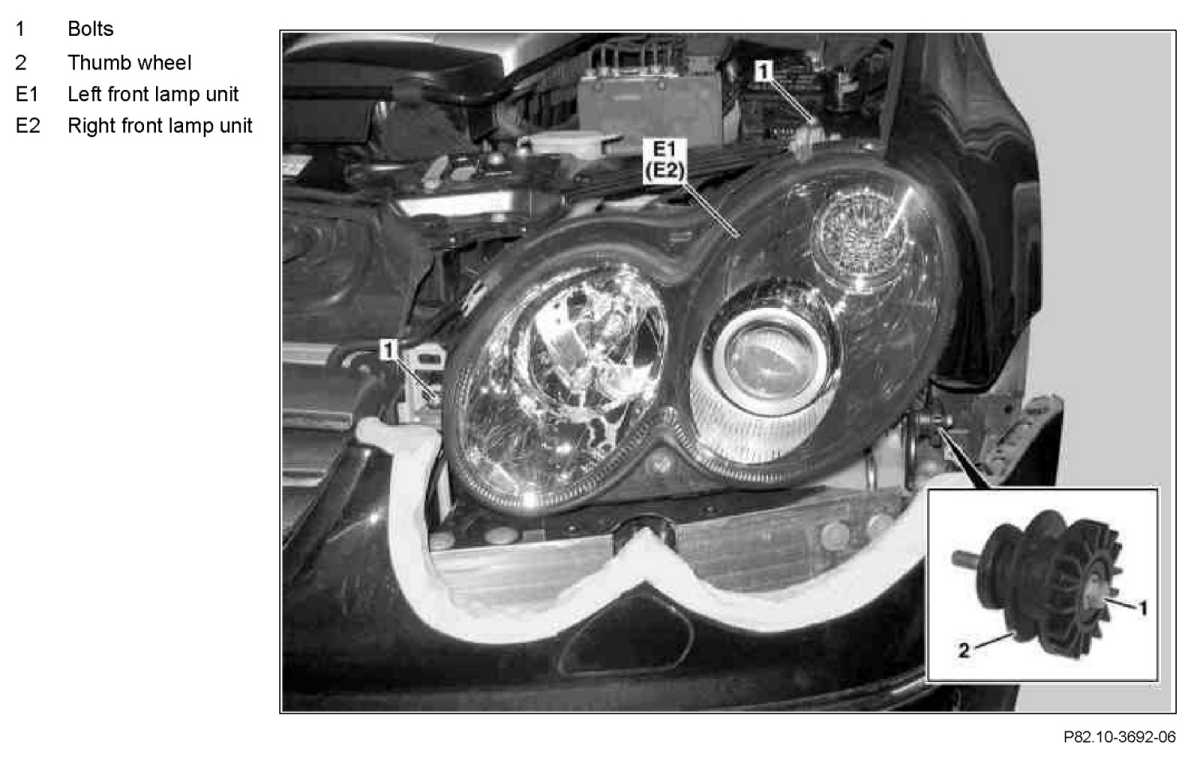

- Removal of a lamp unit
